THK SRG-GR/GLR/GSLR Full Roller LM Guide (Narrow, Size 45)

THK SRG-GR/GLR/GSLR Full Roller LM Guide (Narrow, Size 45)

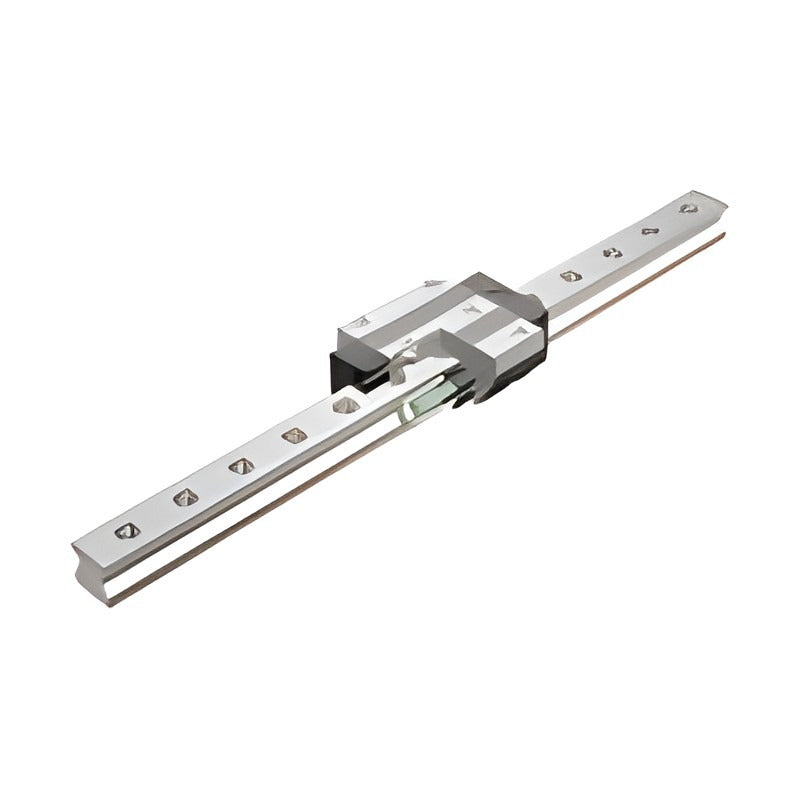

THK SRG45 full-complement roller LM guide with narrow blocks in standard, long and extra-long lengths for ultra-high rigidity machine axes.

Key features

  • Full-complement roller type (no roller retainer) of the same block and rail dimensions
  • Higher static load rating C0 than the retainer type; slightly lower dynamic rating C
  • Rollers with length at least 1.5x diameter give ultra-high rigidity
  • Four roller rows at 45 deg contact angle give equal load ratings in all four directions

Specifications

Size 45
Series SRG (ultra-high rigidity roller guide)
Rolling element Full-complement rollers
Contact structure 4 rows, 45 deg, 4-way equal load
Preload options Normal, C1 (light), C0 (medium)
Accuracy options H, P, SP, UP (normal grade not offered)
Dynamic rating basis C at 100 km rated life (C50 = 1.23 x C)
Other options (describe) QZ, plate cover, tapped rail, caps, JSRG
Rail standard max length 3090 mm
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 418-441
SRG45GR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45GLR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45GSLR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45GR UU H Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU P Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU SP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU UP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 H Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 P Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 SP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 UP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 H Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 P Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 SP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 UP Block: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS H Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS P Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS SP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS UP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 H Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 P Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 SP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 UP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 H Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 P Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 SP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 UP Block: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD H Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD P Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD SP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD UP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 H Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 P Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 SP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 UP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 H Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 P Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 SP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 UP Block: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ H Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ P Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ SP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ UP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 H Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 P Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 SP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 UP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 H Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 P Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 SP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 UP Block: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK H Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK P Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK SP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK UP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 H Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 P Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 SP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 UP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 H Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 P Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 SP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 UP Block: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH H Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH P Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH SP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH UP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 H Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 P Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 SP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 UP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 H Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 P Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 SP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 UP Block: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH H Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH P Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH SP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH UP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 H Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 P Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 SP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 UP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 H Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 P Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 SP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 UP Block: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH H Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH P Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH SP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH UP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 H Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 P Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 SP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 UP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 H Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 P Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 SP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 UP Block: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH H Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH P Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH SP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH UP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 H Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 P Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 SP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 UP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 H Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 P Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 SP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 UP Block: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH H Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH P Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH SP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH UP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 H Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 P Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 SP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 UP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 H Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 P Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 SP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 UP Block: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH H Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH P Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH SP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH UP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 H Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 P Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 SP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 UP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 H Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 P Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 SP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 UP Block: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY H Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY P Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY SP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY UP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 H Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 P Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 SP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 UP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 H Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 P Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 SP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 UP Block: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY H Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY P Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY SP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY UP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 H Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 P Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 SP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 UP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 H Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 P Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 SP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 UP Block: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY H Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY P Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY SP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY UP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 H Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 P Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 SP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 UP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 H Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 P Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 SP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 UP Block: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY H Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY P Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY SP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY UP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 H Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 P Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 SP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 UP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 H Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 P Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 SP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 UP Block: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY H Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY P Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY SP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY UP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 H Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 P Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 SP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 UP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 H Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 P Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 SP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 UP Block: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY H Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY P Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY SP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY UP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 H Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 P Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 SP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 UP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 H Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 P Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 SP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 UP Block: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 H Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 P Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 SP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 UP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 H Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 P Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 SP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 UP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 H Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 P Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 SP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 UP Block: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 H Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 P Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 SP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 UP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 H Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 P Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 SP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 UP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 H Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 P Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 SP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 UP Block: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 H Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 P Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 SP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 UP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 H Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 P Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 SP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 UP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 H Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 P Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 SP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 UP Block: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 H Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 P Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 SP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 UP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 H Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 P Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 SP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 UP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 H Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 P Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 SP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 UP Block: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 H Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 P Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 SP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 UP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 H Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 P Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 SP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 UP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 H Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 P Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 SP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 UP Block: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 H Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 P Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 SP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 UP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 H Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 P Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 SP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 UP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 H Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 P Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 SP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 UP Block: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GLR UU H Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU P Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU SP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU UP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 H Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 P Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 SP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 UP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 H Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 P Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 SP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 UP Block: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS H Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS P Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS SP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS UP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 H Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 P Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 SP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 UP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 H Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 P Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 SP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 UP Block: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD H Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD P Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD SP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD UP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 H Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 P Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 SP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 UP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 H Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 P Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 SP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 UP Block: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ H Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ P Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ SP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ UP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 H Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 P Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 SP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 UP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 H Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 P Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 SP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 UP Block: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK H Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK P Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK SP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK UP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 H Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 P Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 SP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 UP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 H Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 P Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 SP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 UP Block: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH H Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH P Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH SP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH UP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 H Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 P Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 H Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 P Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH H Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH P Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH SP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH UP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 H Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 P Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 H Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 P Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH H Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH P Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH SP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH UP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 H Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 P Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 H Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 P Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH H Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH P Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH SP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH UP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 H Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 P Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 H Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 P Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH H Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH P Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH SP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH UP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 H Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 P Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 H Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 P Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH H Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH P Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH SP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH UP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 H Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 P Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 SP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 UP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 H Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 P Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 SP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 UP Block: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY H Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY P Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY SP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY UP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY H Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY P Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY SP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY UP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY H Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY P Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY SP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY UP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY H Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY P Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY SP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY UP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY H Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY P Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY SP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY UP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY H Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY P Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY SP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY UP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 H Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 P Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 SP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 UP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 H Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 P Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 SP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 UP Block: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 H Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 P Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 SP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 UP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 H Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 P Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 SP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 UP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 H Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 P Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 SP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 UP Block: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 H Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 P Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 SP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 UP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 H Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 P Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 SP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 UP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 H Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 P Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 SP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 UP Block: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 H Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 P Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 SP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 UP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 H Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 P Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 SP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 UP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 H Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 P Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 SP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 UP Block: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 H Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 P Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 SP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 UP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 H Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 P Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 SP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 UP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 H Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 P Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 SP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 UP Block: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 H Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 P Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 SP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 UP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 H Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 P Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 SP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 UP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 H Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 P Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 SP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 UP Block: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 H Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 P Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 SP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 UP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 H Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 P Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 SP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 UP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 H Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 P Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 SP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 UP Block: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GSLR UU H Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU P Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU SP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU UP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS H Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS P Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS SP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS UP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD H Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD P Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD SP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD UP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK H Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK P Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK SP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK UP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 H Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 P Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 H Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 P Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 H Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 P Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 SP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 UP Block: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
LM GuidesTHK
831 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRG-GR/GLR/GSLR Full Roller LM Guide (Narrow, Size 45)

Brand THK·LM Guides

Available part numbers (831)

SRG45GR, SRG45GLR, SRG45GSLR, SRG45GR UU H, SRG45GR UU P, SRG45GR UU SP, SRG45GR UU UP, SRG45GR UU C1 H, SRG45GR UU C1 P, SRG45GR UU C1 SP + 821 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG45GRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45GLRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45GSLRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45GR UU HBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU PBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU SPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU UPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 HBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 PBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 SPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C1 UPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 HBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 PBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 SPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR UU C0 UPBlock: GR (narrow high, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS HBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS PBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS SPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS UPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 HBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 PBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 SPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C1 UPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 HBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 PBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 SPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SS C0 UPBlock: GR (narrow high, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD HBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD PBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD SPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD UPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 HBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 PBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 SPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C1 UPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 HBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 PBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 SPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DD C0 UPBlock: GR (narrow high, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ HBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ PBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ SPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ UPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 HBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 PBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 SPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C1 UPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 HBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 PBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 SPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZ C0 UPBlock: GR (narrow high, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK HBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK PBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK SPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK UPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 HBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 PBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 SPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C1 UPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 HBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 PBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 SPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KK C0 UPBlock: GR (narrow high, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH HBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH PBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH SPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH UPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 HBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 PBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 SPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C1 UPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 HBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 PBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 SPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHH C0 UPBlock: GR (narrow high, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH HBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH PBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH SPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH UPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 HBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 PBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 SPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C1 UPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 HBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 PBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 SPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHH C0 UPBlock: GR (narrow high, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH HBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH PBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH SPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH UPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 HBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 PBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 SPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C1 UPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 HBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 PBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 SPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHH C0 UPBlock: GR (narrow high, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH HBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH PBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH SPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH UPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 HBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 PBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 SPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C1 UPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 HBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 PBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 SPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHH C0 UPBlock: GR (narrow high, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH HBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH PBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH SPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH UPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 HBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 PBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 SPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C1 UPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 HBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 PBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 SPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHH C0 UPBlock: GR (narrow high, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH HBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH PBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH SPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH UPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 HBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 PBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 SPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C1 UPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 HBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 PBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 SPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHH C0 UPBlock: GR (narrow high, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY HBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY PBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY SPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY UPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 HBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 PBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 HBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 PBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR SSHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY HBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY PBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY SPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY UPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 HBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 PBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 HBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 PBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR DDHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY HBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY PBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY SPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY UPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 HBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 PBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 HBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 PBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR ZZHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY HBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY PBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY SPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY UPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 HBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 PBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 HBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 PBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR KKHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY HBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY PBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY SPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY UPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 HBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 PBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 HBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 PBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR JJHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY HBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY PBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY SPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY UPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 HBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 PBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 SPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C1 UPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 HBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 PBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 SPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR TTHHYY C0 UPBlock: GR (narrow high, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 HBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 PBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 SPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 UPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 HBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 PBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 SPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C1 UPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 HBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 PBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 SPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F2 C0 UPBlock: GR (narrow high, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 HBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 PBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 SPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 UPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 HBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 PBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 SPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C1 UPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 HBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 PBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 SPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR F4 C0 UPBlock: GR (narrow high, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 HBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 PBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 SPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 UPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 HBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 PBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 SPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C1 UPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 HBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 PBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 SPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ2 C0 UPBlock: GR (narrow high, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 HBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 PBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 SPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 UPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 HBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 PBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 SPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C1 UPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 HBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 PBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 SPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FZ4 C0 UPBlock: GR (narrow high, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 HBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 PBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 SPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 UPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 HBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 PBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 SPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C1 UPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 HBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 PBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 SPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ2 C0 UPBlock: GR (narrow high, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 HBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 PBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 SPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 UPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 HBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 PBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 SPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C1 UPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 HBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 PBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 SPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GR FJ4 C0 UPBlock: GR (narrow high, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 87.8, 216
SRG45GLR UU HBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU PBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU SPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU UPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 HBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 PBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 SPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C1 UPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 HBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 PBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 SPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR UU C0 UPBlock: GLR (narrow high, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS HBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS PBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS SPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS UPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 HBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 PBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 SPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C1 UPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 HBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 PBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 SPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SS C0 UPBlock: GLR (narrow high, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD HBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD PBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD SPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD UPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 HBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 PBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 SPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C1 UPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 HBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 PBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 SPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DD C0 UPBlock: GLR (narrow high, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ HBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ PBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ SPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ UPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 HBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 PBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C1 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 HBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 PBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZ C0 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK HBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK PBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK SPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK UPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 HBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 PBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 SPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C1 UPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 HBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 PBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 SPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KK C0 UPBlock: GLR (narrow high, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH HBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH PBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH SPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH UPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH HBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH PBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH SPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH UPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH HBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH PBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH HBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH PBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH SPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH UPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH HBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH PBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH SPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH UPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH HBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH PBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH SPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH UPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 HBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 PBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 SPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C1 UPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 HBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 PBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 SPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHH C0 UPBlock: GLR (narrow high, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY HBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY PBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR SSHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY HBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY PBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR DDHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY HBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY PBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR ZZHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY HBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY PBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR KKHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY HBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY PBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR JJHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY HBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY PBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY SPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY UPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 HBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 PBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 SPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C1 UPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 HBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 PBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 SPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR TTHHYY C0 UPBlock: GLR (narrow high, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 HBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 PBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 SPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 UPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 HBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 PBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 HBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 PBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F2 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 HBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 PBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 SPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 UPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 HBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 PBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 HBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 PBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR F4 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 HBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 PBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 HBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 PBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 HBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 PBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ2 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 HBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 PBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 HBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 PBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 HBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 PBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FZ4 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 HBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 PBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 HBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 PBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 HBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 PBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ2 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 HBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 PBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 HBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 PBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C1 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 HBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 PBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 SPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GLR FJ4 C0 UPBlock: GLR (narrow high, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 110, 288
SRG45GSLR UU HBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU PBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU SPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU UPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR UU C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS HBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS PBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SS C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD HBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD PBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DD C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZ C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK HBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK PBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KK C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHH C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR SSHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR DDHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR ZZHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR KKHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR JJHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR TTHHYY C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F2 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR F4 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ2 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FZ4 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ2 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C1 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 HBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 PBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 SPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368
SRG45GSLR FJ4 C0 UPBlock: GSLR (narrow high, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 133, 368

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
