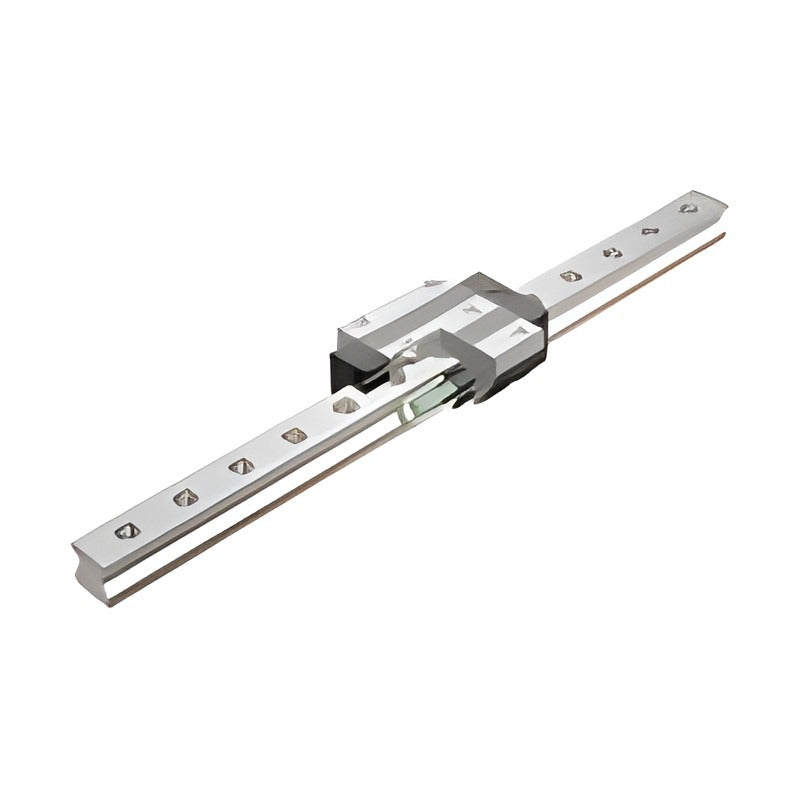

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 45)

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 45)

THK SRG45 roller retainer LM guide with narrow blocks in standard, long and extra-long lengths for ultra-high rigidity machine axes.

Key features

  • Roller retainer keeps rollers evenly spaced, preventing skew for smooth, stable motion
  • Rollers with length at least 1.5x diameter give ultra-high rigidity
  • Four roller rows at 45 deg contact angle give equal load ratings in all four directions
  • No roller-to-roller friction and improved grease retention for long-term maintenance-free running
  • Dimensions nearly identical to the world-standard HSR ball LM guide

Specifications

Size 45
Series SRG (ultra-high rigidity roller guide)
Rolling element Rollers in roller retainer
Contact structure 4 rows, 45 deg, 4-way equal load
Preload options Normal, C1 (light), C0 (medium)
Accuracy options H, P, SP, UP (normal grade not offered)
Dynamic rating basis C at 100 km rated life (C50 = 1.23 x C)
Other options (describe) QZ, plate cover, tapped rail, caps, JSRG
Rail standard max length 3090 mm
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 418-441
SRG45R Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45LR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45SLR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG45R UU H Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU P Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU SP Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU UP Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 H Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 P Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 SP Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 UP Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 H Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 P Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 SP Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 UP Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45LR UU H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45SLR UU H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
LM GuidesTHK
831 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 45)

Brand THK·LM Guides

Available part numbers (831)

SRG45R, SRG45LR, SRG45SLR, SRG45R UU H, SRG45R UU P, SRG45R UU SP, SRG45R UU UP, SRG45R UU C1 H, SRG45R UU C1 P, SRG45R UU C1 SP + 821 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG45RBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45LRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45SLRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG45R UU HBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU PBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 HBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 PBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C1 UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 HBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 PBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R UU C0 UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C1 UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SS C0 UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C1 UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DD C0 UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C1 UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZ C0 UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C1 UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KK C0 UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C1 UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHH C0 UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C1 UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHH C0 UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C1 UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHH C0 UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C1 UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHH C0 UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C1 UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHH C0 UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C1 UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHH C0 UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C1 UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R SSHHYY C0 UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C1 UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R DDHHYY C0 UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C1 UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R ZZHHYY C0 UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C1 UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R KKHHYY C0 UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C1 UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R JJHHYY C0 UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C1 UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R TTHHYY C0 UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C1 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F2 C0 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C1 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R F4 C0 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C1 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ2 C0 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C1 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FZ4 C0 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C1 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ2 C0 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C1 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45R FJ4 C0 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 155 / 91.9, 192
SRG45LR UU HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C1 UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR UU C0 UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C1 UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SS C0 UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C1 UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DD C0 UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C1 UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZ C0 UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C1 UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KK C0 UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C1 UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHH C0 UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C1 UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHH C0 UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C1 UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHH C0 UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C1 UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHH C0 UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C1 UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHH C0 UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C1 UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHH C0 UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C1 UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR SSHHYY C0 UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C1 UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR DDHHYY C0 UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C1 UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR ZZHHYY C0 UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C1 UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR KKHHYY C0 UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C1 UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR JJHHYY C0 UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C1 UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR TTHHYY C0 UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C1 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F2 C0 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C1 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR F4 C0 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C1 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ2 C0 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C1 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FZ4 C0 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C1 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ2 C0 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C1 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45LR FJ4 C0 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 190 / 115, 256
SRG45SLR UU HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C1 UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR UU C0 UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C1 UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SS C0 UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C1 UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DD C0 UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZ C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C1 UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KK C0 UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C1 UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHH C0 UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C1 UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHH C0 UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHH C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C1 UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHH C0 UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C1 UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHH C0 UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C1 UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHH C0 UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR SSHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR DDHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR ZZHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR KKHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR JJHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR TTHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C1 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F2 C0 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C1 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR F4 C0 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C1 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ2 C0 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C1 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FZ4 C0 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C1 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ2 C0 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C1 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328
SRG45SLR FJ4 C0 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 86 x 231.5 / 139, 328

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
