THK SRG-GC/GLC/GSLC Full Roller LM Guide (Flange, Size 55)

THK SRG-GC/GLC/GSLC Full Roller LM Guide (Flange, Size 55)

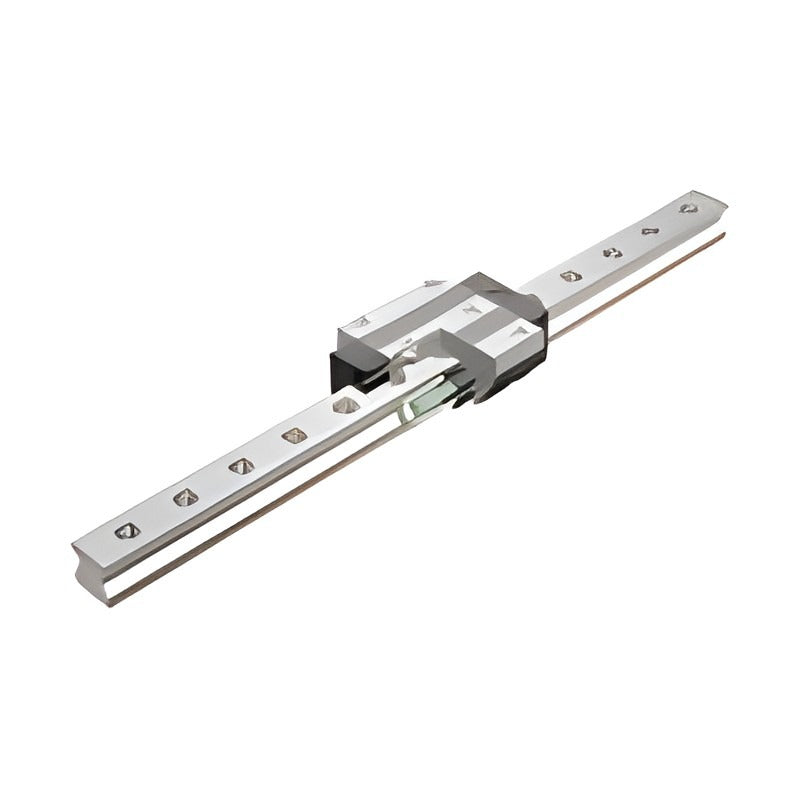

THK SRG55 full-complement roller LM guide with flange blocks in standard, long and extra-long lengths for ultra-high rigidity machine axes.

Key features

  • Full-complement roller type (no roller retainer) of the same block and rail dimensions
  • Higher static load rating C0 than the retainer type; slightly lower dynamic rating C
  • Rollers with length at least 1.5x diameter give ultra-high rigidity
  • Four roller rows at 45 deg contact angle give equal load ratings in all four directions

Specifications

Size 55
Series SRG (ultra-high rigidity roller guide)
Rolling element Full-complement rollers
Contact structure 4 rows, 45 deg, 4-way equal load
Preload options Normal, C1 (light), C0 (medium)
Accuracy options H, P, SP, UP (normal grade not offered)
Dynamic rating basis C at 100 km rated life (C50 = 1.23 x C)
Other options (describe) QZ, plate cover, tapped rail, caps, JSRG
Rail standard max length 3060 mm
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 418-441
SRG55GC Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55GLC Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55GSLC Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55GC UU H Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU P Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU SP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU UP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 H Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 P Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 SP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 UP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 H Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 P Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 SP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 UP Block: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS H Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS P Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS SP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS UP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 H Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 P Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 SP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 UP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 H Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 P Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 SP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 UP Block: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD H Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD P Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD SP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD UP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 H Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 P Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 SP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 UP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 H Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 P Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 SP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 UP Block: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ H Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ P Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ SP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ UP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 H Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 P Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 SP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 UP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 H Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 P Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 SP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 UP Block: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK H Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK P Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK SP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK UP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 H Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 P Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 SP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 UP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 H Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 P Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 SP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 UP Block: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH H Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH P Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH SP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH UP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 H Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 P Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 SP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 UP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 H Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 P Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 SP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 UP Block: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH H Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH P Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH SP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH UP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 H Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 P Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 SP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 UP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 H Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 P Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 SP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 UP Block: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH H Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH P Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH SP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH UP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 H Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 P Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 SP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 UP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 H Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 P Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 SP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 UP Block: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH H Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH P Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH SP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH UP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 H Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 P Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 SP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 UP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 H Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 P Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 SP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 UP Block: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH H Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH P Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH SP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH UP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 H Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 P Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 SP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 UP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 H Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 P Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 SP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 UP Block: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH H Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH P Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH SP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH UP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 H Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 P Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 SP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 UP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 H Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 P Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 SP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 UP Block: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY H Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY P Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY SP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY UP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 H Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 P Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 SP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 UP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 H Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 P Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 SP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 UP Block: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY H Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY P Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY SP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY UP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 H Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 P Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 SP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 UP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 H Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 P Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 SP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 UP Block: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY H Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY P Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY SP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY UP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 H Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 P Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 SP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 UP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 H Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 P Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 SP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 UP Block: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY H Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY P Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY SP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY UP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 H Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 P Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 SP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 UP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 H Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 P Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 SP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 UP Block: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY H Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY P Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY SP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY UP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 H Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 P Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 SP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 UP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 H Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 P Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 SP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 UP Block: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY H Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY P Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY SP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY UP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 H Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 P Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 SP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 UP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 H Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 P Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 SP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 UP Block: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 H Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 P Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 SP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 UP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 H Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 P Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 SP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 UP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 H Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 P Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 SP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 UP Block: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 H Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 P Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 SP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 UP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 H Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 P Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 SP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 UP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 H Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 P Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 SP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 UP Block: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 H Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 P Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 SP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 UP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 H Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 P Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 SP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 UP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 H Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 P Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 SP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 UP Block: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 H Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 P Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 SP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 UP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 H Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 P Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 SP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 UP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 H Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 P Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 SP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 UP Block: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 H Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 P Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 SP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 UP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 H Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 P Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 SP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 UP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 H Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 P Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 SP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 UP Block: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 H Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 P Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 SP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 UP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 H Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 P Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 SP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 UP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 H Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 P Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 SP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 UP Block: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GLC UU H Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU P Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU SP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU UP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 H Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 P Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 SP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 UP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 H Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 P Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 SP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 UP Block: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS H Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS P Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS SP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS UP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 H Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 P Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 SP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 UP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 H Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 P Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 SP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 UP Block: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD H Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD P Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD SP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD UP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 H Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 P Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 SP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 UP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 H Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 P Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 SP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 UP Block: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ H Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ P Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ SP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ UP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 H Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 P Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 SP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 UP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 H Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 P Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 SP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 UP Block: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK H Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK P Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK SP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK UP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 H Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 P Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 SP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 UP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 H Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 P Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 SP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 UP Block: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH H Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH P Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH SP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH UP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 H Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 P Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 SP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 UP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 H Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 P Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 SP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 UP Block: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH H Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH P Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH SP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH UP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 H Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 P Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 SP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 UP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 H Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 P Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 SP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 UP Block: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH H Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH P Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH SP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH UP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 H Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 P Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 SP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 UP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 H Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 P Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 SP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 UP Block: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH H Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH P Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH SP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH UP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 H Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 P Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 SP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 UP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 H Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 P Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 SP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 UP Block: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH H Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH P Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH SP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH UP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 H Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 P Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 SP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 UP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 H Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 P Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 SP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 UP Block: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH H Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH P Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH SP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH UP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 H Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 P Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 SP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 UP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 H Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 P Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 SP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 UP Block: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY H Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY P Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY SP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY UP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 H Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 P Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 H Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 P Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY H Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY P Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY SP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY UP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 H Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 P Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 H Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 P Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY H Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY P Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY SP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY UP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 H Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 P Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 H Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 P Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY H Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY P Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY SP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY UP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 H Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 P Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 H Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 P Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY H Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY P Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY SP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY UP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 H Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 P Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 H Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 P Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY H Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY P Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY SP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY UP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 H Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 P Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 SP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 UP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 H Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 P Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 SP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 UP Block: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 H Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 P Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 SP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 UP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 H Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 P Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 SP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 UP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 H Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 P Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 SP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 UP Block: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 H Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 P Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 SP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 UP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 H Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 P Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 SP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 UP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 H Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 P Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 SP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 UP Block: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 H Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 P Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 SP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 UP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 H Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 P Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 SP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 UP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 H Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 P Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 SP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 UP Block: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 H Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 P Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 SP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 UP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 H Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 P Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 SP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 UP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 H Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 P Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 SP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 UP Block: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 H Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 P Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 SP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 UP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 H Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 P Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 SP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 UP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 H Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 P Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 SP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 UP Block: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 H Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 P Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 SP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 UP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 H Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 P Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 SP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 UP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 H Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 P Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 SP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 UP Block: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GSLC UU H Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU P Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU SP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU UP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 H Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 P Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 SP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 UP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 H Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 P Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 SP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 UP Block: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS H Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS P Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS SP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS UP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 H Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 P Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 SP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 UP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 H Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 P Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 SP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 UP Block: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD H Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD P Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD SP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD UP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 H Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 P Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 SP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 UP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 H Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 P Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 SP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 UP Block: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ H Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ P Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ SP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ UP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 H Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 P Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 H Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 P Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK H Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK P Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK SP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK UP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 H Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 P Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 SP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 UP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 H Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 P Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 SP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 UP Block: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH H Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH P Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH SP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH UP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH H Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH P Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH SP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH UP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH H Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH P Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH H Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH P Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH SP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH UP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH H Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH P Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH SP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH UP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH H Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH P Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH SP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH UP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 H Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 P Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 SP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 UP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 H Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 P Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 SP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 UP Block: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY H Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY P Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY H Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY P Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY H Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY P Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY H Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY P Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY H Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY P Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY H Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY P Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY SP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY UP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 H Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 P Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 SP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 UP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 H Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 P Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 SP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 UP Block: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 H Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 P Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 SP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 UP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 H Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 P Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 H Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 P Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 H Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 P Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 SP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 UP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 H Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 P Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 H Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 P Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 H Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 P Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 H Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 P Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 H Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 P Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 H Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 P Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 H Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 P Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 H Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 P Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 H Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 P Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 H Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 P Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 H Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 P Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 H Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 P Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 H Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 P Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 H Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 P Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 SP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 UP Block: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
LM GuidesTHK
831 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRG-GC/GLC/GSLC Full Roller LM Guide (Flange, Size 55)

Brand THK·LM Guides

Available part numbers (831)

SRG55GC, SRG55GLC, SRG55GSLC, SRG55GC UU H, SRG55GC UU P, SRG55GC UU SP, SRG55GC UU UP, SRG55GC UU C1 H, SRG55GC UU C1 P, SRG55GC UU C1 SP + 821 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG55GCBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55GLCBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55GSLCBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55GC UU HBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU PBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU SPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU UPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 HBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 PBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 SPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C1 UPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 HBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 PBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 SPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC UU C0 UPBlock: GC (flange, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS HBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS PBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS SPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS UPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 HBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 PBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 SPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C1 UPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 HBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 PBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 SPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SS C0 UPBlock: GC (flange, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD HBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD PBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD SPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD UPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 HBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 PBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 SPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C1 UPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 HBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 PBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 SPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DD C0 UPBlock: GC (flange, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ HBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ PBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ SPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ UPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 HBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 PBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 SPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C1 UPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 HBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 PBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 SPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZ C0 UPBlock: GC (flange, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK HBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK PBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK SPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK UPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 HBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 PBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 SPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C1 UPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 HBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 PBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 SPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KK C0 UPBlock: GC (flange, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH HBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH PBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH SPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH UPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 HBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 PBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 SPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C1 UPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 HBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 PBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 SPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHH C0 UPBlock: GC (flange, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH HBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH PBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH SPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH UPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 HBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 PBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 SPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C1 UPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 HBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 PBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 SPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHH C0 UPBlock: GC (flange, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH HBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH PBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH SPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH UPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 HBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 PBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 SPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C1 UPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 HBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 PBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 SPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHH C0 UPBlock: GC (flange, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH HBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH PBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH SPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH UPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 HBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 PBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 SPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C1 UPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 HBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 PBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 SPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHH C0 UPBlock: GC (flange, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH HBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH PBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH SPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH UPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 HBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 PBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 SPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C1 UPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 HBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 PBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 SPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHH C0 UPBlock: GC (flange, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH HBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH PBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH SPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH UPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 HBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 PBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 SPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C1 UPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 HBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 PBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 SPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHH C0 UPBlock: GC (flange, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY HBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY PBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY SPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY UPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 HBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 PBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 SPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C1 UPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 HBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 PBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 SPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC SSHHYY C0 UPBlock: GC (flange, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY HBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY PBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY SPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY UPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 HBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 PBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 SPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C1 UPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 HBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 PBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 SPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC DDHHYY C0 UPBlock: GC (flange, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY HBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY PBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY SPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY UPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 HBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 PBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 SPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C1 UPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 HBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 PBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 SPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC ZZHHYY C0 UPBlock: GC (flange, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY HBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY PBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY SPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY UPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 HBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 PBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 SPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C1 UPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 HBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 PBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 SPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC KKHHYY C0 UPBlock: GC (flange, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY HBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY PBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY SPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY UPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 HBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 PBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 SPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C1 UPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 HBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 PBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 SPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC JJHHYY C0 UPBlock: GC (flange, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY HBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY PBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY SPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY UPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 HBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 PBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 SPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C1 UPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 HBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 PBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 SPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC TTHHYY C0 UPBlock: GC (flange, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 HBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 PBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 SPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 UPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 HBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 PBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 SPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C1 UPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 HBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 PBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 SPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F2 C0 UPBlock: GC (flange, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 HBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 PBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 SPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 UPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 HBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 PBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 SPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C1 UPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 HBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 PBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 SPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC F4 C0 UPBlock: GC (flange, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 HBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 PBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 SPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 UPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 HBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 PBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 SPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C1 UPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 HBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 PBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 SPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ2 C0 UPBlock: GC (flange, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 HBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 PBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 SPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 UPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 HBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 PBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 SPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C1 UPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 HBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 PBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 SPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FZ4 C0 UPBlock: GC (flange, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 HBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 PBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 SPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 UPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 HBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 PBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 SPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C1 UPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 HBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 PBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 SPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ2 C0 UPBlock: GC (flange, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 HBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 PBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 SPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 UPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 HBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 PBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 SPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C1 UPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 HBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 PBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 SPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GC FJ4 C0 UPBlock: GC (flange, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 185 / 125, 300
SRG55GLC UU HBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU PBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU SPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU UPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 HBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 PBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 SPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C1 UPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 HBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 PBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 SPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC UU C0 UPBlock: GLC (flange, long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS HBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS PBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS SPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS UPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 HBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 PBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 SPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C1 UPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 HBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 PBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 SPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SS C0 UPBlock: GLC (flange, long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD HBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD PBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD SPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD UPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 HBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 PBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 SPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C1 UPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 HBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 PBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 SPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DD C0 UPBlock: GLC (flange, long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ HBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ PBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ SPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ UPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 HBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 PBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 SPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C1 UPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 HBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 PBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 SPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZ C0 UPBlock: GLC (flange, long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK HBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK PBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK SPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK UPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 HBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 PBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 SPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C1 UPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 HBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 PBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 SPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KK C0 UPBlock: GLC (flange, long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH HBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH PBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH SPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH UPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 HBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 PBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 SPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C1 UPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 HBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 PBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 SPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHH C0 UPBlock: GLC (flange, long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH HBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH PBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH SPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH UPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 HBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 PBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 SPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C1 UPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 HBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 PBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 SPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHH C0 UPBlock: GLC (flange, long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH HBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH PBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH SPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH UPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 HBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 PBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 SPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C1 UPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 HBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 PBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 SPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHH C0 UPBlock: GLC (flange, long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH HBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH PBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH SPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH UPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 HBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 PBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 SPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C1 UPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 HBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 PBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 SPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHH C0 UPBlock: GLC (flange, long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH HBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH PBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH SPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH UPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 HBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 PBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 SPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C1 UPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 HBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 PBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 SPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHH C0 UPBlock: GLC (flange, long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH HBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH PBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH SPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH UPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 HBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 PBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 SPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C1 UPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 HBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 PBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 SPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHH C0 UPBlock: GLC (flange, long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY HBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY PBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY SPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY UPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC SSHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY HBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY PBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY SPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY UPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC DDHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY HBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY PBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY SPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY UPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC ZZHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY HBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY PBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY SPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY UPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC KKHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY HBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY PBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY SPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY UPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC JJHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY HBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY PBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY SPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY UPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 HBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 PBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 SPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C1 UPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 HBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 PBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 SPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC TTHHYY C0 UPBlock: GLC (flange, long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 HBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 PBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 SPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 UPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 HBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 PBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 SPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C1 UPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 HBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 PBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 SPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F2 C0 UPBlock: GLC (flange, long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 HBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 PBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 SPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 UPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 HBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 PBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 SPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C1 UPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 HBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 PBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 SPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC F4 C0 UPBlock: GLC (flange, long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 HBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 PBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 SPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 UPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 HBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 PBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 SPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C1 UPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 HBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 PBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 SPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ2 C0 UPBlock: GLC (flange, long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 HBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 PBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 SPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 UPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 HBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 PBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 SPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C1 UPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 HBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 PBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 SPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FZ4 C0 UPBlock: GLC (flange, long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 HBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 PBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 SPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 UPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 HBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 PBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 SPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C1 UPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 HBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 PBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 SPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ2 C0 UPBlock: GLC (flange, long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 HBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 PBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 SPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 UPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 HBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 PBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 SPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C1 UPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 HBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 PBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 SPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GLC FJ4 C0 UPBlock: GLC (flange, long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 235 / 160, 411
SRG55GSLC UU HBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU PBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU SPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU UPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 HBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 PBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 HBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 PBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC UU C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS HBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS PBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS SPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS UPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 HBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 PBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 HBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 PBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SS C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD HBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD PBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD SPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD UPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 HBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 PBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 HBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 PBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DD C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ HBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ PBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZ C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK HBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK PBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK SPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK UPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 HBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 PBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 HBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 PBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KK C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH HBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH PBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH HBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH PBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH HBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH PBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH HBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH PBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH HBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH PBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 HBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 PBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 HBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 PBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHH C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC SSHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC DDHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC ZZHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC KKHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC JJHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY HBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY PBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 HBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 PBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 HBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 PBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC TTHHYY C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 HBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 PBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 SPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 UPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F2 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 HBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 PBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 SPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 UPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC F4 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ2 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FZ4 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ2 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C1 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 HBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 PBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 SPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544
SRG55GSLC FJ4 C0 UPBlock: GSLC (flange, x-long, full roller) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 70 x 140 x 292 / 199, 544

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
