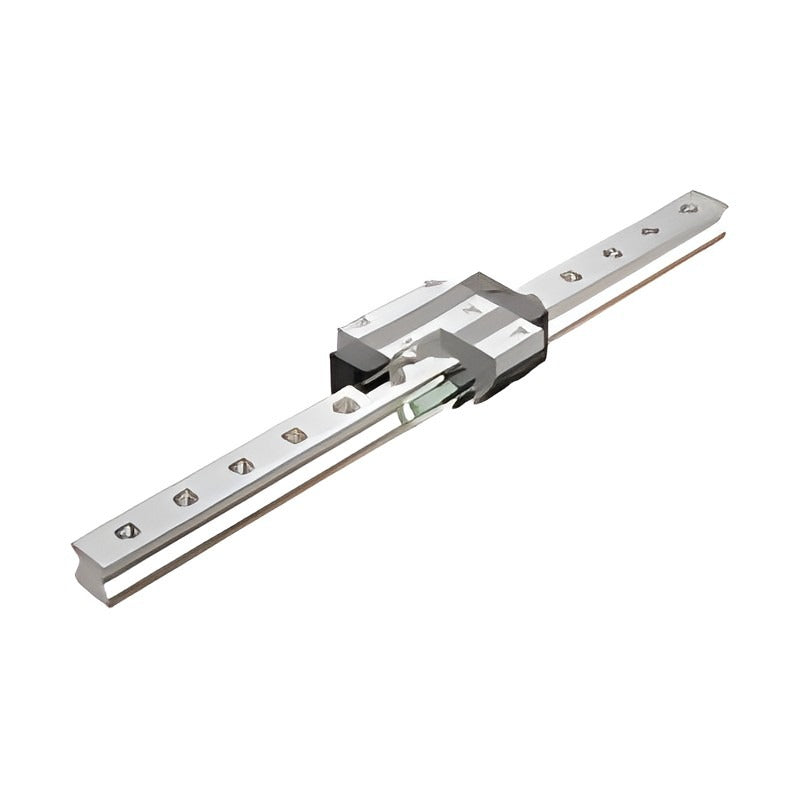

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 55)

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 55)

THK SRG55 roller retainer LM guide with narrow blocks in standard, long and extra-long lengths for ultra-high rigidity machine axes.

Key features

  • Roller retainer keeps rollers evenly spaced, preventing skew for smooth, stable motion
  • Rollers with length at least 1.5x diameter give ultra-high rigidity
  • Four roller rows at 45 deg contact angle give equal load ratings in all four directions
  • No roller-to-roller friction and improved grease retention for long-term maintenance-free running
  • Dimensions nearly identical to the world-standard HSR ball LM guide

Specifications

Size 55
Series SRG (ultra-high rigidity roller guide)
Rolling element Rollers in roller retainer
Contact structure 4 rows, 45 deg, 4-way equal load
Preload options Normal, C1 (light), C0 (medium)
Accuracy options H, P, SP, UP (normal grade not offered)
Dynamic rating basis C at 100 km rated life (C50 = 1.23 x C)
Other options (describe) QZ, plate cover, tapped rail, caps, JSRG
Rail standard max length 3060 mm
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 418-441
SRG55R Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55LR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55SLR Base model (specify seal, preload, accuracy, blocks, rail length)
SRG55R UU H Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU P Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU SP Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU UP Block: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 H Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 P Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 SP Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 UP Block: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 H Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 P Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 SP Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 UP Block: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 H Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 P Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 SP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 UP Block: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 H Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 P Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 SP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 UP Block: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 H Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 P Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 SP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 UP Block: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 H Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 P Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 SP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 UP Block: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 H Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 P Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 SP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 UP Block: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 H Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 P Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 SP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 UP Block: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 H Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 P Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 SP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 UP Block: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 H Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 P Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 SP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 UP Block: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 H Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 P Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 SP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 UP Block: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 H Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 P Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 SP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 UP Block: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 H Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 P Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 SP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 UP Block: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 H Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 P Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 SP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 UP Block: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 H Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 P Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 SP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 UP Block: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 H Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 P Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 SP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 UP Block: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 H Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 P Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 SP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 UP Block: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 H Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 P Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 SP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 UP Block: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 H Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 P Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 SP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 UP Block: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 H Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 P Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 SP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 UP Block: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 H Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 P Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 SP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 UP Block: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 H Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 P Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 SP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 UP Block: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 H Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 P Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 SP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 UP Block: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 H Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 P Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 SP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 UP Block: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55LR UU H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 H Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 P Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 SP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 UP Block: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 H Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 P Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 SP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 UP Block: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 H Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 P Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 SP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 UP Block: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 H Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 P Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 SP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 UP Block: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 H Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 P Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 SP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 UP Block: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 H Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 P Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 SP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 UP Block: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 H Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 P Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 SP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 UP Block: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 H Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 P Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 SP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 UP Block: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 H Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 P Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 SP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 UP Block: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 H Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 P Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 SP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 UP Block: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 H Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 P Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 SP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 UP Block: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 H Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 P Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 SP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 UP Block: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 H Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 P Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 SP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 UP Block: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 H Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 P Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 SP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 UP Block: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 H Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 P Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 SP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 UP Block: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 H Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 P Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 SP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 UP Block: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 H Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 P Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 SP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 UP Block: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 H Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 P Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 SP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 UP Block: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 H Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 P Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 SP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 UP Block: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 H Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 P Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 SP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 UP Block: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 H Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 P Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 SP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 UP Block: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 H Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 P Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 SP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 UP Block: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 H Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 P Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 SP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 UP Block: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55SLR UU H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 H Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 P Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 SP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 UP Block: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 H Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 P Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 SP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 UP Block: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 H Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 P Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 SP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 UP Block: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 H Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 P Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 SP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 UP Block: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 H Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 P Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 SP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 UP Block: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 H Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 P Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 SP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 UP Block: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 H Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 P Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 SP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 UP Block: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 H Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 P Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 SP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 UP Block: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 H Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 P Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 SP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 UP Block: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 H Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 P Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 SP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 UP Block: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 H Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 P Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 SP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 UP Block: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 H Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 P Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 H Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 P Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 H Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 P Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 H Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 P Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 H Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 P Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 H Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 P Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 SP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 UP Block: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 H Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 P Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 SP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 UP Block: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 H Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 P Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 SP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 UP Block: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 H Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 P Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 SP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 UP Block: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 H Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 P Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 SP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 UP Block: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 H Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 P Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 SP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 UP Block: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 H Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 P Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 SP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 UP Block: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
LM GuidesTHK
831 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRG-R/LR/SLR Roller Retainer LM Guide (Narrow, Size 55)

Brand THK·LM Guides

Available part numbers (831)

SRG55R, SRG55LR, SRG55SLR, SRG55R UU H, SRG55R UU P, SRG55R UU SP, SRG55R UU UP, SRG55R UU C1 H, SRG55R UU C1 P, SRG55R UU C1 SP + 821 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG55RBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55LRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55SLRBase model (specify seal, preload, accuracy, blocks, rail length)
SRG55R UU HBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU PBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 HBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 PBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C1 UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 HBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 PBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 SPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R UU C0 UPBlock: R (narrow high) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C1 UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 HBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 PBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 SPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SS C0 UPBlock: R (narrow high) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C1 UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 HBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 PBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 SPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DD C0 UPBlock: R (narrow high) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C1 UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 HBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 PBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 SPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZ C0 UPBlock: R (narrow high) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C1 UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 HBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 PBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 SPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KK C0 UPBlock: R (narrow high) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C1 UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 HBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 PBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 SPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHH C0 UPBlock: R (narrow high) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C1 UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 HBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 PBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 SPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHH C0 UPBlock: R (narrow high) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C1 UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 HBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 PBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 SPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHH C0 UPBlock: R (narrow high) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C1 UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 HBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 PBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 SPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHH C0 UPBlock: R (narrow high) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C1 UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 HBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 PBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 SPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHH C0 UPBlock: R (narrow high) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C1 UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 HBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 PBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 SPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHH C0 UPBlock: R (narrow high) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C1 UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 HBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 PBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 SPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R SSHHYY C0 UPBlock: R (narrow high) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C1 UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 HBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 PBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 SPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R DDHHYY C0 UPBlock: R (narrow high) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C1 UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 HBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 PBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 SPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R ZZHHYY C0 UPBlock: R (narrow high) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C1 UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 HBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 PBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 SPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R KKHHYY C0 UPBlock: R (narrow high) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C1 UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 HBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 PBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 SPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R JJHHYY C0 UPBlock: R (narrow high) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C1 UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 HBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 PBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 SPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R TTHHYY C0 UPBlock: R (narrow high) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C1 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 HBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 PBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 SPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F2 C0 UPBlock: R (narrow high) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C1 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 HBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 PBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 SPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R F4 C0 UPBlock: R (narrow high) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C1 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 HBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 PBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 SPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ2 C0 UPBlock: R (narrow high) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C1 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 HBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 PBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 SPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FZ4 C0 UPBlock: R (narrow high) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C1 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 HBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 PBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 SPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ2 C0 UPBlock: R (narrow high) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C1 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 HBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 PBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 SPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55R FJ4 C0 UPBlock: R (narrow high) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 185 / 131, 266
SRG55LR UU HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C1 UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 HBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 PBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 SPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR UU C0 UPBlock: LR (narrow high, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C1 UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 HBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 PBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 SPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SS C0 UPBlock: LR (narrow high, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C1 UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 HBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 PBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 SPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DD C0 UPBlock: LR (narrow high, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C1 UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 HBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 PBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 SPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZ C0 UPBlock: LR (narrow high, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C1 UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 HBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 PBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 SPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KK C0 UPBlock: LR (narrow high, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C1 UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 HBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 PBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 SPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHH C0 UPBlock: LR (narrow high, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C1 UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 HBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 PBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 SPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHH C0 UPBlock: LR (narrow high, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C1 UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 HBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 PBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 SPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHH C0 UPBlock: LR (narrow high, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C1 UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 HBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 PBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 SPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHH C0 UPBlock: LR (narrow high, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C1 UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 HBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 PBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 SPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHH C0 UPBlock: LR (narrow high, long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C1 UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 HBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 PBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 SPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHH C0 UPBlock: LR (narrow high, long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C1 UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 HBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 PBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 SPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR SSHHYY C0 UPBlock: LR (narrow high, long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C1 UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 HBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 PBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 SPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR DDHHYY C0 UPBlock: LR (narrow high, long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C1 UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 HBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 PBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 SPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR ZZHHYY C0 UPBlock: LR (narrow high, long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C1 UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 HBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 PBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 SPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR KKHHYY C0 UPBlock: LR (narrow high, long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C1 UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 HBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 PBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 SPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR JJHHYY C0 UPBlock: LR (narrow high, long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C1 UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 HBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 PBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 SPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR TTHHYY C0 UPBlock: LR (narrow high, long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C1 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 HBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 PBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 SPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F2 C0 UPBlock: LR (narrow high, long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C1 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 HBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 PBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 SPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR F4 C0 UPBlock: LR (narrow high, long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C1 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 HBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 PBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 SPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ2 C0 UPBlock: LR (narrow high, long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C1 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 HBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 PBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 SPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FZ4 C0 UPBlock: LR (narrow high, long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C1 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 HBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 PBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 SPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ2 C0 UPBlock: LR (narrow high, long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C1 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 HBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 PBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 SPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55LR FJ4 C0 UPBlock: LR (narrow high, long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 235 / 167, 366
SRG55SLR UU HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C1 UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 HBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 PBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 SPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR UU C0 UPBlock: SLR (narrow high, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C1 UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 HBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 PBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 SPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SS C0 UPBlock: SLR (narrow high, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C1 UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 HBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 PBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 SPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DD C0 UPBlock: SLR (narrow high, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 HBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 PBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZ C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C1 UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 HBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 PBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 SPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KK C0 UPBlock: SLR (narrow high, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C1 UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 HBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 PBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 SPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHH C0 UPBlock: SLR (narrow high, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C1 UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 HBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 PBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 SPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHH C0 UPBlock: SLR (narrow high, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 HBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 PBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHH C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C1 UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 HBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 PBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 SPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHH C0 UPBlock: SLR (narrow high, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C1 UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 HBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 PBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 SPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHH C0 UPBlock: SLR (narrow high, x-long) | Seal: JJHH (SS+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C1 UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 HBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 PBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 SPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHH C0 UPBlock: SLR (narrow high, x-long) | Seal: TTHH (DD+LaCS+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR SSHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: SSHHYY (SS+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR DDHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: DDHHYY (DD+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR ZZHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: ZZHHYY (ZZ+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR KKHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: KKHHYY (KK+LaCS+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR JJHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: JJHHYY (SS+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C1 UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 HBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 PBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 SPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR TTHHYY C0 UPBlock: SLR (narrow high, x-long) | Seal: TTHHYY (DD+LaCS+protector+side scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C1 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 HBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 PBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 SPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F2 C0 UPBlock: SLR (narrow high, x-long) | Seal: F2 (fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C1 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 HBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 PBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 SPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR F4 C0 UPBlock: SLR (narrow high, x-long) | Seal: F4 (double fluoro seal+side+inner) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C1 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 HBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 PBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 SPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ2 C0 UPBlock: SLR (narrow high, x-long) | Seal: FZ2 (F2+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C1 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 HBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 PBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 SPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FZ4 C0 UPBlock: SLR (narrow high, x-long) | Seal: FZ4 (F4+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C1 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 HBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 PBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 SPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ2 C0 UPBlock: SLR (narrow high, x-long) | Seal: FJ2 (F2+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C1 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 HBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: H (high) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 PBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 SPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488
SRG55SLR FJ4 C0 UPBlock: SLR (narrow high, x-long) | Seal: FJ4 (F4+protector) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 80 x 100 x 292 / 210, 488

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
