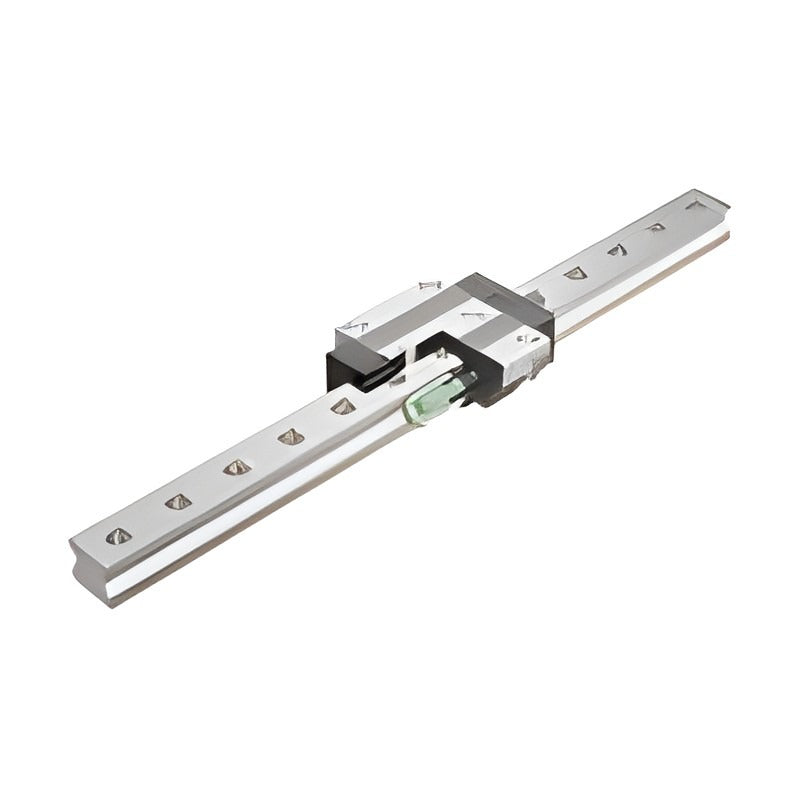

THK SRN-C/LC/SLC Low Profile Roller Retainer LM Guide (Flange, 55-65)

THK SRN-C/LC/SLC Low Profile Roller Retainer LM Guide (Flange, 55-65)

THK SRN low-profile roller retainer LM guide with flange blocks, a lower-height version of SRG for compact, ultra-rigid designs.

Key features

  • Low-profile, low-center-of-gravity version of the SRG roller retainer LM guide
  • Roller retainer prevents roller skew for smooth motion with low rolling-resistance fluctuation
  • Rollers with length at least 1.5x diameter give ultra-high rigidity
  • Four roller rows at 45 deg contact angle give equal load ratings in all four directions
  • Long-term maintenance-free operation thanks to improved grease retention

Specifications

Series SRN (low-profile roller retainer guide)
Rolling element Rollers in roller retainer
Contact structure 4 rows, 45 deg, 4-way equal load
Preload options Normal, C1, C0, CN1, CN2
Accuracy options P, SP, UP (precision grade or higher)
Dynamic rating basis C at 100 km rated life (C50 = 1.23 x C)
Other options (describe) QZ, plate cover, caps, bellows
Rail standard max length 3000-3090 mm by size
Source THK General Catalog LM Guide (Korean ed. 515-2K), p. 442-458
SRN55C Base model (specify seal, preload, accuracy, blocks, rail length)
SRN55LC Base model (specify seal, preload, accuracy, blocks, rail length)
SRN55SLC Base model (specify seal, preload, accuracy, blocks, rail length)
SRN65C Base model (specify seal, preload, accuracy, blocks, rail length)
SRN65LC Base model (specify seal, preload, accuracy, blocks, rail length)
SRN65SLC Base model (specify seal, preload, accuracy, blocks, rail length)
SRN55C UU P Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU SP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU UP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 P Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 SP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 UP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 P Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 SP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 UP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 P Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 SP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 UP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 P Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 SP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 UP Size: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS P Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS SP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS UP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 P Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 SP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 UP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 P Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 SP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 UP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 P Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 SP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 UP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 P Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 SP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 UP Size: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD P Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD SP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD UP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 P Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 SP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 UP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 P Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 SP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 UP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 P Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 SP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 UP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 P Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 SP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 UP Size: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ P Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ SP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ UP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 P Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 SP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 UP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 P Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 SP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 UP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 P Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 SP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 UP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 P Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 SP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 UP Size: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK P Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK SP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK UP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 P Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 SP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 UP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 P Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 SP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 UP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 P Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 SP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 UP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 P Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 SP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 UP Size: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH P Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH SP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH UP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 P Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 SP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 UP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 P Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 SP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 UP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 P Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 SP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 UP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 P Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 SP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 UP Size: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH P Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH SP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH UP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 P Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 SP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 UP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 P Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 SP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 UP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 P Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 SP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 UP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 P Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 SP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 UP Size: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH P Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH SP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH UP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 P Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 SP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 UP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 P Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 SP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 UP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 P Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 SP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 UP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 P Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 SP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 UP Size: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH P Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH SP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH UP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 P Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 SP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 UP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 P Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 SP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 UP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 P Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 SP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 UP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 P Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 SP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 UP Size: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55LC UU P Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU SP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU UP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 P Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 SP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 UP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 P Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 SP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 UP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 P Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 SP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 UP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 P Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 SP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 UP Size: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS P Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS SP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS UP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 P Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 SP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 UP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 P Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 SP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 UP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 P Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 SP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 UP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 P Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 SP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 UP Size: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD P Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD SP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD UP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 P Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 SP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 UP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 P Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 SP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 UP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 P Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 SP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 UP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 P Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 SP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 UP Size: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ P Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ SP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ UP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 P Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 SP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 UP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 P Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 SP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 UP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 P Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 SP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 UP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 P Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 SP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 UP Size: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK P Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK SP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK UP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 P Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 SP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 UP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 P Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 SP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 UP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 P Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 SP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 UP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 P Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 SP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 UP Size: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH P Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH SP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH UP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 P Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 SP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 UP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 P Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 SP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 UP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 P Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 SP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 UP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 P Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 SP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 UP Size: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH P Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH SP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH UP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 P Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 SP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 UP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 P Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 SP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 UP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 P Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 SP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 UP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 P Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 SP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 UP Size: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH P Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH SP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH UP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 P Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 SP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 UP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 P Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 SP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 UP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 P Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 SP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 UP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 P Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 SP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 UP Size: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH P Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH SP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH UP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 P Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 SP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 UP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 P Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 SP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 UP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 P Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 SP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 UP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 P Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 SP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 UP Size: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55SLC UU P Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU SP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU UP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS P Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS SP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS UP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD P Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD SP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD UP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK P Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK SP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK UP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH P Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH SP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH UP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH P Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH SP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH UP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH P Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH SP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH UP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 P Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 P Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 P Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 P Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 SP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 UP Size: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN65C UU P Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU SP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU UP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 P Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 SP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 UP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 P Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 SP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 UP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 P Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 SP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 UP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 P Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 SP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 UP Size: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS P Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS SP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS UP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 P Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 SP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 UP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 P Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 SP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 UP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 P Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 SP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 UP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 P Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 SP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 UP Size: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD P Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD SP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD UP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 P Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 SP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 UP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 P Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 SP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 UP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 P Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 SP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 UP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 P Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 SP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 UP Size: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ P Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ SP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ UP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 P Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 SP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 UP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 P Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 SP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 UP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 P Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 SP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 UP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 P Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 SP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 UP Size: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK P Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK SP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK UP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 P Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 SP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 UP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 P Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 SP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 UP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 P Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 SP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 UP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 P Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 SP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 UP Size: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH P Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH SP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH UP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 P Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 SP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 UP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 P Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 SP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 UP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 P Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 SP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 UP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 P Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 SP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 UP Size: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH P Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH SP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH UP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 P Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 SP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 UP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 P Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 SP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 UP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 P Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 SP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 UP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 P Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 SP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 UP Size: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH P Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH SP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH UP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 P Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 SP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 UP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 P Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 SP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 UP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 P Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 SP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 UP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 P Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 SP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 UP Size: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH P Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH SP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH UP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 P Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 SP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 UP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 P Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 SP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 UP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 P Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 SP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 UP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 P Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 SP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 UP Size: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65LC UU P Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU SP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU UP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 P Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 SP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 UP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 P Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 SP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 UP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 P Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 SP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 UP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 P Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 SP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 UP Size: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS P Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS SP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS UP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 P Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 SP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 UP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 P Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 SP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 UP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 P Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 SP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 UP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 P Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 SP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 UP Size: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD P Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD SP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD UP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 P Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 SP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 UP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 P Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 SP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 UP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 P Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 SP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 UP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 P Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 SP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 UP Size: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ P Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ SP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ UP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 P Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 SP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 UP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 P Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 SP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 UP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 P Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 SP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 UP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 P Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 SP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 UP Size: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK P Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK SP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK UP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 P Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 SP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 UP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 P Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 SP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 UP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 P Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 SP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 UP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 P Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 SP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 UP Size: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH P Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH SP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH UP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 P Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 SP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 UP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 P Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 SP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 UP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 P Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 SP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 UP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 P Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 SP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 UP Size: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH P Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH SP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH UP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 P Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 SP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 UP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 P Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 SP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 UP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 P Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 SP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 UP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 P Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 SP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 UP Size: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH P Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH SP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH UP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 P Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 SP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 UP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 P Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 SP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 UP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 P Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 SP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 UP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 P Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 SP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 UP Size: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH P Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH SP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH UP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 P Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 SP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 UP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 P Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 SP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 UP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 P Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 SP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 UP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 P Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 SP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 UP Size: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65SLC UU P Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU SP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU UP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS P Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS SP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS UP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD P Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD SP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD UP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK P Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK SP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK UP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH P Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH SP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH UP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH P Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH SP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH UP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH P Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH SP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH UP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 P Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 P Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 P Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 P Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 SP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 UP Size: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
LM GuidesTHK
816 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRN-C/LC/SLC Low Profile Roller Retainer LM Guide (Flange, 55-65)

Brand THK·LM Guides

Available part numbers (816)

SRN55C, SRN55LC, SRN55SLC, SRN65C, SRN65LC, SRN65SLC, SRN55C UU P, SRN55C UU SP, SRN55C UU UP, SRN55C UU C1 P + 806 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRN55CBase model (specify seal, preload, accuracy, blocks, rail length)
SRN55LCBase model (specify seal, preload, accuracy, blocks, rail length)
SRN55SLCBase model (specify seal, preload, accuracy, blocks, rail length)
SRN65CBase model (specify seal, preload, accuracy, blocks, rail length)
SRN65LCBase model (specify seal, preload, accuracy, blocks, rail length)
SRN65SLCBase model (specify seal, preload, accuracy, blocks, rail length)
SRN55C UU PSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU SPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU UPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 PSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 SPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C1 UPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 PSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 SPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU C0 UPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 PSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 SPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN1 UPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 PSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 SPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C UU CN2 UPSize: 55 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS PSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS SPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS UPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 PSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 SPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C1 UPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 PSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 SPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS C0 UPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 PSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 SPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN1 UPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 PSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 SPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SS CN2 UPSize: 55 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD PSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD SPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD UPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 PSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 SPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C1 UPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 PSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 SPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD C0 UPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 PSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 SPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN1 UPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 PSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 SPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DD CN2 UPSize: 55 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ PSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ SPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ UPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 PSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 SPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C1 UPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 PSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 SPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ C0 UPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 PSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 SPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN1 UPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 PSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 SPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZ CN2 UPSize: 55 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK PSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK SPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK UPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 PSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 SPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C1 UPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 PSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 SPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK C0 UPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 PSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 SPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN1 UPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 PSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 SPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KK CN2 UPSize: 55 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH PSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH SPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH UPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 PSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 SPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C1 UPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 PSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 SPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH C0 UPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 PSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 SPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN1 UPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 PSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 SPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C SSHH CN2 UPSize: 55 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH PSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH SPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH UPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 PSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 SPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C1 UPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 PSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 SPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH C0 UPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 PSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 SPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN1 UPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 PSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 SPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C DDHH CN2 UPSize: 55 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH PSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH SPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH UPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 PSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 SPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C1 UPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 PSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 SPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH C0 UPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 PSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 SPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN1 UPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 PSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 SPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C ZZHH CN2 UPSize: 55 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH PSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH SPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH UPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 PSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 SPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C1 UPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 PSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 SPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH C0 UPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 PSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 SPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN1 UPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 PSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 SPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55C KKHH CN2 UPSize: 55 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 185 / 131, 266
SRN55LC UU PSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU SPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU UPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 PSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 SPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C1 UPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 PSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 SPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU C0 UPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 PSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 SPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN1 UPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 PSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 SPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC UU CN2 UPSize: 55 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS PSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS SPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS UPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 PSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 SPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C1 UPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 PSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 SPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS C0 UPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 PSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 SPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN1 UPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 PSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 SPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SS CN2 UPSize: 55 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD PSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD SPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD UPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 PSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 SPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C1 UPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 PSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 SPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD C0 UPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 PSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 SPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN1 UPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 PSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 SPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DD CN2 UPSize: 55 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ PSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ SPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ UPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 PSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 SPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C1 UPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 PSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 SPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ C0 UPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 PSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 SPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN1 UPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 PSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 SPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZ CN2 UPSize: 55 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK PSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK SPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK UPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 PSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 SPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C1 UPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 PSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 SPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK C0 UPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 PSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 SPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN1 UPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 PSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 SPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KK CN2 UPSize: 55 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH PSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH SPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH UPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 PSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 SPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C1 UPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 PSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 SPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH C0 UPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 PSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 SPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN1 UPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 PSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 SPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC SSHH CN2 UPSize: 55 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH PSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH SPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH UPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 PSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 SPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C1 UPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 PSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 SPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH C0 UPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 PSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 SPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN1 UPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 PSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 SPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC DDHH CN2 UPSize: 55 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH PSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH SPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH UPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 PSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 SPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C1 UPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 PSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 SPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH C0 UPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 PSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 SPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN1 UPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 PSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 SPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC ZZHH CN2 UPSize: 55 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH PSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH SPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH UPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 PSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 SPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C1 UPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 PSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 SPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH C0 UPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 PSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 SPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN1 UPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 PSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 SPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55LC KKHH CN2 UPSize: 55 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 235 / 167, 366
SRN55SLC UU PSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU SPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU UPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC UU CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS PSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS SPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS UPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SS CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD PSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD SPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD UPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DD CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZ CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK PSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK SPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK UPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KK CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH PSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH SPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH UPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC SSHH CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH PSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH SPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH UPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC DDHH CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC ZZHH CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH PSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH SPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH UPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 PSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 PSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH C0 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 PSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN1 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 PSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 SPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN55SLC KKHH CN2 UPSize: 55 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 63 x 140 x 292 / 210, 488
SRN65C UU PSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU SPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU UPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 PSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 SPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C1 UPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 PSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 SPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU C0 UPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 PSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 SPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN1 UPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 PSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 SPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C UU CN2 UPSize: 65 | Block: C (flange) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS PSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS SPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS UPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 PSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 SPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C1 UPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 PSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 SPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS C0 UPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 PSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 SPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN1 UPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 PSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 SPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SS CN2 UPSize: 65 | Block: C (flange) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD PSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD SPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD UPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 PSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 SPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C1 UPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 PSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 SPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD C0 UPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 PSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 SPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN1 UPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 PSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 SPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DD CN2 UPSize: 65 | Block: C (flange) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ PSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ SPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ UPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 PSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 SPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C1 UPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 PSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 SPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ C0 UPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 PSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 SPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN1 UPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 PSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 SPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZ CN2 UPSize: 65 | Block: C (flange) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK PSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK SPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK UPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 PSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 SPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C1 UPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 PSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 SPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK C0 UPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 PSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 SPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN1 UPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 PSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 SPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KK CN2 UPSize: 65 | Block: C (flange) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH PSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH SPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH UPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 PSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 SPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C1 UPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 PSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 SPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH C0 UPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 PSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 SPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN1 UPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 PSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 SPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C SSHH CN2 UPSize: 65 | Block: C (flange) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH PSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH SPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH UPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 PSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 SPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C1 UPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 PSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 SPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH C0 UPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 PSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 SPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN1 UPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 PSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 SPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C DDHH CN2 UPSize: 65 | Block: C (flange) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH PSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH SPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH UPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 PSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 SPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C1 UPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 PSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 SPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH C0 UPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 PSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 SPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN1 UPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 PSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 SPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C ZZHH CN2 UPSize: 65 | Block: C (flange) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH PSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH SPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH UPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 PSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 SPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C1 UPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 PSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 SPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH C0 UPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 PSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 SPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN1 UPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 PSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 SPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65C KKHH CN2 UPSize: 65 | Block: C (flange) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 244.9 / 219, 441
SRN65LC UU PSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU SPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU UPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 PSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 SPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C1 UPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 PSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 SPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU C0 UPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 PSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 SPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN1 UPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 PSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 SPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC UU CN2 UPSize: 65 | Block: LC (flange, long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS PSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS SPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS UPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 PSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 SPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C1 UPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 PSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 SPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS C0 UPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 PSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 SPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN1 UPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 PSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 SPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SS CN2 UPSize: 65 | Block: LC (flange, long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD PSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD SPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD UPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 PSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 SPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C1 UPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 PSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 SPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD C0 UPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 PSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 SPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN1 UPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 PSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 SPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DD CN2 UPSize: 65 | Block: LC (flange, long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ PSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ SPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ UPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 PSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 SPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C1 UPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 PSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 SPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ C0 UPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 PSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 SPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN1 UPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 PSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 SPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZ CN2 UPSize: 65 | Block: LC (flange, long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK PSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK SPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK UPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 PSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 SPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C1 UPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 PSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 SPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK C0 UPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 PSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 SPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN1 UPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 PSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 SPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KK CN2 UPSize: 65 | Block: LC (flange, long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH PSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH SPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH UPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 PSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 SPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C1 UPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 PSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 SPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH C0 UPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 PSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 SPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN1 UPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 PSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 SPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC SSHH CN2 UPSize: 65 | Block: LC (flange, long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH PSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH SPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH UPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 PSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 SPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C1 UPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 PSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 SPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH C0 UPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 PSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 SPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN1 UPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 PSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 SPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC DDHH CN2 UPSize: 65 | Block: LC (flange, long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH PSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH SPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH UPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 PSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 SPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C1 UPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 PSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 SPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH C0 UPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 PSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 SPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN1 UPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 PSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 SPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC ZZHH CN2 UPSize: 65 | Block: LC (flange, long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH PSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH SPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH UPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 PSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 SPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C1 UPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 PSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 SPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH C0 UPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 PSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 SPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN1 UPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 PSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 SPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65LC KKHH CN2 UPSize: 65 | Block: LC (flange, long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 303 / 278, 599
SRN65SLC UU PSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU SPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU UPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC UU CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: UU (end seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS PSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS SPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS UPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SS CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SS (end+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD PSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD SPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD UPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DD CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DD (double+side+inner seal) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZ CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZ (SS+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK PSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK SPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK UPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KK CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KK (DD+metal scraper) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH PSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH SPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH UPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC SSHH CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: SSHH (SS+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH PSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH SPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH UPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC DDHH CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: DDHH (DD+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC ZZHH CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: ZZHH (ZZ+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH PSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH SPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH UPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: Normal | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 PSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C1 (light) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 PSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH C0 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: C0 (medium) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 PSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN1 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN1 (heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 PSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: P (precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 SPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: SP (super precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811
SRN65SLC KKHH CN2 UPSize: 65 | Block: SLC (flange, x-long) | Seal: KKHH (KK+LaCS) | Preload: CN2 (extra heavy) | Accuracy: UP (ultra precision) | MxWxL mm / C, C0 kN: 75 x 170 x 380 / 352, 811

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
