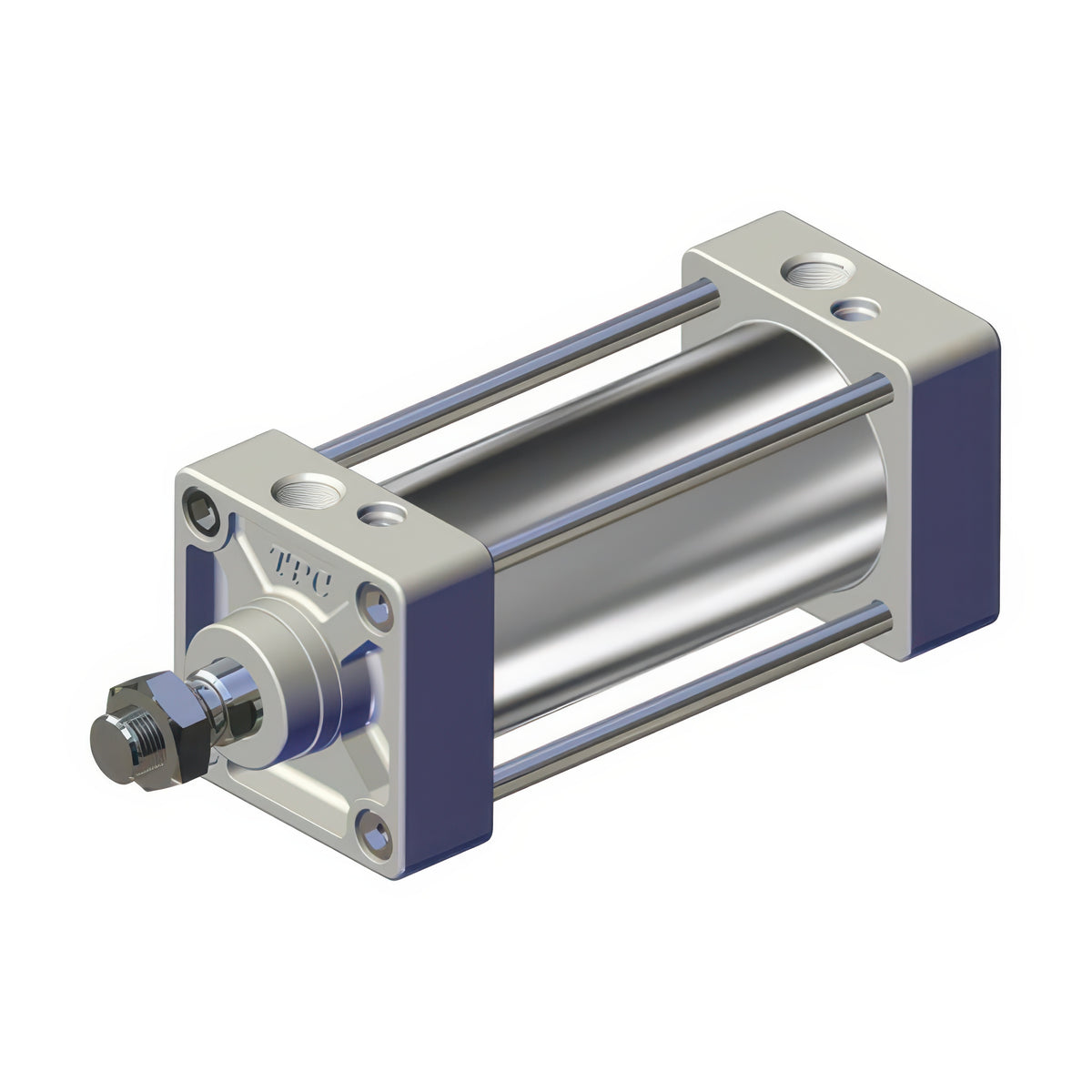

TPC Mechatronics 5L-AM2 Long-Life Premium Medium Pneumatic Cylinder (Basic Mount)

TPC Mechatronics 5L-AM2 Long-Life Premium Medium Pneumatic Cylinder (Basic Mount)

The 5L-AM2 is the long-life premium version of the AM2 double-acting medium pneumatic cylinder, available in bores 40 to 100 mm.

Key features

  • A special grease, wear-resistant special packings and a lubrication-retaining device extend service life to five times or more that of the standard AM2 under the maker's test conditions, cutting maintenance
  • External dimensions are identical to the AM2, and mounting brackets and parts are interchangeable with the AM2
  • Codes 5L-AM2B and 5L-AMD2B denote the basic mount without and with a built-in magnet for auto switches
  • An optimized cushion design and special seals reduce sudden starts and air leakage

Specifications

Acting Double
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Piston speed 50-500 mm/s
Cushion Air cushion (R/H/N options)
Lubrication Not required
Ambient/fluid temperature 5-60 C
Service life 5x or more vs. standard AM2 (maker test conditions)
5L-AM2B40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Acting: Double | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AM2B50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Acting: Double | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AM2B63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Acting: Double | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AM2B80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Acting: Double | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AM2B100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Acting: Double | Magnet: without auto switch magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AMD2B40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AMD2B50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AMD2B63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AMD2B80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
5L-AMD2B100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Acting: Double | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, T center trunnion, D double clevis, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion (R/H/N options) | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Service life: 5x or more vs. standard AM2 (maker test conditions)
