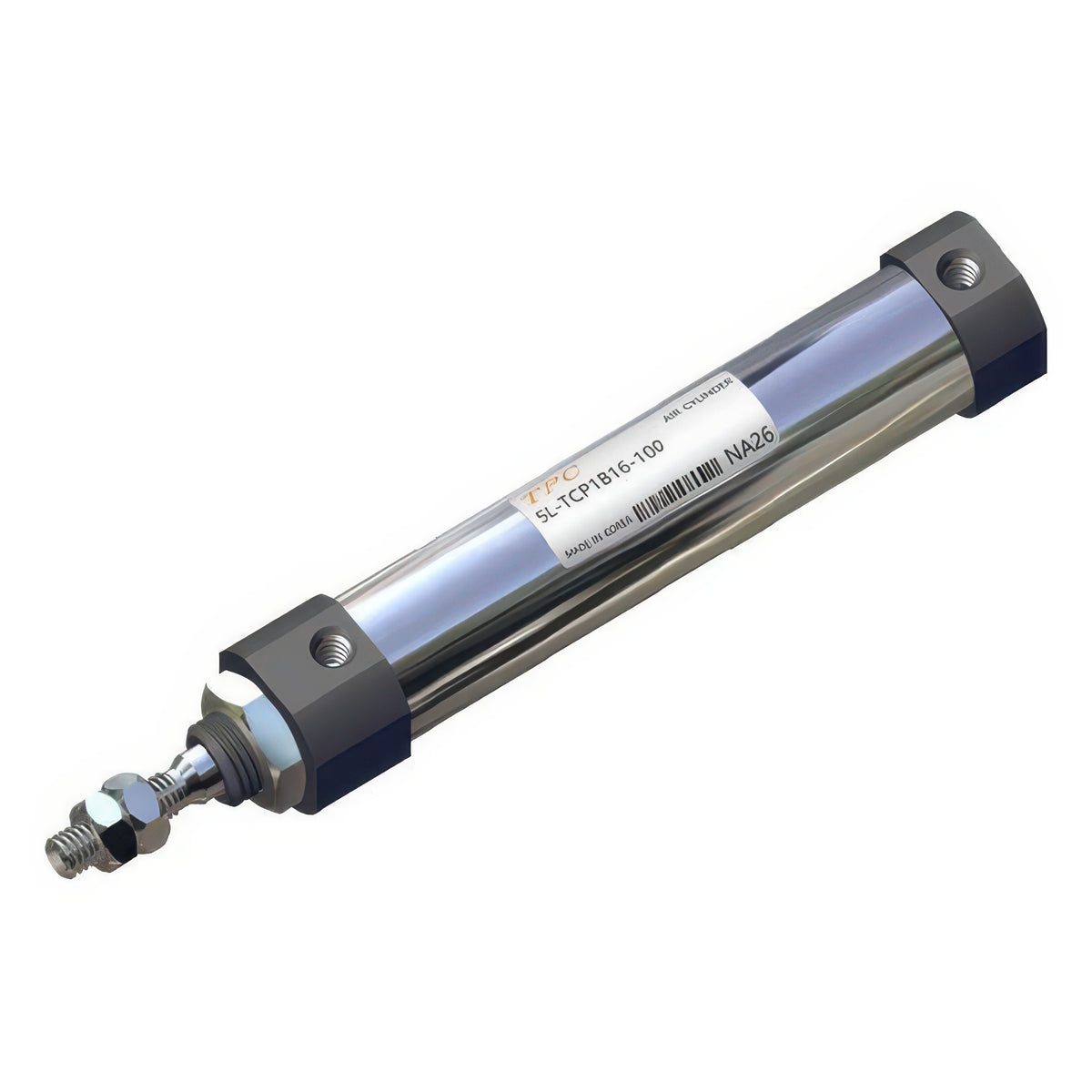

TPC Mechatronics 5L-TCP1 Series Long-Life Round-Body Mini Pneumatic Cylinder (Double Acting)

TPC Mechatronics 5L-TCP1 Series Long-Life Round-Body Mini Pneumatic Cylinder (Double Acting)

The 5L-TCP1 series is a long-life premium version of the TCP1 round-body mini pneumatic cylinder, double acting with a single rod, in bore sizes 6, 10 and 16 mm.

Key features

  • A special grease, special wear-resistant packings and a lubricant-retaining device give more than five times the service life of the standard product under the maker's test conditions
  • Side-load resistance is strengthened, high-speed operation is supported and external dimensions are the same as the renewed TCP1
  • Mounting styles are basic, axial foot, rod-side flange and double clevis, with an optional K environment-resistant version for fine powder and contaminants
  • A magnet and rubber cushions are built in, and it operates up to 0.7 MPa without lubrication at 5 to 60 C

Specifications

Bore 6 mm
Rod dia. 3 mm
Rod thread M3x0.5
Mounting thread M6x1
Acting Double, single rod
Min. operating pressure 0.12 MPa
Standard strokes 5-100 mm
Stroke tolerance 0 to +1.0 mm
Port size M5x0.8
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient/fluid temperature 5-60 C
5L-TCP1B6 Mounting: Basic | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in
5L-TCP1L6 Mounting: Axial foot | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in
5L-TCP1F6 Mounting: Rod-side flange | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in
Pneumatic CylindersTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics 5L-TCP1 Series Long-Life Round-Body Mini Pneumatic Cylinder (Double Acting)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (3)

5L-TCP1B6, 5L-TCP1L6, 5L-TCP1F6

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5L-TCP1B6Mounting: Basic | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in
5L-TCP1L6Mounting: Axial foot | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in
5L-TCP1F6Mounting: Rod-side flange | Bore: 6 mm | Rod dia.: 3 mm | Rod thread: M3x0.5 | Mounting thread: M6x1 | Acting: Double, single rod | Min. operating pressure: 0.12 MPa | Standard strokes: 5-100 mm | Stroke tolerance: 0 to +1.0 mm | Port size: M5x0.8 | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Ambient/fluid temperature: 5-60 C | Piston speed: 50-750 mm/s | Cushion: Rubber cushion | Lubrication: Not required | Magnet: Built-in

Need a different model, or a part not listed here? Send us your parts list →
