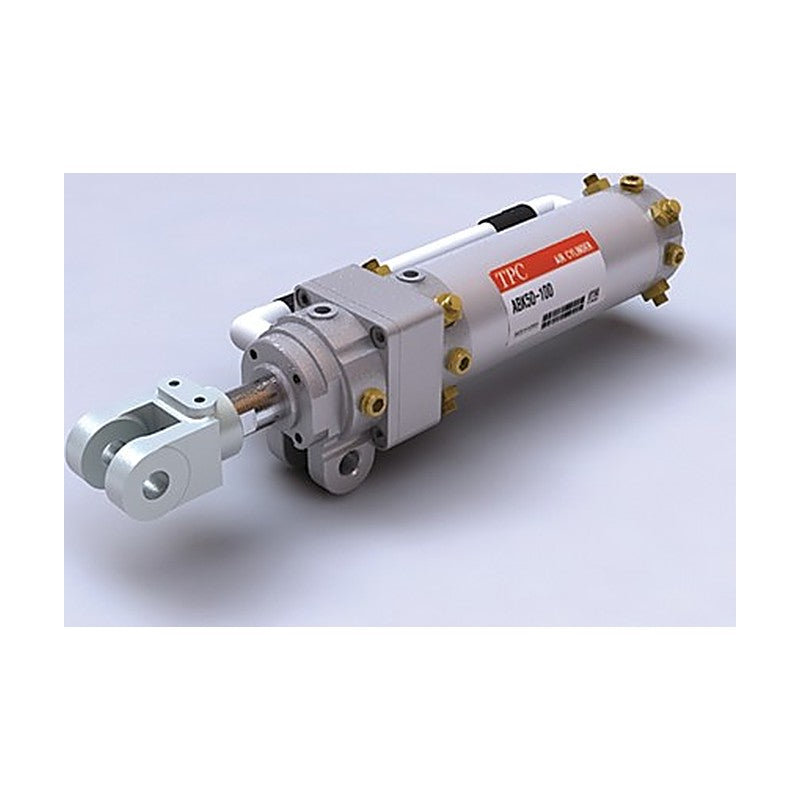

TPC Mechatronics ABK Series Pneumatic Clamp Cylinder with One-Way Lock (Bore 32 to 63 mm)

TPC Mechatronics ABK Series Pneumatic Clamp Cylinder with One-Way Lock (Bore 32 to 63 mm)

The ABK series is a pneumatic clamp cylinder with a built-in spring lock that holds the piston in one direction (forward or backward) to prevent drops and hold position.

Key features

  • It is available in bores of 32, 40, 50 and 63 mm with clevis widths of 16.5 mm (ABKA) and 19.5 mm (ABKB)
  • Air cushions are standard at both the rod and head ends, a speed controller is built in and the piping position can be chosen freely
  • A strong coil scraper removes the need for a bellows, and strong-magnetic-field auto switches can be fitted
  • The lock releases at 0.2 MPa or more and is intended for holding a stopped position, not for intermediate stops during motion

Specifications

Bore 32, 40, 50, 63 mm
Strokes 50, 75, 100, 125, 150 mm
Acting Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion Air cushion, both ends
Lubrication Not required
Stroke tolerance 0/+1.0 mm
ABKA Clevis width: 16.5 mm | Bore: 32, 40, 50, 63 mm | Strokes: 50, 75, 100, 125, 150 mm | Acting: Double acting, single rod | Fluid: Air | Proof pressure: 1.5 MPa | Max. operating pressure: 1.0 MPa | Min. operating pressure: 0.2 MPa | Ambient and fluid temperature: 5 to 60 C | Piston speed: 50 to 500 mm/s | Cushion: Air cushion, both ends | Lubrication: Not required | Stroke tolerance: 0/+1.0 mm | Speed controller: Built-in | Mounting: Double clevis | Lock: Spring lock, one direction (forward or backward) | Lock release pressure: 0.2 MPa or more | Lock holding force: 471 N (bore 32), 801 N (bore 40), 1519 N (bore 50), 1974 N (bore 63), +/-3%
ABKB Clevis width: 19.5 mm | Bore: 32, 40, 50, 63 mm | Strokes: 50, 75, 100, 125, 150 mm | Acting: Double acting, single rod | Fluid: Air | Proof pressure: 1.5 MPa | Max. operating pressure: 1.0 MPa | Min. operating pressure: 0.2 MPa | Ambient and fluid temperature: 5 to 60 C | Piston speed: 50 to 500 mm/s | Cushion: Air cushion, both ends | Lubrication: Not required | Stroke tolerance: 0/+1.0 mm | Speed controller: Built-in | Mounting: Double clevis | Lock: Spring lock, one direction (forward or backward) | Lock release pressure: 0.2 MPa or more | Lock holding force: 471 N (bore 32), 801 N (bore 40), 1519 N (bore 50), 1974 N (bore 63), +/-3%
