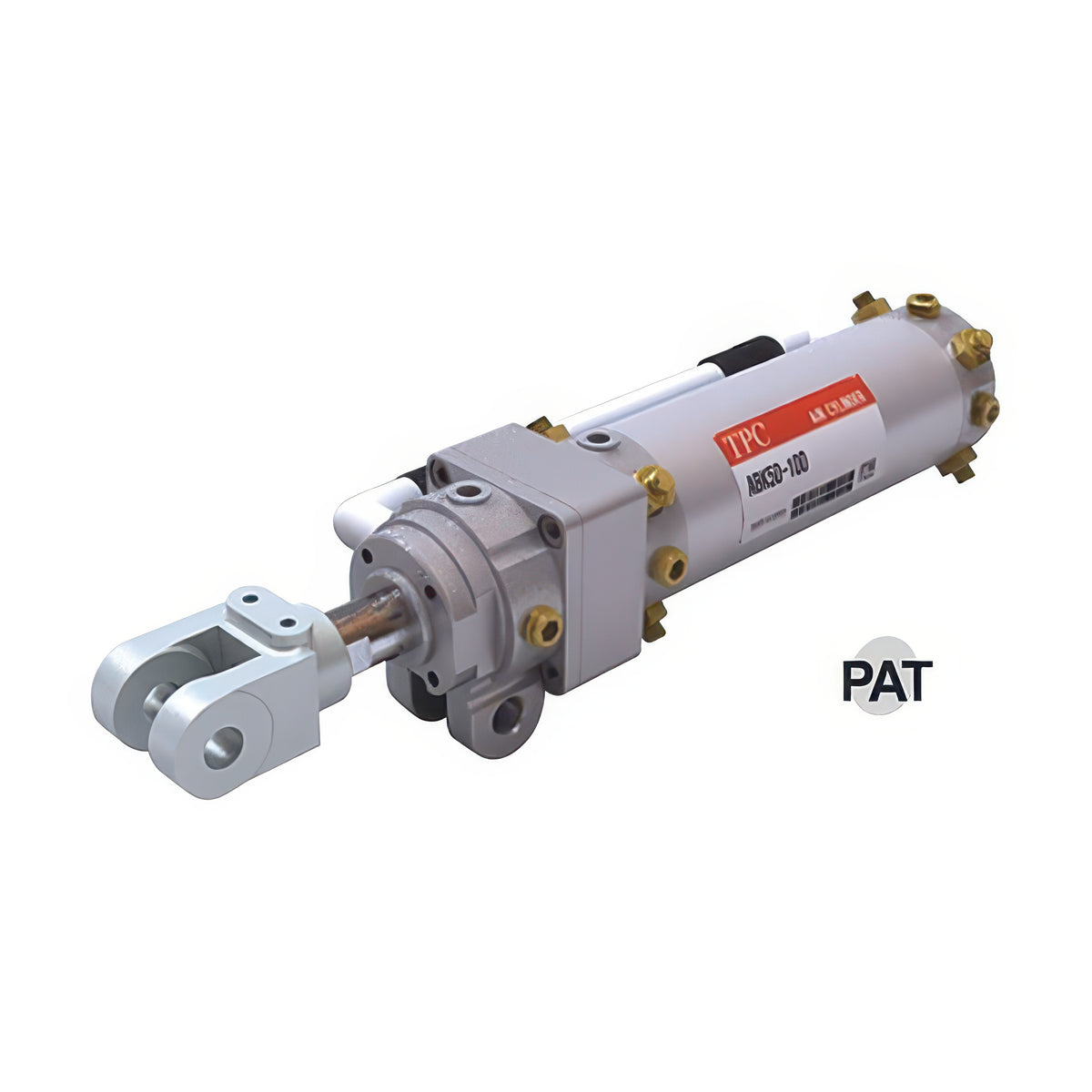

TPC Mechatronics ABK Lock Clamp Cylinder (Extend or Retract Lock)

TPC Mechatronics ABK Lock Clamp Cylinder (Extend or Retract Lock)

The ABK is a double-acting clamp cylinder with a built-in spring lock that holds the rod in one direction, in bores 32, 40, 50 and 63 mm.

Key features

  • The lock prevents drops and maintains position if air pressure is lost, and can be specified for the extend or retract direction
  • Air cushions on both the rod and head sides are standard
  • Clevis widths are standardized at 16.5 mm and 19.5 mm
  • Strong-field auto switches can be fitted, and a strong coil scraper removes spatter without bellows

Specifications

Standard strokes 50, 75, 100, 125, 150 mm
Acting Double, single rod
Max pressure 1.0 MPa
Min pressure 0.2 MPa
Proof pressure 1.5 MPa
Speed 50-500 mm/s
Cushion air cushion both ends
Speed controller built in
Mounting 2-ear clevis
ABKA32 Bore: 32 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKA40 Bore: 40 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKA50 Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKA63 Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKB32 Bore: 32 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKB40 Bore: 40 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKB50 Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKB63 Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKGA32 Bore: 32 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKGA40 Bore: 40 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKGA50 Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKGA63 Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKGB32 Bore: 32 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKGB40 Bore: 40 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKGB50 Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKGB63 Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKPA50 Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKPA63 Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKPB50 Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKPB63 Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
Clamp CylindersTPC Mechatronics
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ABK Lock Clamp Cylinder (Extend or Retract Lock)

Brand TPC Mechatronics·Clamp Cylinders

Available part numbers (20)

ABKA32, ABKA40, ABKA50, ABKA63, ABKB32, ABKB40, ABKB50, ABKB63, ABKGA32, ABKGA40 + 10 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABKA32Bore: 32 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKA40Bore: 40 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKA50Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKA63Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKB32Bore: 32 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKB40Bore: 40 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKB50Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKB63Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKGA32Bore: 32 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKGA40Bore: 40 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKGA50Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKGA63Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKGB32Bore: 32 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 471 N (48 kg) | Weight: 0.55 kg + 0.02 kg per 25 mm stroke
ABKGB40Bore: 40 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 801 N (81.7 kg) | Weight: 0.99 kg + 0.04 kg per 25 mm stroke
ABKGB50Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKGB63Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: general magnet (strong-field switches) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKPA50Bore: 50 mm | Clevis width: A = 16.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKPA63Bore: 63 mm | Clevis width: A = 16.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
ABKPB50Bore: 50 mm | Clevis width: B = 19.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1519 N (155 kg) | Weight: 1.46 kg + 0.11 kg per 25 mm stroke
ABKPB63Bore: 63 mm | Clevis width: B = 19.5 mm | Magnet: strong magnetic field magnet (lock F type only) | Standard strokes: 50, 75, 100, 125, 150 mm | Acting: Double, single rod | Max pressure: 1.0 MPa | Min pressure: 0.2 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis | Lock: spring lock, one direction (B retract or F extend), release pressure 0.2 MPa or more, holding force 1974 N (200 kg) | Weight: 1.95 kg + 0.13 kg per 25 mm stroke
