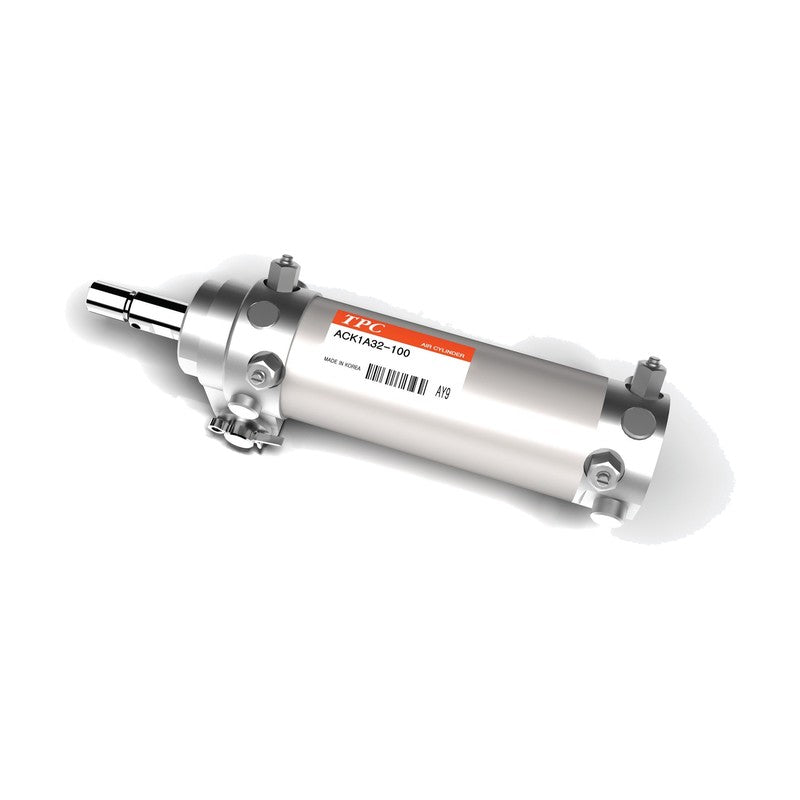

TPC Mechatronics ACK1 Series Pneumatic Clamp Cylinder (Bore 32, 80 mm)

TPC Mechatronics ACK1 Series Pneumatic Clamp Cylinder (Bore 32, 80 mm)

The ACK1 series is a light, compact pneumatic clamp cylinder for bores of 32 and 80 mm that can be used in strong-magnetic-field environments.

Key features

  • It runs without lubrication, can be disassembled and has a built-in speed controller with a free choice of piping direction
  • A strong coil scraper removes the need for a bellows
  • Various auto switches can be fitted, including standard (D-C73K, D-A54K), low-magnetic-field (W2P) and strong-magnetic-field (D-P7 series) types
  • Operating pressure is 0.05 to 1.0 MPa with air cushions at both ends and double-clevis mounting

Specifications

Clevis width 16.0 mm
Strokes 50, 75, 100, 125, 150, 200, 250, 300 mm
Port Rc(PT) 1/8
Rod end thread M10x1.25
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion Air cushion, both ends
Lubrication Not required
ACK1 Version: Standard, bore 32 mm (general magnet built in) | Clevis width: 16.0 mm | Strokes: 50, 75, 100, 125, 150, 200, 250, 300 mm | Port: Rc(PT) 1/8 | Rod end thread: M10x1.25 | Fluid: Air | Proof pressure: 1.5 MPa | Max. operating pressure: 1.0 MPa | Min. operating pressure: 0.05 MPa | Ambient and fluid temperature: 5 to 60 C | Piston speed: 50 to 500 mm/s | Cushion: Air cushion, both ends | Lubrication: Not required | Stroke tolerance: 0 to 1.0 mm | Speed controller: Built-in | Mounting: Double clevis (pin and split pin included) | Base mass: 0.42 kg | Added mass per 25 mm stroke: 0.06 kg
ACKP1 Version: Auto switch type, bore 32 mm (strong magnet built in, for D-P7 series switches) | Clevis width: 16.0 mm | Strokes: 50, 75, 100, 125, 150, 200, 250, 300 mm | Port: Rc(PT) 1/8 | Rod end thread: M10x1.25 | Fluid: Air | Proof pressure: 1.5 MPa | Max. operating pressure: 1.0 MPa | Min. operating pressure: 0.05 MPa | Ambient and fluid temperature: 5 to 60 C | Piston speed: 50 to 500 mm/s | Cushion: Air cushion, both ends | Lubrication: Not required | Stroke tolerance: 0 to 1.0 mm | Speed controller: Built-in | Mounting: Double clevis (pin and split pin included) | Base mass: 0.42 kg | Added mass per 25 mm stroke: 0.06 kg
