TPC Mechatronics ACK1 Clamp Cylinder, Bore 80 mm

TPC Mechatronics ACK1 Clamp Cylinder, Bore 80 mm

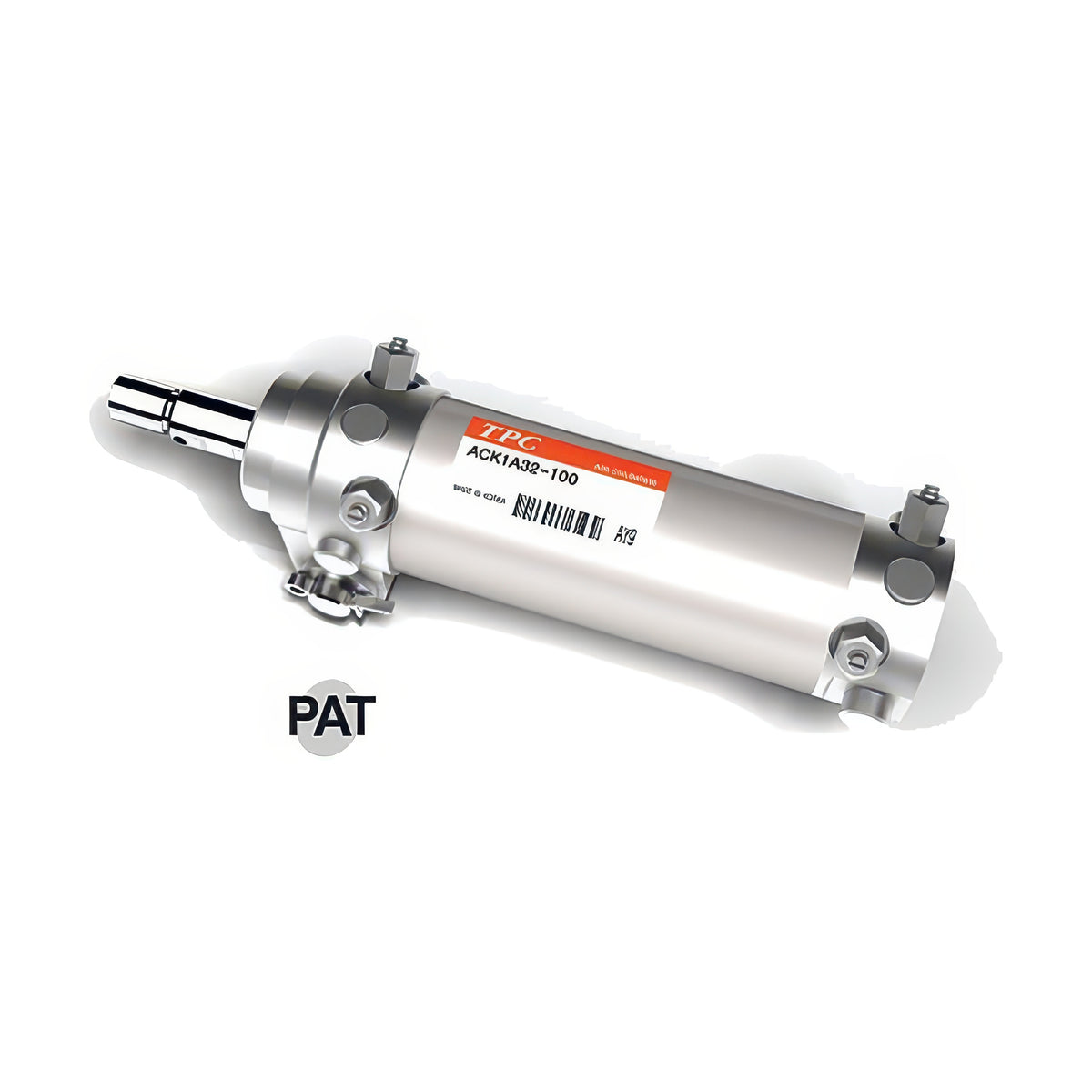

The ACK1 80 mm clamp cylinder is a lubrication-free clevis-mounted cylinder for welding jigs and clamping fixtures, offered in clevis types A, B and C.

Key features

  • It can be used in strong magnetic field environments when fitted with the strong-field magnet and switches
  • A speed controller is built in and the port direction can be selected freely
  • A strong coil scraper removes spatter, so no bellows are required
  • The cylinder is light, compact and can be disassembled

Specifications

Bore 80 mm
Rod diameter 25 mm
Port Rc 3/8
Standard strokes 50, 75, 100, 125, 150, 175, 200, 250, 300 mm
Acting Double
Max pressure 1.0 MPa
Min pressure 0.05 MPa
Proof pressure 1.5 MPa
Speed 50-500 mm/s
Cushion air cushion both ends
Speed controller built in
Mounting 2-ear clevis (pin and split pin)
ACK1A80 Bore: 80 mm | Clevis type: A, clevis width 16.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACK1B80 Bore: 80 mm | Clevis type: B, clevis width 19.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACK1C80 Bore: 80 mm | Clevis type: C, clevis width 28 mm, pin 18 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: no magnet | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKP1A80 Bore: 80 mm | Clevis type: A, clevis width 16.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: magnet for strong magnetic field switches (P70R/P74R/W2P) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKP1B80 Bore: 80 mm | Clevis type: B, clevis width 19.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: magnet for strong magnetic field switches (P70R/P74R/W2P) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKP1C80 Bore: 80 mm | Clevis type: C, clevis width 28 mm, pin 18 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: magnet for strong magnetic field switches (P70R/P74R/W2P) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKG1A80 Bore: 80 mm | Clevis type: A, clevis width 16.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: general magnet (C73K/A54K) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKG1B80 Bore: 80 mm | Clevis type: B, clevis width 19.5 mm, pin 12 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: general magnet (C73K/A54K) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
ACKG1C80 Bore: 80 mm | Clevis type: C, clevis width 28 mm, pin 18 mm | Rod diameter: 25 mm | Port: Rc 3/8 | Magnet: general magnet (C73K/A54K) | Standard strokes: 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max pressure: 1.0 MPa | Min pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Speed: 50-500 mm/s | Cushion: air cushion both ends | Speed controller: built in | Mounting: 2-ear clevis (pin and split pin) | Weight: 3.86 kg + 0.13 kg per 25 mm stroke
