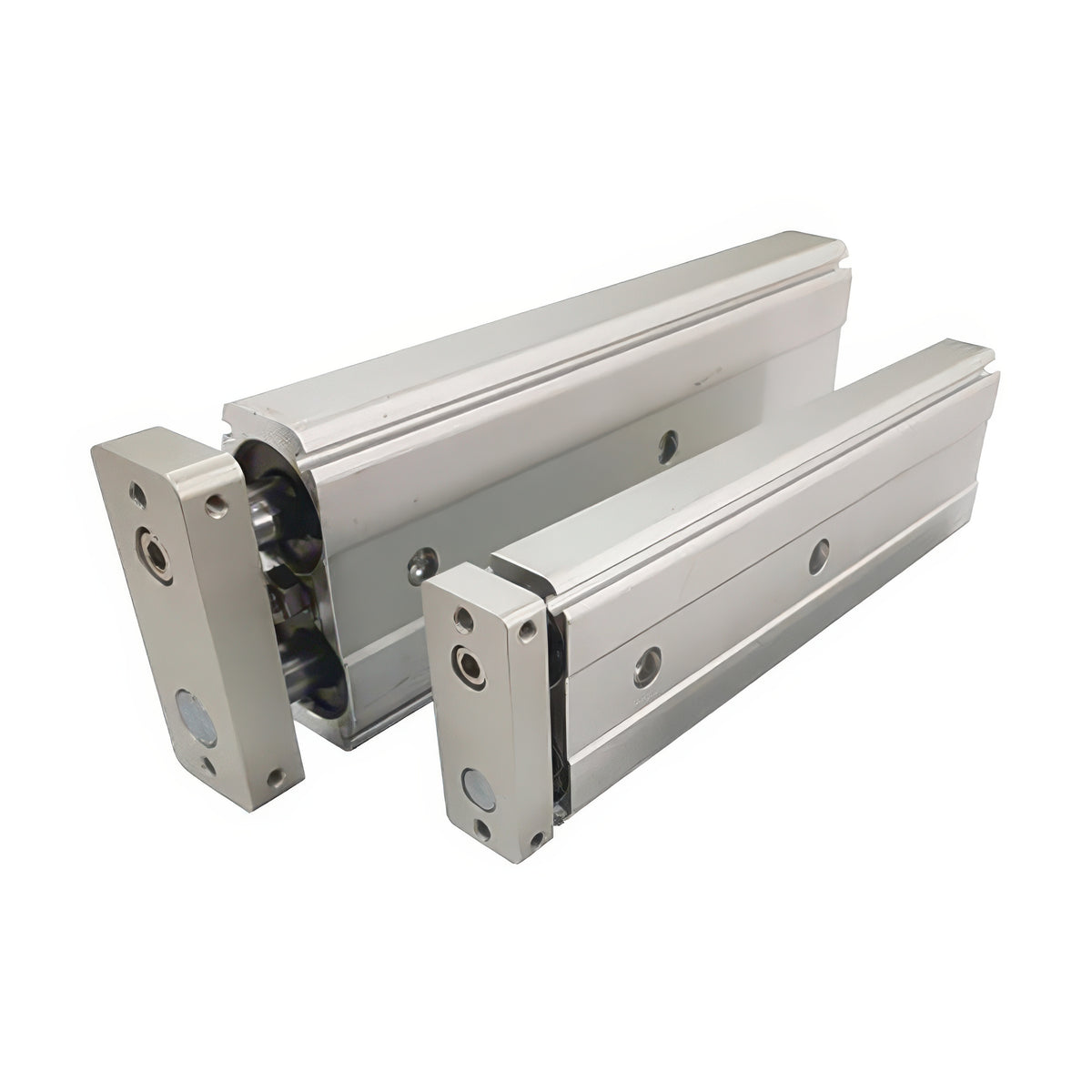

TPC Mechatronics ADRC Compact Dual Rod Cylinder, Bore 6-32 mm

TPC Mechatronics ADRC Compact Dual Rod Cylinder, Bore 6-32 mm

The ADRC series is a compact dual-rod pneumatic cylinder.

Key features

  • Two parallel piston rods give non-rotation and twice the output of a single-rod cylinder of the same bore
  • Workpieces can be mounted on three faces, and the retract-end stroke can be adjusted from 0 to -5 mm
  • ADRCM models use slide bearings and ADRCL models use ball bushings
  • A magnet is built in for auto switches, and axial piping is available on bores 6 and 10

Specifications

Stroke adjustment 0 to -5 mm
Acting Double
Max operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Cushion Rubber both ends
ADRCM06 Bore: 6 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 4 mm | Port: M3x0.5 | Standard strokes: 10, 20, 30, 40, 50 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in | Axial piping option: P (bore 6 and 10 only)
ADRCM10 Bore: 10 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 6 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in | Axial piping option: P (bore 6 and 10 only)
ADRCM16 Bore: 16 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 8 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCM20 Bore: 20 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 10 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCM25 Bore: 25 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 12 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCM32 Bore: 32 mm (x2 rods) | Bearing: Slide bearing (M) | Rod diameter: 16 mm | Port: Rc1/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCL06 Bore: 6 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 4 mm | Port: M3x0.5 | Standard strokes: 10, 20, 30, 40, 50 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in | Axial piping option: P (bore 6 and 10 only)
ADRCL10 Bore: 10 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 6 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in | Axial piping option: P (bore 6 and 10 only)
ADRCL16 Bore: 16 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 8 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCL20 Bore: 20 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 10 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCL25 Bore: 25 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 12 mm | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
ADRCL32 Bore: 32 mm (x2 rods) | Bearing: Ball bushing (L) | Rod diameter: 16 mm | Port: Rc1/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Stroke adjustment: 0 to -5 mm | Acting: Double | Max operating pressure: 0.7 MPa | Proof pressure: 1.05 MPa | Cushion: Rubber both ends | Magnet built in
