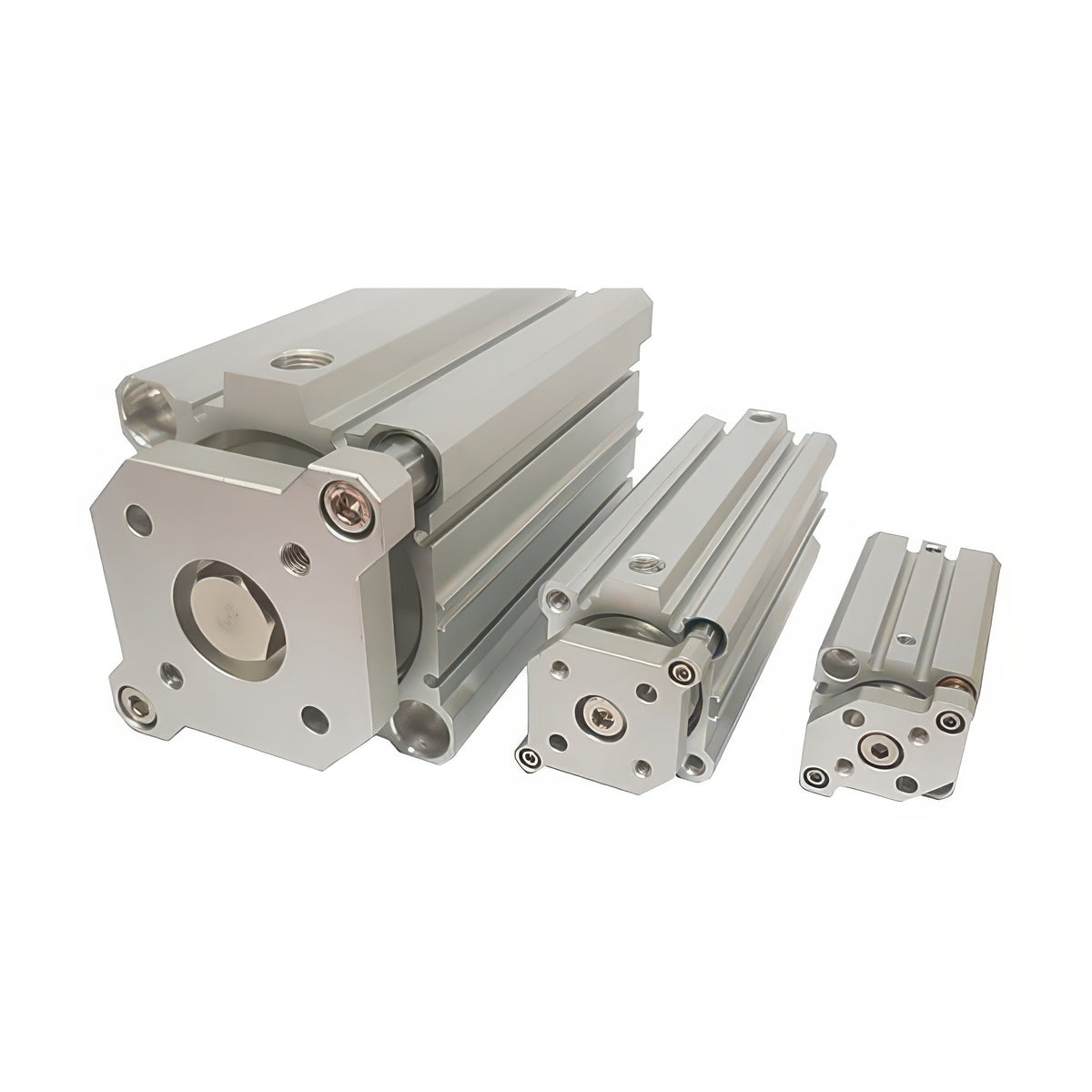

TPC Mechatronics AGQ Square-Tube Guided Rod Cylinder, Bore 12-100 mm

TPC Mechatronics AGQ Square-Tube Guided Rod Cylinder, Bore 12-100 mm

The AGQ series is a thin square-tube compact cylinder with guide rods and an end plate.

Key features

  • The guide rods raise lateral load capacity and keep the plate from rotating
  • Workpieces can be mounted directly on the plate, and the guide rods have a special coating for durability
  • Mounting is through-hole (B) or both-end tapped (A); on bores 12 to 25 the tapped body also serves as through-hole
  • AGDQ models have a built-in magnet for auto switches

Specifications

Acting Double, single rod
Max operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Cushion Rubber both ends
Lubrication Not required
AGQA12 Bore: 12 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA16 Bore: 16 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA20 Bore: 20 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA25 Bore: 25 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA32 Bore: 32 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA40 Bore: 40 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA50 Bore: 50 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA63 Bore: 63 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA80 Bore: 80 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQA100 Bore: 100 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: Without auto switch magnet | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB32 Bore: 32 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB40 Bore: 40 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB50 Bore: 50 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB63 Bore: 63 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB80 Bore: 80 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGQB100 Bore: 100 mm | Mounting: B through-hole (standard) | Version: Without auto switch magnet | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA12 Bore: 12 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA16 Bore: 16 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA20 Bore: 20 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA25 Bore: 25 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA32 Bore: 32 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA40 Bore: 40 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA50 Bore: 50 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA63 Bore: 63 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA80 Bore: 80 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQA100 Bore: 100 mm | Mounting: A both-end tapped (also usable as through-hole on 12-25) | Version: With built-in magnet for auto switch (D) | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB32 Bore: 32 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB40 Bore: 40 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB50 Bore: 50 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB63 Bore: 63 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB80 Bore: 80 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
AGDQB100 Bore: 100 mm | Mounting: B through-hole (standard) | Version: With built-in magnet for auto switch (D) | Port: Rc3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-300 mm/s | Cushion: Rubber both ends | Lubrication: Not required
Pneumatic CylindersTPC Mechatronics
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AGQ Square-Tube Guided Rod Cylinder, Bore 12-100 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (32)

AGQA12, AGQA16, AGQA20, AGQA25, AGQA32, AGQA40, AGQA50, AGQA63, AGQA80, AGQA100 + 22 more — see full table ↓
