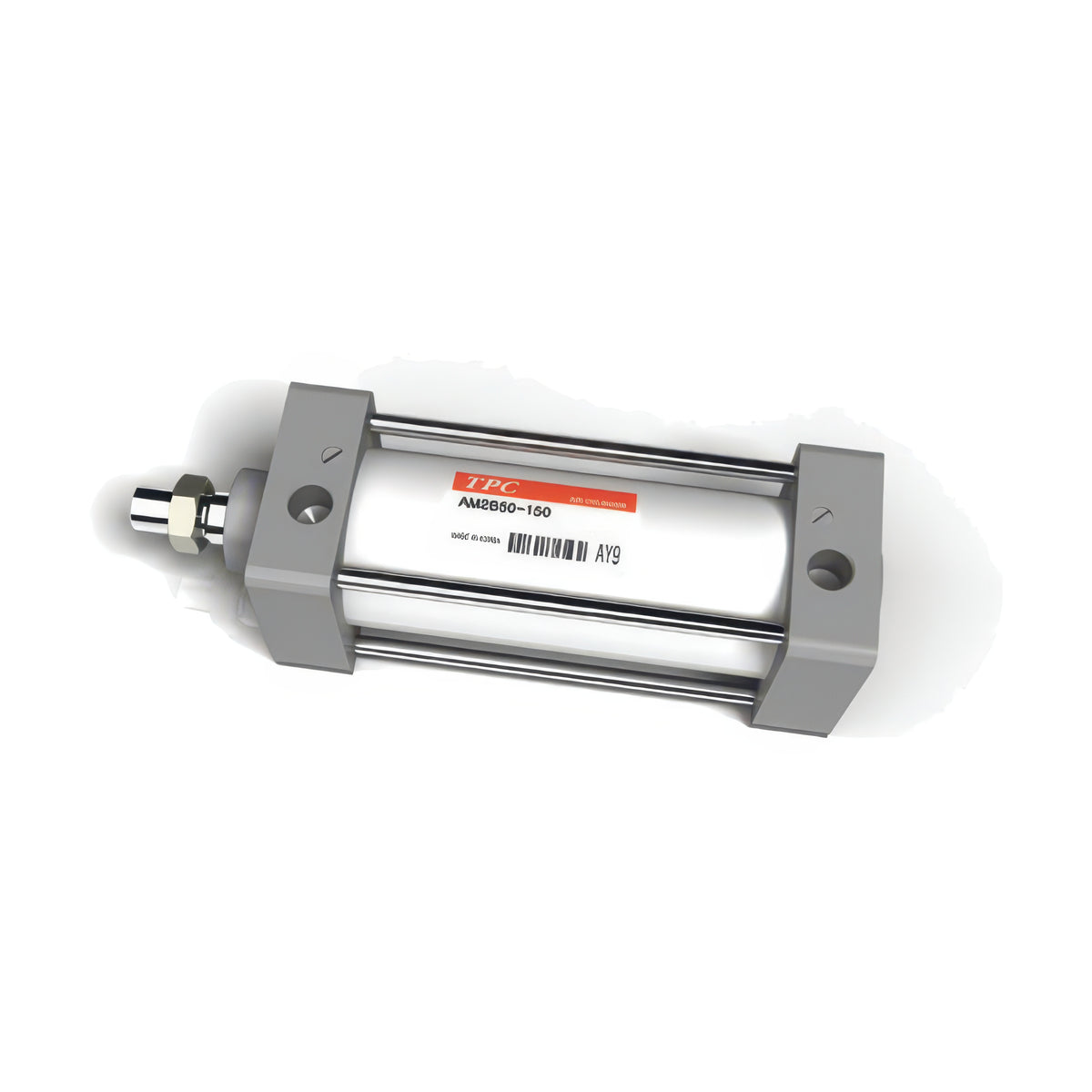

TPC Mechatronics AM2 Series Medium Pneumatic Cylinder (Double Acting, Basic Mount)

TPC Mechatronics AM2 Series Medium Pneumatic Cylinder (Double Acting, Basic Mount)

The AM2 series is a double-acting medium-bore pneumatic cylinder with built-in socket tie rods, offered in bores 40 to 100 mm.

Key features

  • Codes AM2BN and AMD2BN denote the basic (B) mount, non-lube (N) type without and with a built-in magnet for auto switches
  • A high-performance cushion packing prevents sudden starts caused by pressure differences, and the cushion valve sits on the same face as the port for easy adjustment
  • Improved sealing reduces air leakage, and a longer bush engagement reduces piston rod deflection
  • Compact switches (W8/W9/W20H) and the strong-magnetic-field switch W2PL can be mounted
  • Order stroke, cushion, bellows, rod-end and switch options with the full ordering code

Specifications

Acting Double
Type N non-lube
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Piston speed 50-500 mm/s
Cushion Air cushion both ends (R/H/N options)
Ambient/fluid temperature 5-60 C
AM2BN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm standard range (long stroke to 800 mm on request) | Acting: Double | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AM2BN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Max stroke: 600 mm standard range (long stroke to 1200 mm on request) | Acting: Double | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AM2BN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Max stroke: 600 mm standard range (long stroke to 1200 mm on request) | Acting: Double | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AM2BN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Max stroke: 750 mm standard range (long stroke to 1400 mm on request) | Acting: Double | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AM2BN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Max stroke: 750 mm standard range (long stroke to 1400 mm on request) | Acting: Double | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AMD2BN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm standard range (long stroke to 800 mm on request) | Acting: Double | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AMD2BN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Max stroke: 600 mm standard range (long stroke to 1200 mm on request) | Acting: Double | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AMD2BN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600 mm | Max stroke: 600 mm standard range (long stroke to 1200 mm on request) | Acting: Double | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AMD2BN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Max stroke: 750 mm standard range (long stroke to 1400 mm on request) | Acting: Double | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
AMD2BN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700 mm | Max stroke: 750 mm standard range (long stroke to 1400 mm on request) | Acting: Double | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion, TA/TB trunnion close-mounted | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Air cushion both ends (R/H/N options) | Ambient/fluid temperature: 5-60 C
