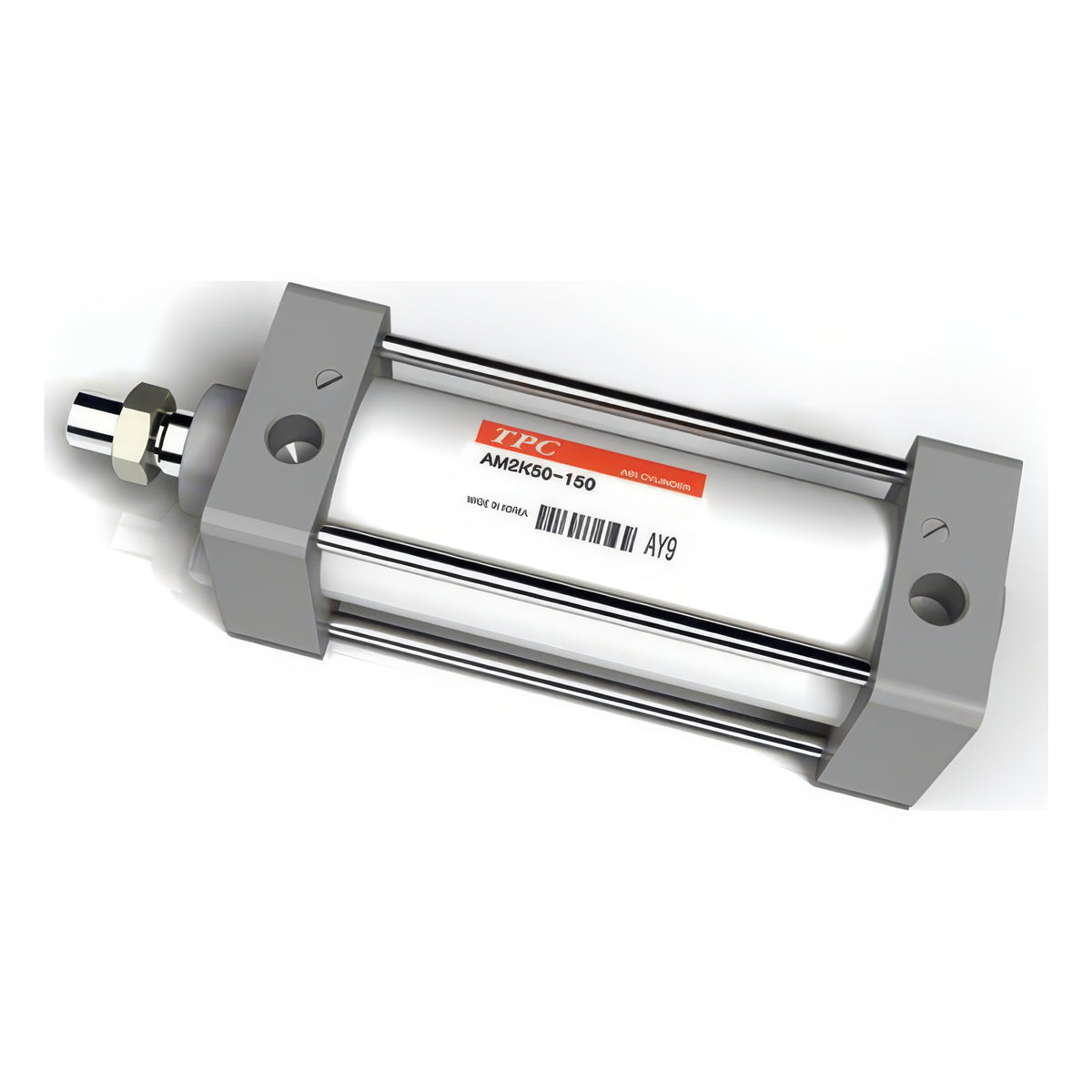

TPC Mechatronics AM2KW Series Rod Non-Rotating Double-Rod Pneumatic Cylinder (Basic Mount)

TPC Mechatronics AM2KW Series Rod Non-Rotating Double-Rod Pneumatic Cylinder (Basic Mount)

The AM2KW series is a rod non-rotating double-rod version of the AM2 medium pneumatic cylinder, offered in bores 40, 50 and 63 mm.

Key features

  • The piston rod is guided against rotation with an accuracy of +/-0.5 degrees, so rod-end tooling stays aligned without an external guide
  • It supports high-speed operation with long service life, and mounting dimensions are the same as the standard cylinder
  • Codes AM2KWB and AMD2KWB denote the basic mount without and with a built-in magnet; tie-rod mounted auto switches can be fitted
  • Avoid applying rotating torque to the piston rod when tightening rod-end fittings

Specifications

Acting Double
Rod double rod (both ends)
Non-rotating accuracy +/-0.5 deg
Allowable rotating torque 4.5 kgf.cm or less
Mounting options B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Piston speed 50-500 mm/s
Cushion Yes
Lubrication Not required
Ambient/fluid temperature 5-60 C
AM2KWB-40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Stroke range: up to 500 mm (stroke tolerance +1.4 mm, 25-500 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: without built-in magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
AM2KWB-50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: without built-in magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
AM2KWB-63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: without built-in magnet | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
AMD2KWB-40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Stroke range: up to 500 mm (stroke tolerance +1.4 mm, 25-500 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
AMD2KWB-50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
AMD2KWB-63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Stroke range: up to 600 mm (stroke tolerance +1.4 mm, 25-600 mm) | Acting: Double | Rod: double rod (both ends) | Magnet: with built-in magnet (auto switch ready) | Non-rotating accuracy: +/-0.5 deg | Allowable rotating torque: 4.5 kgf.cm or less | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
