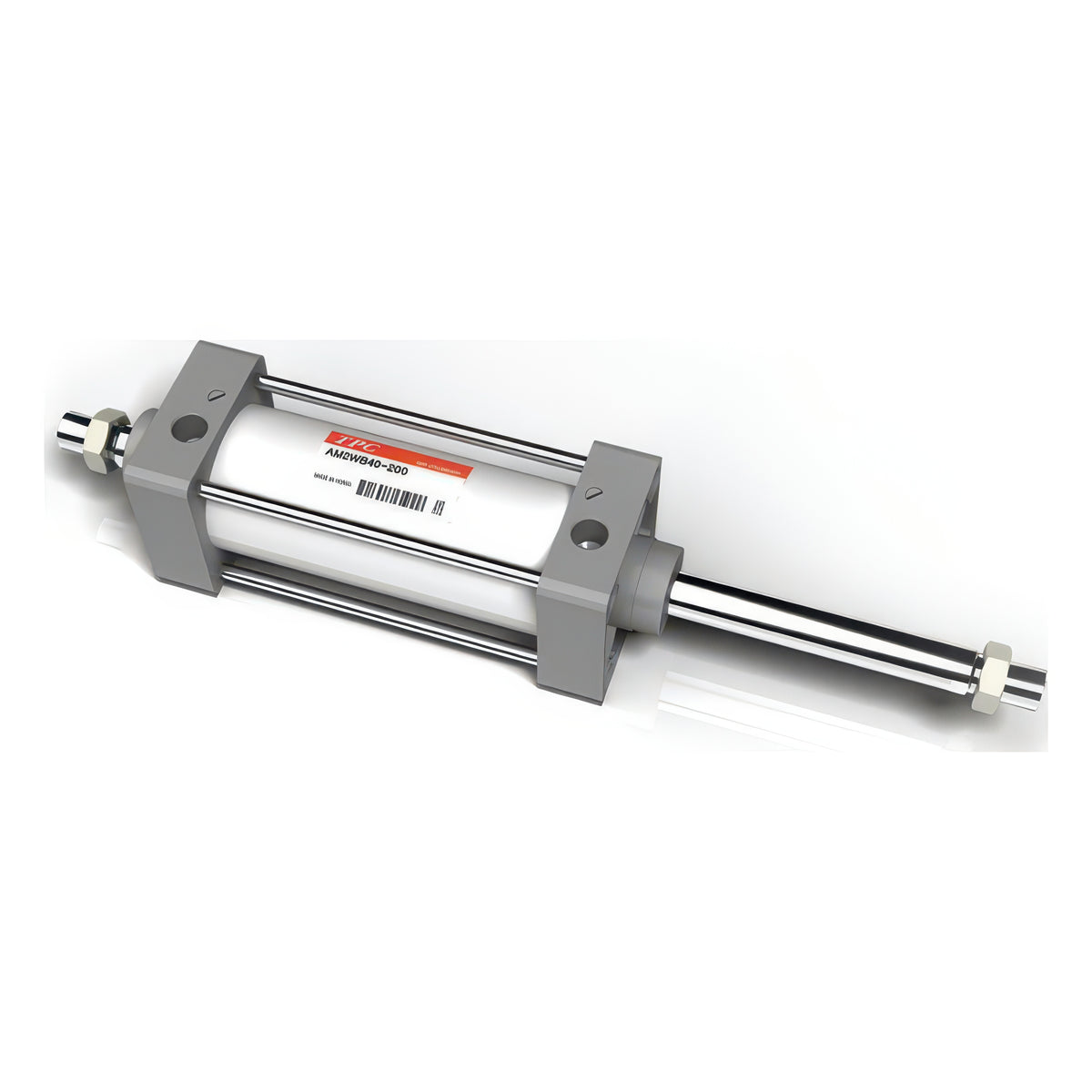

TPC Mechatronics AM2W Series Double-Rod Medium Pneumatic Cylinder (Basic Mount)

TPC Mechatronics AM2W Series Double-Rod Medium Pneumatic Cylinder (Basic Mount)

The AM2W series is the double-rod version of the AM2 medium-bore pneumatic cylinder, with the piston rod extending from both ends, in bores 40 to 100 mm.

Key features

  • Codes AM2WBN and AMD2WBN denote the basic mount, non-lube type without and with a built-in magnet for auto switches
  • It supports high-speed operation with long service life and can be used without lubrication
  • Tie-rod mounted auto switches, including compact W8/W9/W20H types, can be fitted
  • One-side or both-side bellows are available as options

Specifications

Standard strokes 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm
Acting Double
Rod double rod (both ends)
Type N non-lube
Mounting options B basic, L foot, F rod flange, G head flange, T center trunnion
Bellows options J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides)
Cushion Built-in cushion valve
AM2WBN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN40 Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN50 Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN63 Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN80 Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN100 Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AM2W Series Double-Rod Medium Pneumatic Cylinder (Basic Mount)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (10)

AM2WBN40, AM2WBN50, AM2WBN63, AM2WBN80, AM2WBN100, AMD2WBN40, AMD2WBN50, AMD2WBN63, AMD2WBN80, AMD2WBN100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AM2WBN40Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN50Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN63Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN80Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AM2WBN100Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: without built-in magnet | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN40Bore: 40 mm | Rod diameter: 16 mm | Rod end thread: M14x1.5 | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 500 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN50Bore: 50 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN63Bore: 63 mm | Rod diameter: 20 mm | Rod end thread: M18x1.5 | Port: Rc3/8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 600 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN80Bore: 80 mm | Rod diameter: 25 mm | Rod end thread: M22x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve
AMD2WBN100Bore: 100 mm | Rod diameter: 30 mm | Rod end thread: M26x1.5 | Port: Rc1/2 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 mm | Max stroke: 750 mm (stroke range without bellows) | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Magnet: with built-in magnet (auto switch ready) | Mounting options: B basic, L foot, F rod flange, G head flange, T center trunnion | Bellows options: J/JJ nylon tarpaulin, K/KK neoprene cloth (one/both sides) | Cushion: Built-in cushion valve

Need a different model, or a part not listed here? Send us your parts list →
