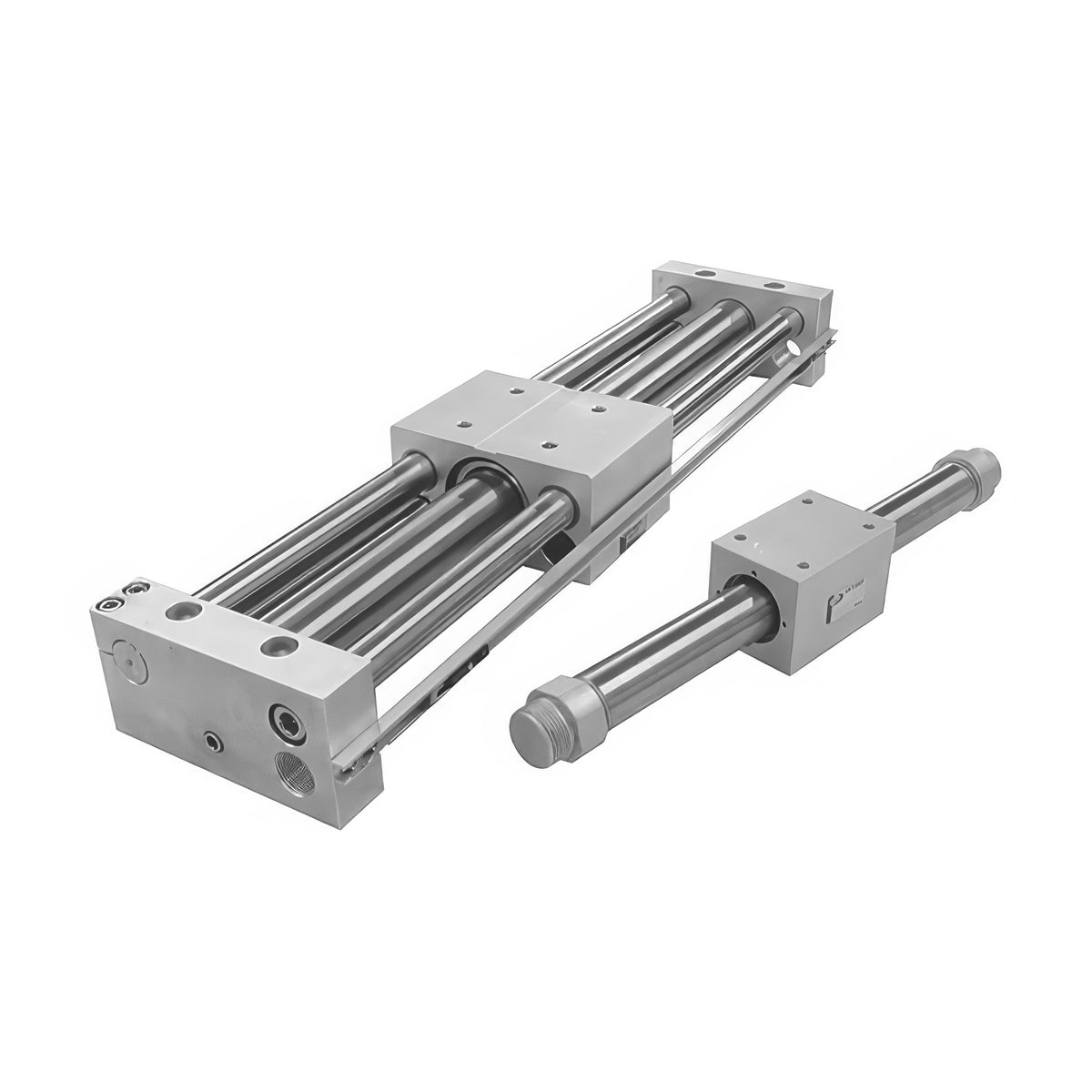

TPC Mechatronics AMRB Magnetic Rodless Cylinder, Basic Type, H / L Holding Force

TPC Mechatronics AMRB Magnetic Rodless Cylinder, Basic Type, H / L Holding Force

The AMR series is a magnetically coupled rodless pneumatic cylinder.

Key features

  • The external slider is driven through the tube wall by strong rare-earth magnets, so the cylinder needs no space for an extended rod
  • Two magnet holding-force grades are offered: H (high) and L (low, bores 20-40)
  • The AMRB basic type has rubber cushions on bores 10 and 16 and air cushions from bore 20, and its mounting threads match standard cylinder brackets
  • Two sizes of work-mounting taps on the slider widen the mounting choices

Specifications

Form B basic
AMRBH10 Bore: 10 mm | Magnet holding force: High (H) 5.5 kgf | Port: M5x0.8 | Stroke range: 50-500 mm | Base weight: 0.08 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Rubber
AMRBH16 Bore: 16 mm | Magnet holding force: High (H) 12 kgf | Port: M5x0.8 | Stroke range: 50-500 mm | Base weight: 0.3 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Rubber
AMRBH20 Bore: 20 mm | Magnet holding force: High (H) 24 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 0.37 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBL20 Bore: 20 mm | Magnet holding force: Low (L) 15.7 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 0.26 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBH25 Bore: 25 mm | Magnet holding force: High (H) 37 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 0.71 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBL25 Bore: 25 mm | Magnet holding force: Low (L) 22.5 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 0.62 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBH32 Bore: 32 mm | Magnet holding force: High (H) 60 kgf | Port: Rc1/8 | Stroke range: 100-2000 mm | Base weight: 1.34 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBL32 Bore: 32 mm | Magnet holding force: Low (L) 36.5 kgf | Port: Rc1/8 | Stroke range: 100-2000 mm | Base weight: 1.19 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBH40 Bore: 40 mm | Magnet holding force: High (H) 94 kgf | Port: Rc1/4 | Stroke range: 100-2000 mm | Base weight: 2.15 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
AMRBL40 Bore: 40 mm | Magnet holding force: Low (L) 58 kgf | Port: Rc1/4 | Stroke range: 100-2000 mm | Base weight: 1.97 kg (add per 50 mm stroke as tabulated) | Form: B basic | Cushion: Air
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
