TPC Mechatronics AMRG Series Magnetically Coupled Rodless Cylinder (Guided Type)

TPC Mechatronics AMRG Series Magnetically Coupled Rodless Cylinder (Guided Type)

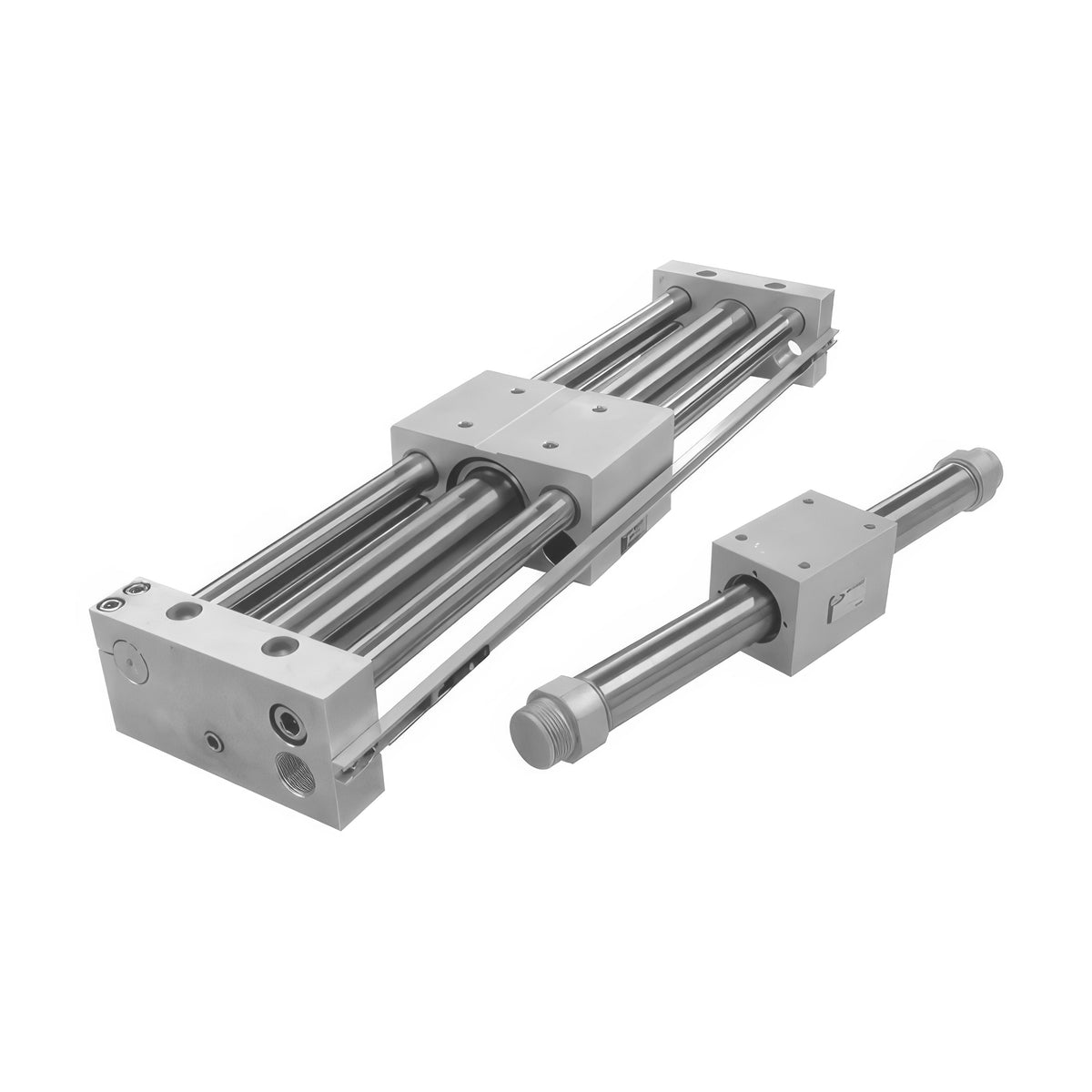

The AMRG is the guided version of the AMR series magnetically coupled rodless cylinder, with twin guide rods and a slide table for bore sizes 10 to 40 mm.

Key features

  • A switch magnet and switch rail are fitted as standard, and the cylinder accepts W13 reed or W1H solid-state auto switches
  • Ports are provided on both sides so the piping direction can be chosen freely
  • Rubber cushions absorb end-of-stroke impact
  • Operating pressure is 0.2 to 0.7 MPa, piston speed 150 to 400 mm/s and the cylinder runs without lubrication

Specifications

Type Guided (with switch rail)
Acting Double
Operating pressure 0.2-0.7 MPa
Piston speed 150-400 mm/s
Cushion Rubber cushion
AMRG10 Bore: 10 mm | Type: Guided (with switch rail) | Acting: Double | Port size: M5x0.8 | Stroke range: 50-500 mm | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-400 mm/s | Cushion: Rubber cushion | Magnet holding force (H type): 5.5 kgf | Mass (H type, 0 mm stroke): 0.48 kg | Additional mass per 50 mm stroke: 0.074 kg
AMRG16 Bore: 16 mm | Type: Guided (with switch rail) | Acting: Double | Port size: M5x0.8 | Stroke range: 50-700 mm | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-400 mm/s | Cushion: Rubber cushion | Magnet holding force (H type): 12 kgf | Mass (H type, 0 mm stroke): 1.02 kg | Additional mass per 50 mm stroke: 0.104 kg
AMRG20 Bore: 20 mm | Type: Guided (with switch rail) | Acting: Double | Port size: Rc1/8 | Stroke range: 100-1000 mm | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-400 mm/s | Cushion: Rubber cushion | Magnet holding force (H type): 24 kgf | Mass (H type, 0 mm stroke): 1.48 kg | Additional mass per 50 mm stroke: 0.138 kg
AMRG32 Bore: 32 mm | Type: Guided (with switch rail) | Acting: Double | Port size: Rc1/8 | Stroke range: 100-1500 mm | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-400 mm/s | Cushion: Rubber cushion | Magnet holding force (H type): 60 kgf | Mass (H type, 0 mm stroke): 3.63 kg | Additional mass per 50 mm stroke: 0.267 kg
AMRG40 Bore: 40 mm | Type: Guided (with switch rail) | Acting: Double | Port size: Rc1/4 | Stroke range: 100-1500 mm | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-400 mm/s | Cushion: Rubber cushion | Magnet holding force (H type): 94 kgf | Mass (H type, 0 mm stroke): 4.02 kg | Additional mass per 50 mm stroke: 0.406 kg
