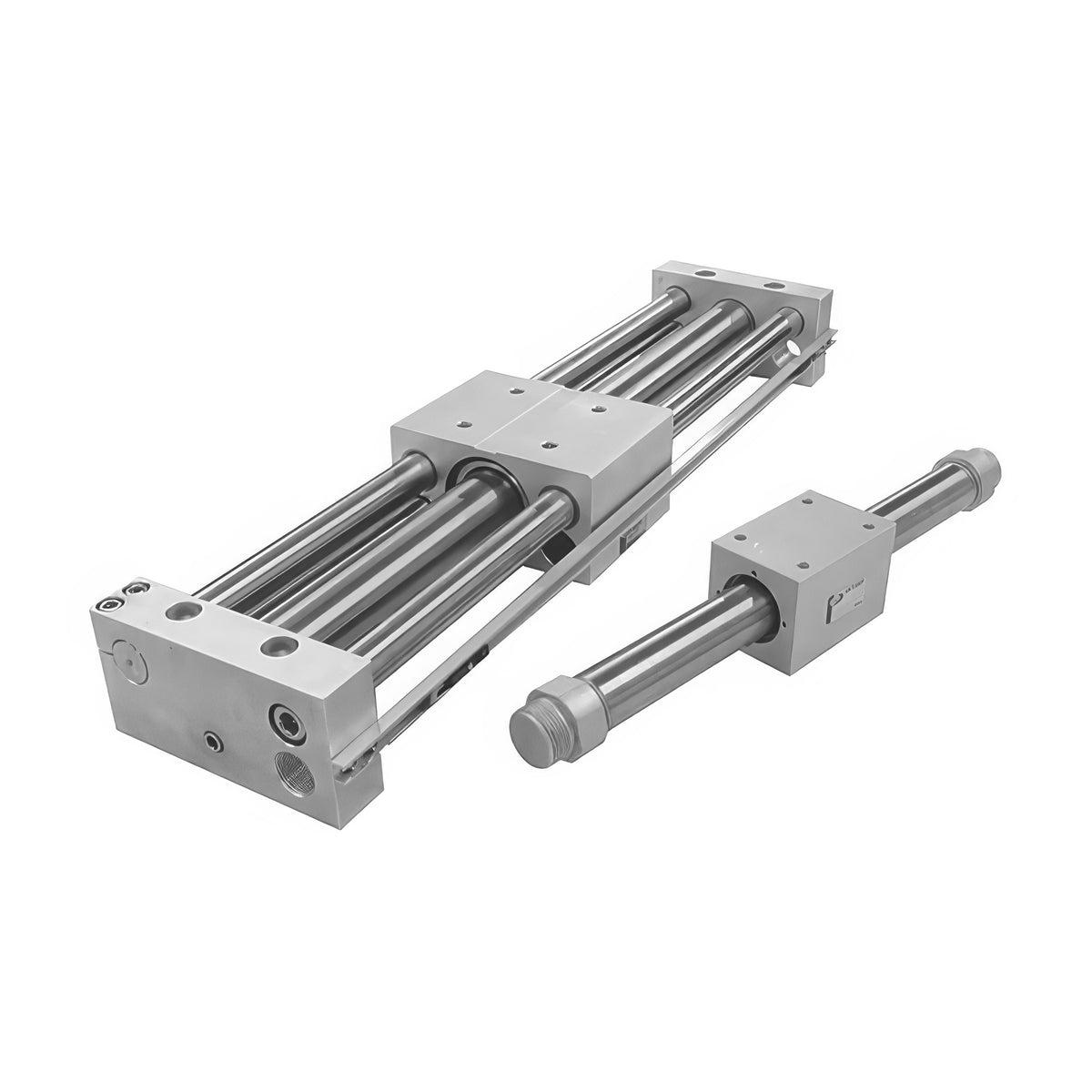

TPC Mechatronics AMRG Magnetic Rodless Cylinder, Guided Type, H / L Holding Force

TPC Mechatronics AMRG Magnetic Rodless Cylinder, Guided Type, H / L Holding Force

The AMR series is a magnetically coupled rodless pneumatic cylinder.

Key features

  • The external slider is driven through the tube wall by strong rare-earth magnets, so the cylinder needs no space for an extended rod
  • Two magnet holding-force grades are offered: H (high) and L (low, bores 20-40)
  • The AMRG guided type adds two guide rods for load support, a switch magnet and a rail for W13 or W1H auto switches
  • Ports are placed on both sides so the piping direction can be chosen freely

Specifications

Form G guided (auto switch W13/W1H mountable)
AMRGH10 Bore: 10 mm | Magnet holding force: High (H) 5.5 kgf | Port: M5x0.8 | Stroke range: 50-500 mm | Base weight: 0.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH16 Bore: 16 mm | Magnet holding force: High (H) 12 kgf | Port: M5x0.8 | Stroke range: 50-700 mm | Base weight: 1.02 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH20 Bore: 20 mm | Magnet holding force: High (H) 24 kgf | Port: Rc1/8 | Stroke range: 100-1000 mm | Base weight: 1.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL20 Bore: 20 mm | Magnet holding force: Low (L) 15.7 kgf | Port: Rc1/8 | Stroke range: 100-1000 mm | Base weight: 1.37 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH25 Bore: 25 mm | Magnet holding force: High (H) 37 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 1.84 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL25 Bore: 25 mm | Magnet holding force: Low (L) 22.5 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 1.75 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH32 Bore: 32 mm | Magnet holding force: High (H) 60 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 3.63 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL32 Bore: 32 mm | Magnet holding force: Low (L) 36.5 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 3.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH40 Bore: 40 mm | Magnet holding force: High (H) 94 kgf | Port: Rc1/4 | Stroke range: 100-1500 mm | Base weight: 4.02 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL40 Bore: 40 mm | Magnet holding force: Low (L) 58 kgf | Port: Rc1/4 | Stroke range: 100-1500 mm | Base weight: 3.84 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AMRG Magnetic Rodless Cylinder, Guided Type, H / L Holding Force

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (10)

AMRGH10, AMRGH16, AMRGH20, AMRGL20, AMRGH25, AMRGL25, AMRGH32, AMRGL32, AMRGH40, AMRGL40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AMRGH10Bore: 10 mm | Magnet holding force: High (H) 5.5 kgf | Port: M5x0.8 | Stroke range: 50-500 mm | Base weight: 0.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH16Bore: 16 mm | Magnet holding force: High (H) 12 kgf | Port: M5x0.8 | Stroke range: 50-700 mm | Base weight: 1.02 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH20Bore: 20 mm | Magnet holding force: High (H) 24 kgf | Port: Rc1/8 | Stroke range: 100-1000 mm | Base weight: 1.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL20Bore: 20 mm | Magnet holding force: Low (L) 15.7 kgf | Port: Rc1/8 | Stroke range: 100-1000 mm | Base weight: 1.37 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH25Bore: 25 mm | Magnet holding force: High (H) 37 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 1.84 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL25Bore: 25 mm | Magnet holding force: Low (L) 22.5 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 1.75 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH32Bore: 32 mm | Magnet holding force: High (H) 60 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 3.63 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL32Bore: 32 mm | Magnet holding force: Low (L) 36.5 kgf | Port: Rc1/8 | Stroke range: 100-1500 mm | Base weight: 3.48 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGH40Bore: 40 mm | Magnet holding force: High (H) 94 kgf | Port: Rc1/4 | Stroke range: 100-1500 mm | Base weight: 4.02 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
AMRGL40Bore: 40 mm | Magnet holding force: Low (L) 58 kgf | Port: Rc1/4 | Stroke range: 100-1500 mm | Base weight: 3.84 kg (add per 50 mm stroke as tabulated) | Form: G guided (auto switch W13/W1H mountable)
