TPC Mechatronics APM Series Panel Mount Miniature Cylinder (Single Acting, Spring Return)

TPC Mechatronics APM Series Panel Mount Miniature Cylinder (Single Acting, Spring Return)

The APM series is a miniature panel-mount air cylinder with bore sizes 6, 10 and 15 mm.

Key features

  • It is single acting with spring return (normally retracted) and offers standard strokes of 5, 10 and 15 mm

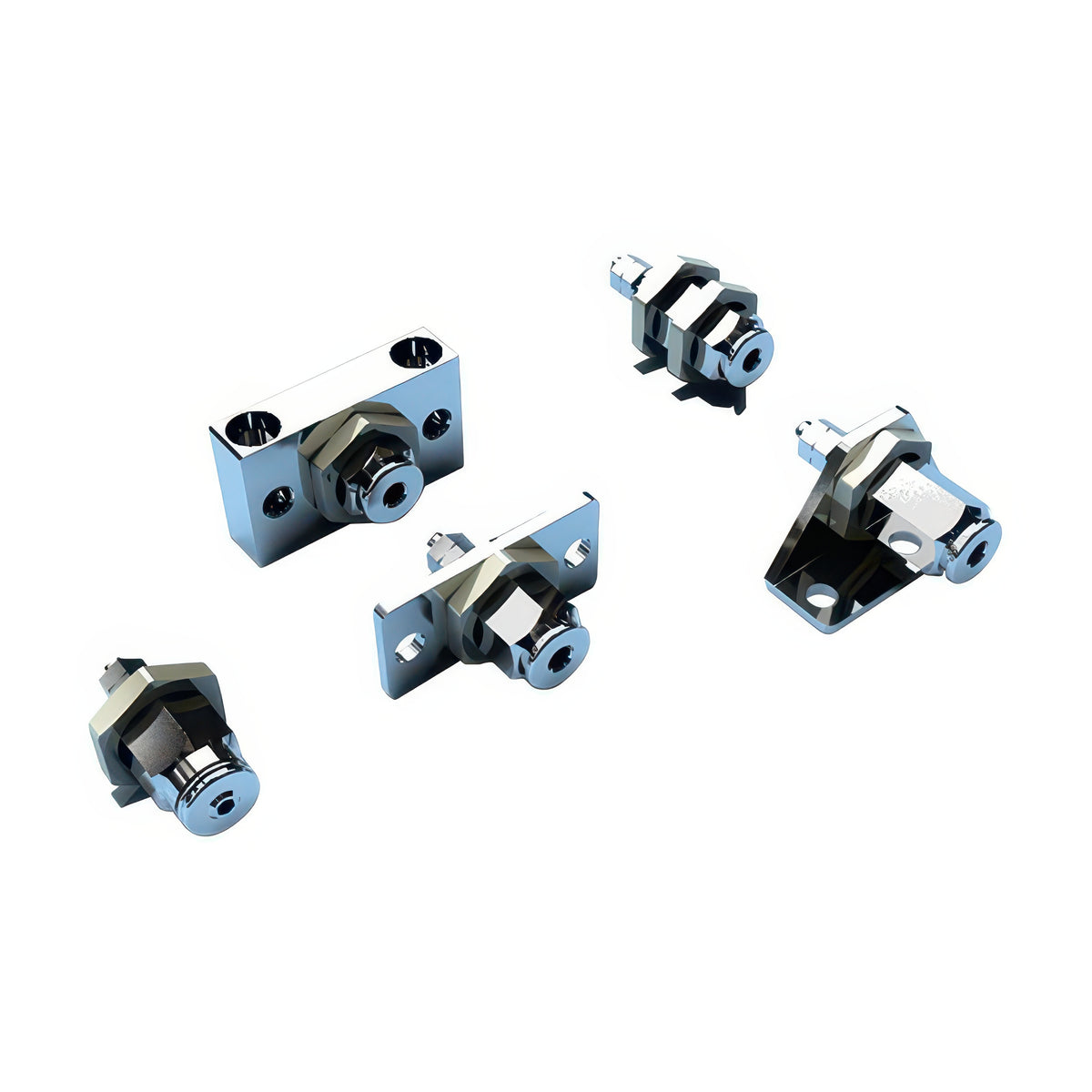

  • The body is fixed through a panel with a threaded rod cover and mounting nuts, and mounting styles include basic, block insert, foot, flange and plate types
  • A special caulked tube construction gives high impact strength, and the copper-alloy rod cover provides good wear resistance
  • Operating pressure is up to 0.7 MPa, the temperature range is -10 to 70 °C and no lubrication is required; dedicated cap or barb hose nipples are available

Specifications

Acting Single acting, spring return (normally retracted)
Standard strokes 5, 10, 15 mm
Port size M5x0.8
Proof pressure 1.05 MPa
Piston speed 50-500 mm/s
Cushion None
APM6 Bore: 6 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M10x1.0 | Output force (extend) at 0.5 MPa: 9.5 N | Spring return force (max/min): 4.33 / 1.47 N | Mass, basic type (5/10/15 mm stroke): 8 / 11 / 14 g
APM10 Bore: 10 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M15x1.5 | Output force (extend) at 0.5 MPa: 30.9 N | Spring return force (max/min): 7.55 / 2.45 N | Mass, basic type (5/10/15 mm stroke): 19 / 24 / 29 g
APM15 Bore: 15 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M22x1.5 | Output force (extend) at 0.5 MPa: 73.8 N | Spring return force (max/min): 12.7 / 5.4 N | Mass, basic type (5/10/15 mm stroke): 51 / 61 / 72 g
Pneumatic CylindersTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics APM Series Panel Mount Miniature Cylinder (Single Acting, Spring Return)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (3)

APM6, APM10, APM15

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM6Bore: 6 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M10x1.0 | Output force (extend) at 0.5 MPa: 9.5 N | Spring return force (max/min): 4.33 / 1.47 N | Mass, basic type (5/10/15 mm stroke): 8 / 11 / 14 g
APM10Bore: 10 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M15x1.5 | Output force (extend) at 0.5 MPa: 30.9 N | Spring return force (max/min): 7.55 / 2.45 N | Mass, basic type (5/10/15 mm stroke): 19 / 24 / 29 g
APM15Bore: 15 mm | Acting: Single acting, spring return (normally retracted) | Standard strokes: 5, 10, 15 mm | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: None | Mounting thread: M22x1.5 | Output force (extend) at 0.5 MPa: 73.8 N | Spring return force (max/min): 12.7 / 5.4 N | Mass, basic type (5/10/15 mm stroke): 51 / 61 / 72 g
