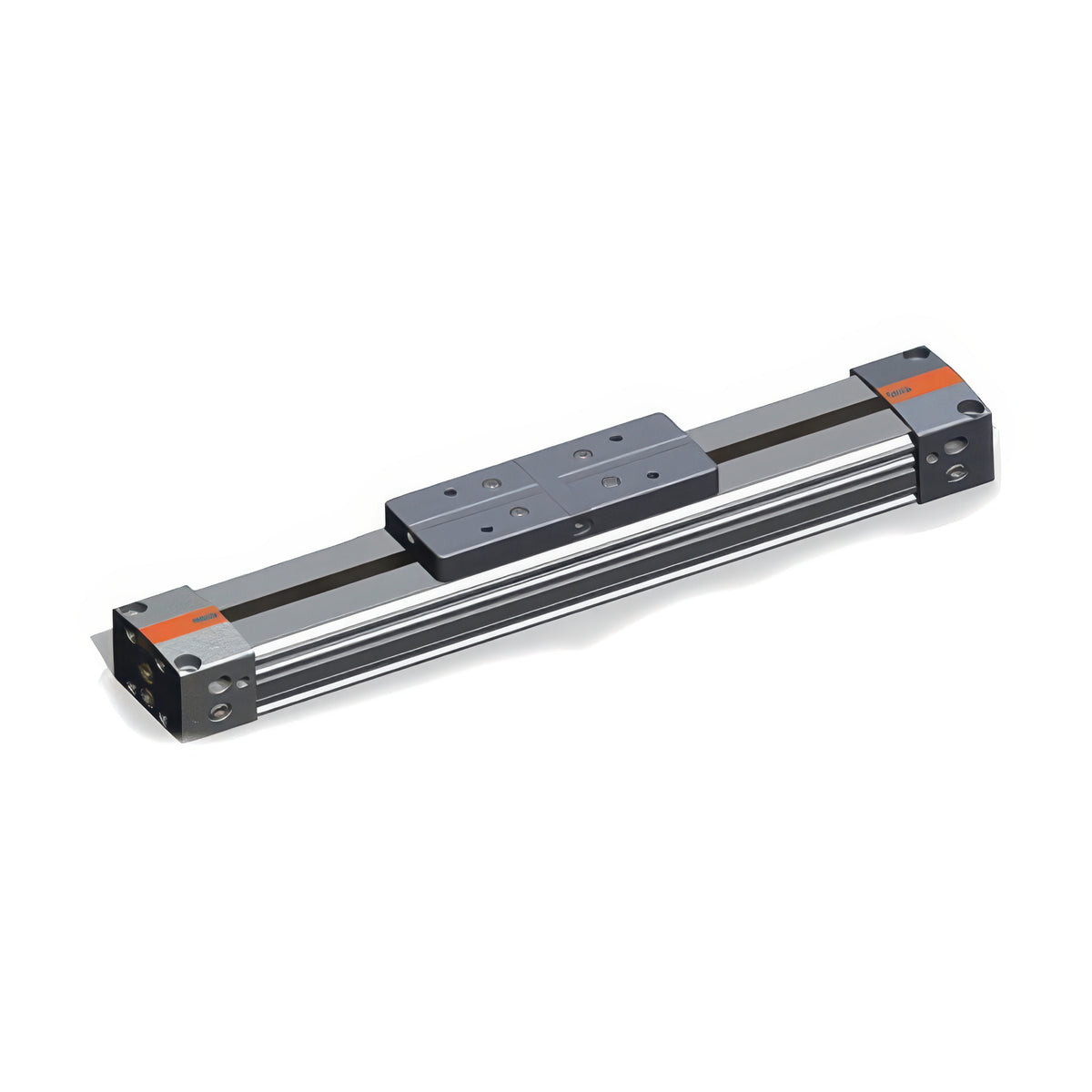

TPC Mechatronics APR Series Mechanical Rodless Cylinder (Double Acting, Bore 16-63 mm)

TPC Mechatronics APR Series Mechanical Rodless Cylinder (Double Acting, Bore 16-63 mm)

The APR series is a double-acting mechanical (band-type) rodless air cylinder offered in bore sizes 16 to 63 mm with strokes up to 5,000 mm.

Key features

  • Three guide versions are available: basic (A), external guide (B) and LM guide (C, bore 16-40 mm)
  • An adjustable air cushion and a switch magnet are built in, and switch rails on both sides accept miniature auto switches (W8H, W9H)
  • Options include stroke adjustment units with adjusting bolt and low- or high-load shock absorbers, a floating bracket and side support brackets for long strokes
  • Centralized porting on the front or side face is possible, and the cylinder runs without lubrication at 5-60 °C

Specifications

Acting Double
Cushion Adjustable air cushion
Magnet Built-in
APR16A Bore: 16 mm | Guide type: Basic (A type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 350 g | Additional mass per 10 mm stroke: 12 g
APR20A Bore: 20 mm | Guide type: Basic (A type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 680 g | Additional mass per 10 mm stroke: 20 g
APR25A Bore: 25 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 950 g | Additional mass per 10 mm stroke: 23 g
APR32A Bore: 32 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 1800 g | Additional mass per 10 mm stroke: 35 g
APR40A Bore: 40 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 3150 g | Additional mass per 10 mm stroke: 51 g
APR50A Bore: 50 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc3/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 982 N | Base mass (0 mm stroke): 5350 g | Additional mass per 10 mm stroke: 80 g
APR63A Bore: 63 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/2 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 1559 N | Base mass (0 mm stroke): 9500 g | Additional mass per 10 mm stroke: 128 g
APR16B Bore: 16 mm | Guide type: External guide (B type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 295 g | Additional mass per 10 mm stroke: 12 g
APR20B Bore: 20 mm | Guide type: External guide (B type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 630 g | Additional mass per 10 mm stroke: 20 g
APR25B Bore: 25 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 1000 g | Additional mass per 10 mm stroke: 23 g
APR32B Bore: 32 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 1900 g | Additional mass per 10 mm stroke: 35 g
APR40B Bore: 40 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 3400 g | Additional mass per 10 mm stroke: 51 g
APR50B Bore: 50 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc3/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 982 N | Base mass (0 mm stroke): 6000 g | Additional mass per 10 mm stroke: 80 g
APR63B Bore: 63 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/2 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 1559 N | Base mass (0 mm stroke): 10630 g | Additional mass per 10 mm stroke: 128 g
APR16C Bore: 16 mm | Guide type: LM guide (C type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 521 g | Additional mass per 10 mm stroke: 16 g
APR20C Bore: 20 mm | Guide type: LM guide (C type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 888 g | Additional mass per 10 mm stroke: 20 g
APR25C Bore: 25 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 1308 g | Additional mass per 10 mm stroke: 25 g
APR32C Bore: 32 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 2401 g | Additional mass per 10 mm stroke: 39 g
APR40C Bore: 40 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 2000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 4583 g | Additional mass per 10 mm stroke: 58 g
Pneumatic CylindersTPC Mechatronics
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics APR Series Mechanical Rodless Cylinder (Double Acting, Bore 16-63 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (19)

APR16A, APR20A, APR25A, APR32A, APR40A, APR50A, APR63A, APR16B, APR20B, APR25B + 9 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APR16ABore: 16 mm | Guide type: Basic (A type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 350 g | Additional mass per 10 mm stroke: 12 g
APR20ABore: 20 mm | Guide type: Basic (A type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 680 g | Additional mass per 10 mm stroke: 20 g
APR25ABore: 25 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 950 g | Additional mass per 10 mm stroke: 23 g
APR32ABore: 32 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 1800 g | Additional mass per 10 mm stroke: 35 g
APR40ABore: 40 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 3150 g | Additional mass per 10 mm stroke: 51 g
APR50ABore: 50 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc3/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 982 N | Base mass (0 mm stroke): 5350 g | Additional mass per 10 mm stroke: 80 g
APR63ABore: 63 mm | Guide type: Basic (A type) | Acting: Double | Port size: Rc1/2 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-2000 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 1559 N | Base mass (0 mm stroke): 9500 g | Additional mass per 10 mm stroke: 128 g
APR16BBore: 16 mm | Guide type: External guide (B type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 295 g | Additional mass per 10 mm stroke: 12 g
APR20BBore: 20 mm | Guide type: External guide (B type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 3000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 630 g | Additional mass per 10 mm stroke: 20 g
APR25BBore: 25 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 1000 g | Additional mass per 10 mm stroke: 23 g
APR32BBore: 32 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 1900 g | Additional mass per 10 mm stroke: 35 g
APR40BBore: 40 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 3400 g | Additional mass per 10 mm stroke: 51 g
APR50BBore: 50 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc3/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 982 N | Base mass (0 mm stroke): 6000 g | Additional mass per 10 mm stroke: 80 g
APR63BBore: 63 mm | Guide type: External guide (B type) | Acting: Double | Port size: Rc1/2 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 5000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 1559 N | Base mass (0 mm stroke): 10630 g | Additional mass per 10 mm stroke: 128 g
APR16CBore: 16 mm | Guide type: LM guide (C type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.2-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 101 N | Base mass (0 mm stroke): 521 g | Additional mass per 10 mm stroke: 16 g
APR20CBore: 20 mm | Guide type: LM guide (C type) | Acting: Double | Port size: M5x0.8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 157 N | Base mass (0 mm stroke): 888 g | Additional mass per 10 mm stroke: 20 g
APR25CBore: 25 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 150-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 245 N | Base mass (0 mm stroke): 1308 g | Additional mass per 10 mm stroke: 25 g
APR32CBore: 32 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/8 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 1000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 402 N | Base mass (0 mm stroke): 2401 g | Additional mass per 10 mm stroke: 39 g
APR40CBore: 40 mm | Guide type: LM guide (C type) | Acting: Double | Port size: Rc1/4 | Operating pressure: 0.15-0.7 MPa | Piston speed: 100-1500 mm/s | Max stroke: 2000 mm | Cushion: Adjustable air cushion | Magnet: Built-in | Theoretical force at 0.5 MPa: 628 N | Base mass (0 mm stroke): 4583 g | Additional mass per 10 mm stroke: 58 g
