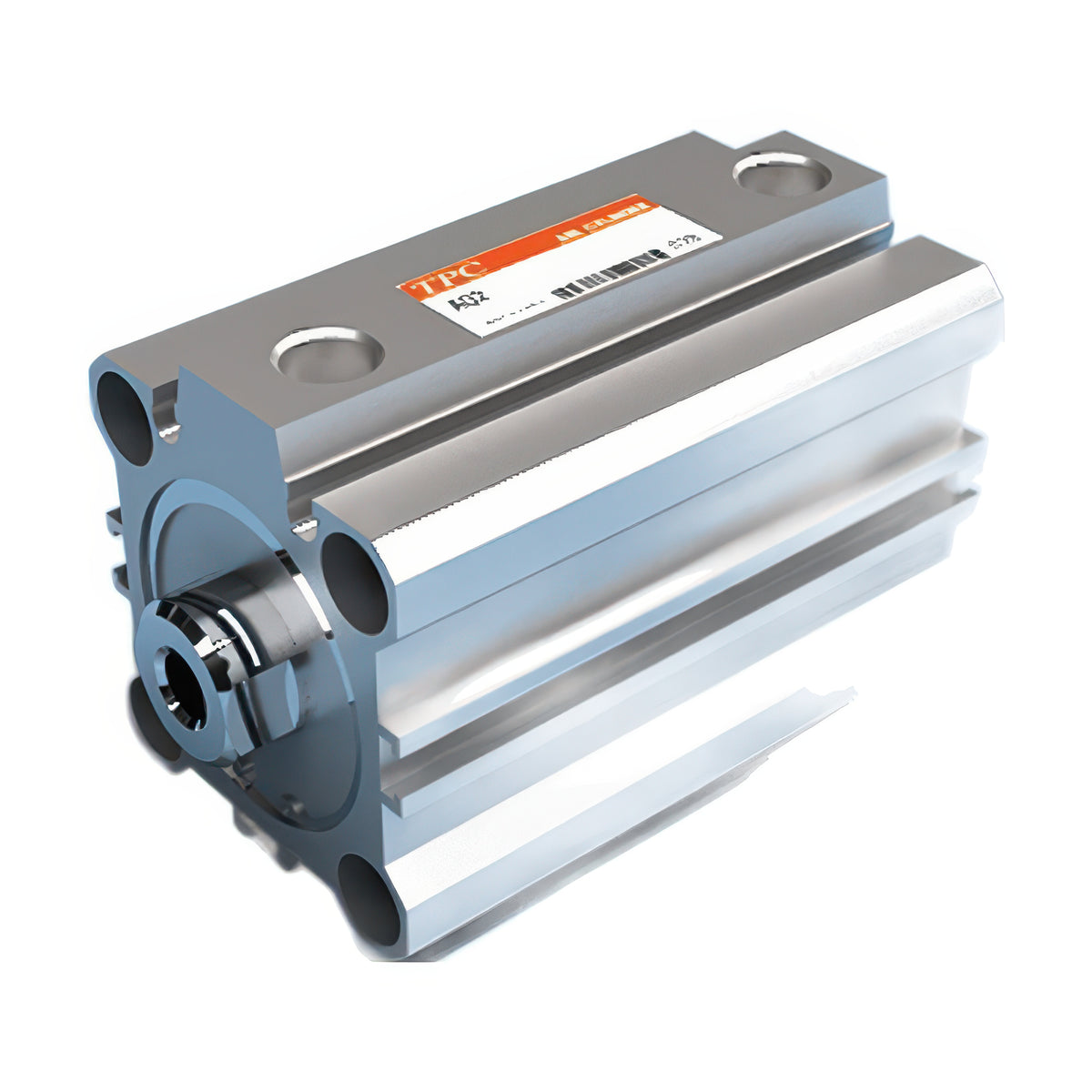

TPC Mechatronics AQ2 / ADQ2 Compact Cylinder, Square Tube, Single Rod (Bore 12-100 mm)

TPC Mechatronics AQ2 / ADQ2 Compact Cylinder, Square Tube, Single Rod (Bore 12-100 mm)

The AQ2 series is a thin, space-saving compact pneumatic cylinder with a square aluminum tube, available in bores from 12 to 100 mm.

Key features

  • The ADQ2 version has a built-in magnet so miniature auto switches can be mounted inside the tube grooves
  • Each listing code is the series, mounting type and bore; stroke, acting type and options are added when ordering
  • Double-acting is standard, with spring single-acting (S/T) versions for 12-50 mm bores and long-stroke versions up to 300 mm for 32-100 mm bores
  • Options include rubber cushion, male rod end, head-side spigot, knuckle joints and foot, flange or clevis mounting brackets

Specifications

Acting Double (D)
Cushion none (C = rubber cushion option)
Piston speed 50-500 mm/s
Ambient/fluid temperature -5 to 70 C (no freezing)
Rod end female thread standard (M = male thread)
AQ2A12 Bore: 12 mm | Rod diameter: 6 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 50 mm | Long stroke: 35-50 mm (per dimension table) | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A16 Bore: 16 mm | Rod diameter: 8 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 50 mm | Long stroke: 35-50 mm (per dimension table) | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A20 Bore: 20 mm | Rod diameter: 10 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A25 Bore: 25 mm | Rod diameter: 12 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A32 Bore: 32 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)3/8) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2A100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)3/8) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B32 Bore: 32 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
AQ2B100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Without magnet (AQ2 basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A12 Bore: 12 mm | Rod diameter: 6 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 50 mm | Long stroke: 35-50 mm (per dimension table) | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A16 Bore: 16 mm | Rod diameter: 8 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 50 mm | Long stroke: 35-50 mm (per dimension table) | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A20 Bore: 20 mm | Rod diameter: 10 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A25 Bore: 25 mm | Rod diameter: 12 mm | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double (D) | Single-acting option: S spring-extend or T spring-retract, strokes 5, 10 mm | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A32 Bore: 32 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)1/4) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)3/8) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2A100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (A/D/F/G/L mounts only, rubber cushion standard, port Rc(PT)3/8) | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = A both-end tapped | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B32 Bore: 32 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Single-acting option: S spring-extend, strokes 5, 10 mm (T not available) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B80 Bore: 80 mm | Rod diameter: 25 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
ADQ2B100 Bore: 100 mm | Rod diameter: 30 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double (D) | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), D double clevis, F rod-side flange, G head-side flange, L foot (D/F/G/L based on both-end tapped body; brackets shipped unassembled); this code = B through-hole | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Ambient/fluid temperature: -5 to 70 C (no freezing) | Rod end: female thread standard (M = male thread) | Intermediate strokes from 3 mm in 1 mm steps by spacer
