TPC Mechatronics AQ2 / ADQ2 Large Bore Compact Cylinder (Bore 125-200 mm)

TPC Mechatronics AQ2 / ADQ2 Large Bore Compact Cylinder (Bore 125-200 mm)

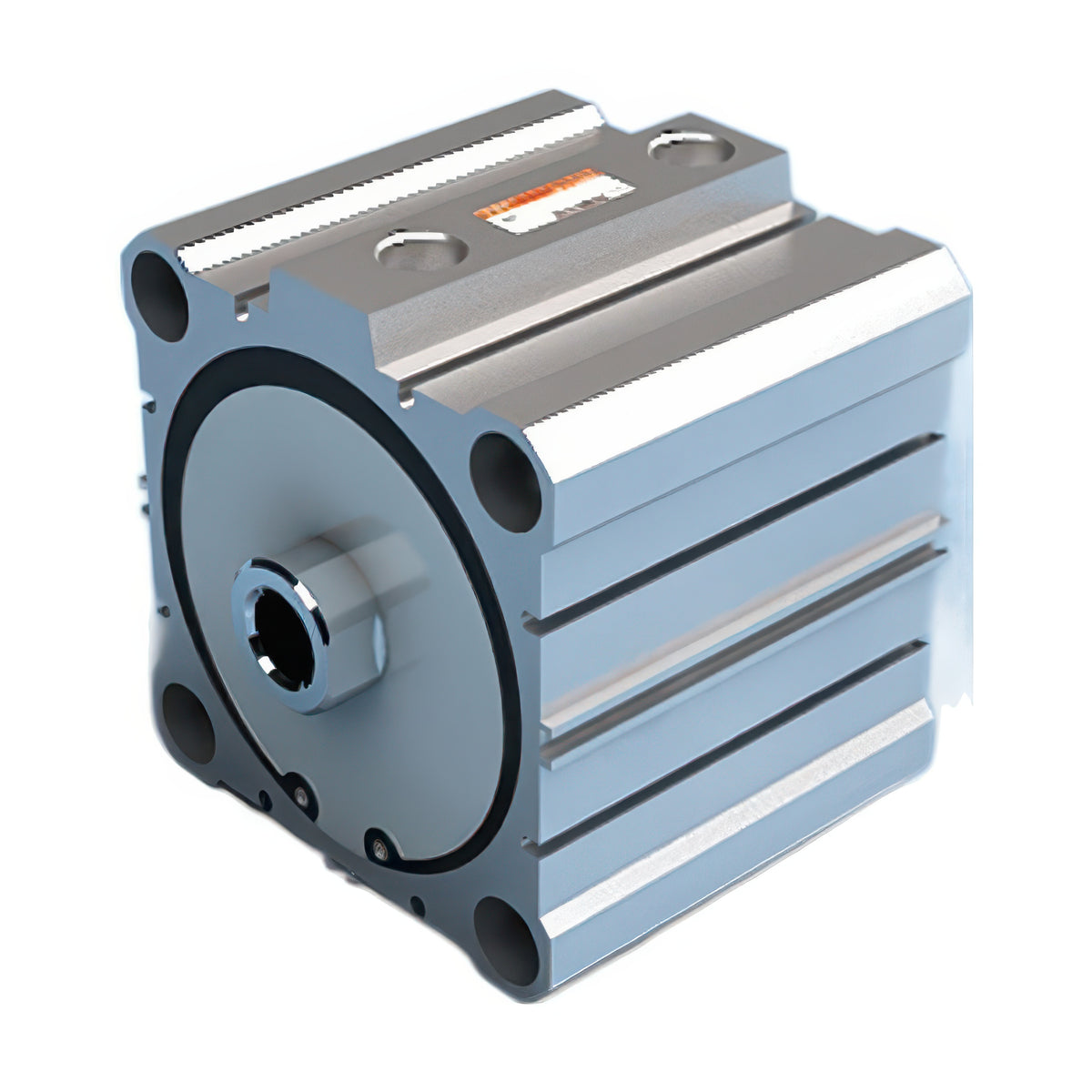

The large-bore AQ2 series extends the thin square-tube compact cylinder to 125, 140, 160, 180 and 200 mm bores for high thrust in a short body.

Key features

  • It is double-acting with a rubber cushion as standard and a combined through-hole and both-end tapped mounting body
  • ADQ2 models carry a built-in magnet so miniature or A73K auto switches can be mounted on the tube rails
  • Standard strokes run from 10 to 300 mm
  • Each listing code is series, mounting and bore; stroke and options are specified when ordering

Specifications

Standard strokes 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm
Max stroke 300 mm
Acting Double
Mounting B (through-hole and both-end tapped combined, standard)
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion rubber cushion (standard)
Temperature 5 to 60 C
Rod end female thread standard (M = male thread)
AQ2B125 Bore: 125 mm | Rod diameter: 36 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2B140 Bore: 140 mm | Rod diameter: 36 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2B160 Bore: 160 mm | Rod diameter: 40 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2B180 Bore: 180 mm | Rod diameter: 40 mm | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2B200 Bore: 200 mm | Rod diameter: 40 mm | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2B125 Bore: 125 mm | Rod diameter: 36 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2B140 Bore: 140 mm | Rod diameter: 36 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2B160 Bore: 160 mm | Rod diameter: 40 mm | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2B180 Bore: 180 mm | Rod diameter: 40 mm | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2B200 Bore: 200 mm | Rod diameter: 40 mm | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double | Mounting: B (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
