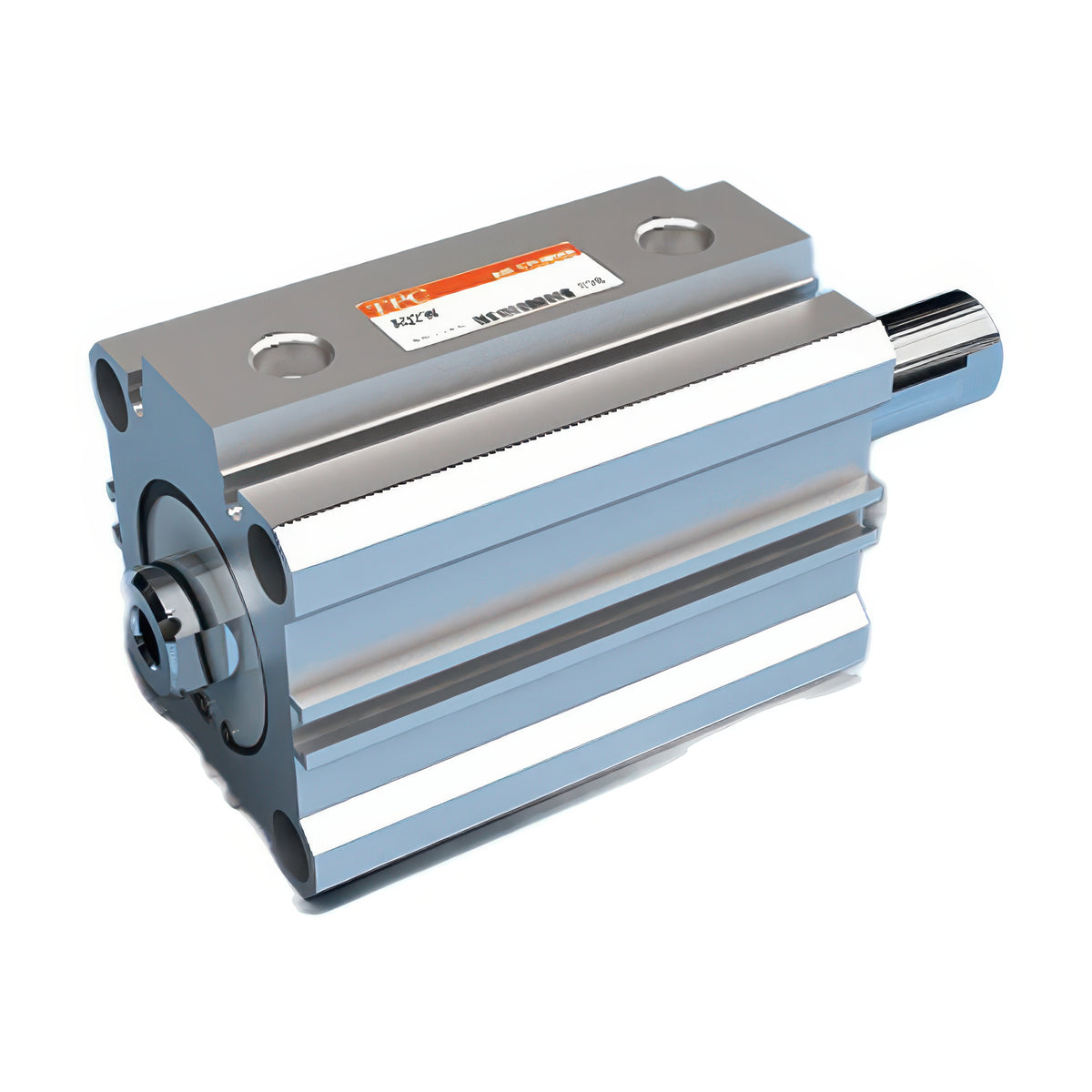

TPC Mechatronics AQ2W / ADQ2W Double Rod Compact Cylinder (Bore 12-100 mm)

TPC Mechatronics AQ2W / ADQ2W Double Rod Compact Cylinder (Bore 12-100 mm)

The AQ2W series is a double-acting, double-rod version of the AQ2 thin compact cylinder with a square aluminum tube.

Key features

  • The piston rod passes through both end covers, giving equal force in both directions and allowing a load or dog to be attached at each end
  • ADQ2W models include a built-in magnet for miniature auto switches mounted inside the tube
  • Bores range from 12 to 100 mm with standard strokes up to 100 mm, and long-stroke versions to 300 mm are offered for 32-100 mm bores
  • Each listing code is series, mounting and bore; stroke and options are specified when ordering

Specifications

Acting Double, double rod
Cushion none (C = rubber cushion option)
Piston speed 50-500 mm/s
Temperature -10 to 70 C (no freezing)
Rod end female thread standard (M = male thread)
AQ2WA12 Bore: 12 mm | Rod diameter: 6 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA16 Bore: 16 mm | Rod diameter: 8 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA20 Bore: 20 mm | Rod diameter: 10 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA25 Bore: 25 mm | Rod diameter: 12 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA32 Bore: 32 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA50 Bore: 50 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA63 Bore: 63 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA80 Bore: 80 mm | Rod diameter: 25 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WA100 Bore: 100 mm | Rod diameter: 30 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB32 Bore: 32 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB50 Bore: 50 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB63 Bore: 63 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB80 Bore: 80 mm | Rod diameter: 25 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
AQ2WB100 Bore: 100 mm | Rod diameter: 30 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Without magnet (AQ2W basic type; ADQ2W = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA12 Bore: 12 mm | Rod diameter: 6 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA16 Bore: 16 mm | Rod diameter: 8 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Max stroke: 30 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.07-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA20 Bore: 20 mm | Rod diameter: 10 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA25 Bore: 25 mm | Rod diameter: 12 mm (both ends) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Max stroke: 50 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA32 Bore: 32 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA50 Bore: 50 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA63 Bore: 63 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA80 Bore: 80 mm | Rod diameter: 25 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WA100 Bore: 100 mm | Rod diameter: 30 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 300 mm | Long stroke option: 125, 150, 175, 200, 250, 300 mm (WA/WF/WG/WL, rubber cushion standard) | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB32 Bore: 32 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB40 Bore: 40 mm | Rod diameter: 16 mm (both ends) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB50 Bore: 50 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB63 Bore: 63 mm | Rod diameter: 20 mm (both ends) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB80 Bore: 80 mm | Rod diameter: 25 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
ADQ2WB100 Bore: 100 mm | Rod diameter: 30 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double, double rod | Mounting: A both-end tapped (standard for Ø12-25, through-hole compatible), B through-hole (standard, Ø32-100), Z through-hole + both-end tapped (Ø32-100), F rod-side flange, L foot (F/L based on both-end tapped body); long stroke uses WA/WF/WG/WL; this code = B through-hole | Built-in magnet for auto switch (ADQ2W) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none (C = rubber cushion option) | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing) | Rod end: female thread standard (M = male thread)
