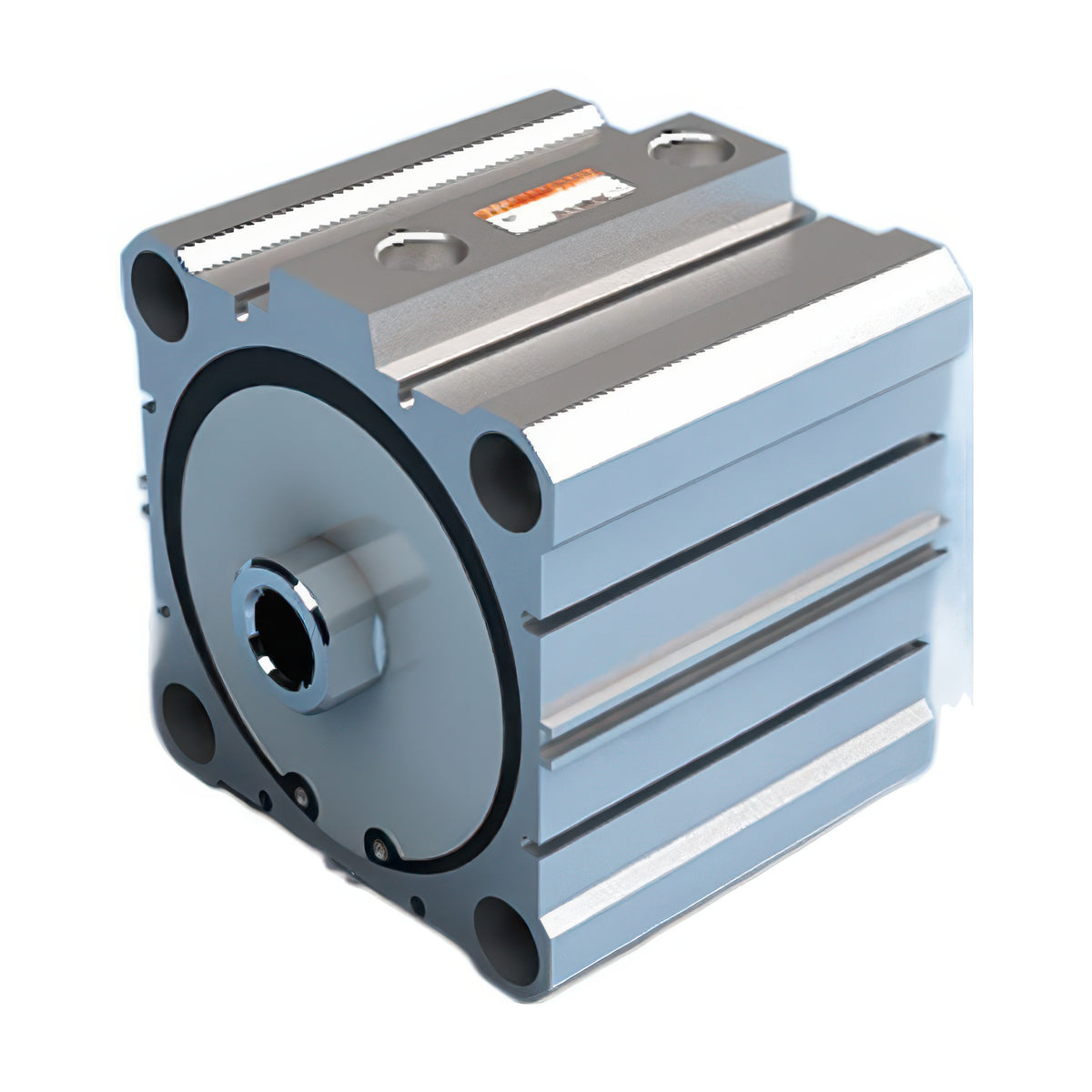

TPC Mechatronics AQ2WB / ADQ2WB Large Bore Double Rod Compact Cylinder (Bore 125-200 mm)

TPC Mechatronics AQ2WB / ADQ2WB Large Bore Double Rod Compact Cylinder (Bore 125-200 mm)

The AQ2WB is the double-rod version of the large-bore AQ2 compact cylinder, with the piston rod extending through both covers.

Key features

  • It covers 125 to 200 mm bores and gives equal effective area in both directions in a short square-tube body
  • A rubber cushion is standard, and the body combines through-holes with both-end tapped mounting holes
  • ADQ2WB models have a built-in magnet for auto switches
  • Each listing code is series, mounting and bore; stroke and options are specified when ordering

Specifications

Standard strokes 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm
Max stroke 300 mm
Acting Double, double rod
Mounting WB (through-hole and both-end tapped combined, standard)
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion rubber cushion (standard)
Temperature 5 to 60 C
Rod end female thread standard (M = male thread)
AQ2WB125 Bore: 125 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB140 Bore: 140 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB160 Bore: 160 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB180 Bore: 180 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB200 Bore: 200 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB125 Bore: 125 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB140 Bore: 140 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB160 Bore: 160 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB180 Bore: 180 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB200 Bore: 200 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AQ2WB / ADQ2WB Large Bore Double Rod Compact Cylinder (Bore 125-200 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (10)

AQ2WB125, AQ2WB140, AQ2WB160, AQ2WB180, AQ2WB200, ADQ2WB125, ADQ2WB140, ADQ2WB160, ADQ2WB180, ADQ2WB200

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AQ2WB125Bore: 125 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB140Bore: 140 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB160Bore: 160 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB180Bore: 180 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
AQ2WB200Bore: 200 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Without magnet (basic type; ADQ2 = built-in magnet) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB125Bore: 125 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB140Bore: 140 mm | Rod diameter: 36 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB160Bore: 160 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)3/8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 50-500 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB180Bore: 180 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)
ADQ2WB200Bore: 200 mm | Rod diameter: 40 mm (both ends) | Port: Rc(PT)1/2 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Max stroke: 300 mm | Acting: Double, double rod | Mounting: WB (through-hole and both-end tapped combined, standard) | Built-in magnet for auto switch (ADQ2) | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: rubber cushion (standard) | Piston speed: 20-400 mm/s | Temperature: 5 to 60 C | Rod end: female thread standard (M = male thread)

Need a different model, or a part not listed here? Send us your parts list →
