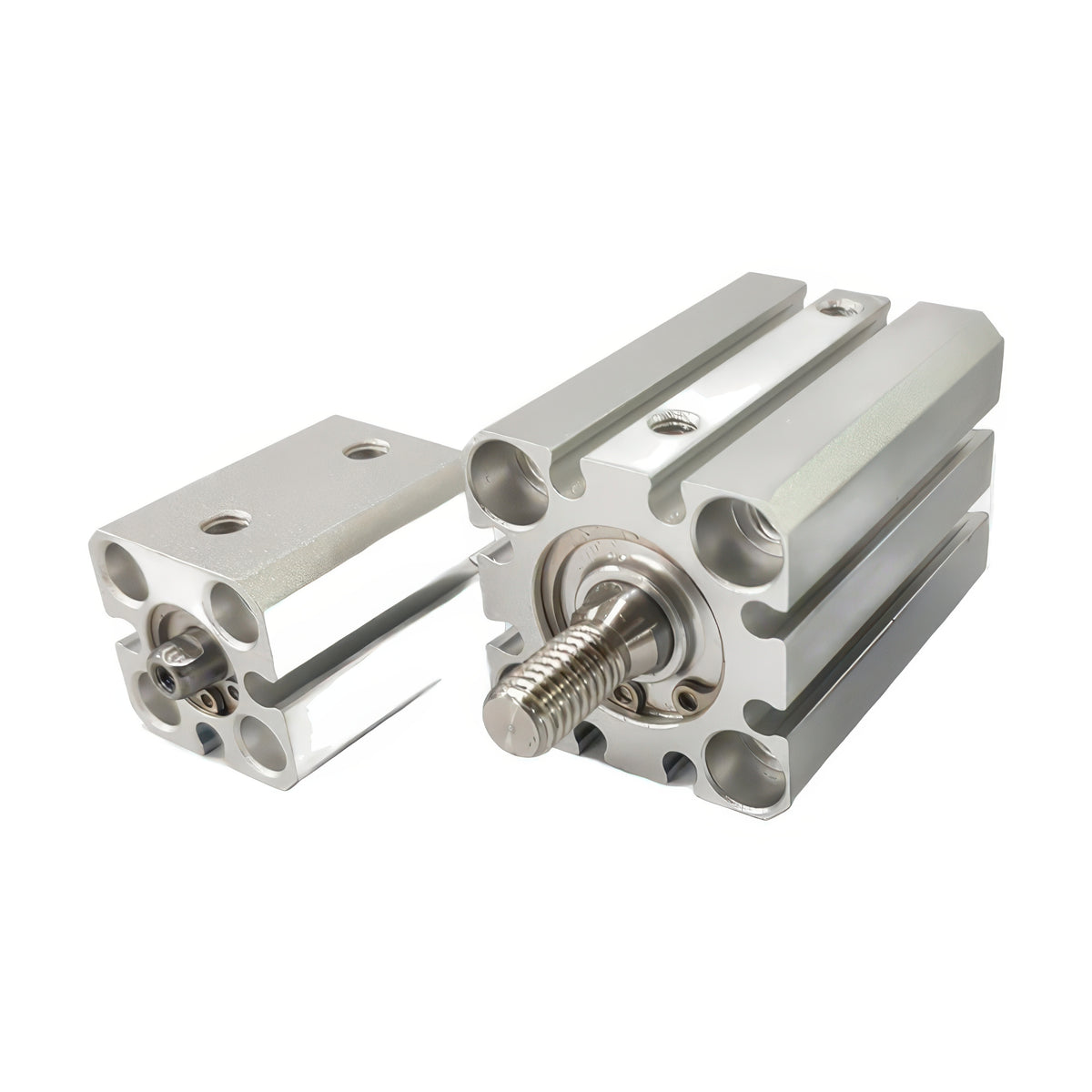

TPC Mechatronics AQS Series Square Tube Compact Pneumatic Cylinder (Short Tube, Double Acting)

TPC Mechatronics AQS Series Square Tube Compact Pneumatic Cylinder (Short Tube, Double Acting)

The AQS series is a thin square-tube compact pneumatic cylinder for bores of 12, 16 and 20 mm.

Key features

  • It is a double-acting, single-rod design whose tube length is about 6 to 28 percent shorter than the AQ2 series, saving installation space
  • Rubber cushions on both ends are standard, operation is non-lube, and the operating pressure range is up to 1.0 MPa with piston speeds of 50 to 500 mm/s
  • Both-end tapped mounting (shared with through holes) is standard, a built-in magnet version accepts miniature auto switches, and a male rod-end thread option is available
  • Mounting brackets are interchangeable with the AQ2 series, and the operating temperature range is -5 to 70 C without switch (-5 to 60 C with switch, no freezing)

Specifications

Acting Double, single rod
Port size M5x0.8
Proof pressure 1.5 MPa
Max. pressure 1.0 MPa
Piston speed 50-500 mm/s
Cushion Rubber, both ends
AQS12 Bore: 12 mm | Acting: Double, single rod | Port size: M5x0.8 | Rod dia: 6 mm | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.07 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber, both ends | Theoretical output at 0.5 MPa: 57 N (OUT) / 42 N (IN) | Mass: 29 g (5 mm stroke, no magnet)
AQS20 Bore: 20 mm | Acting: Double, single rod | Port size: M5x0.8 | Rod dia: 10 mm | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.05 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber, both ends | Theoretical output at 0.5 MPa: 157 N (OUT) / 118 N (IN) | Mass: 63 g (5 mm stroke, no magnet)
Pneumatic CylindersTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AQS Series Square Tube Compact Pneumatic Cylinder (Short Tube, Double Acting)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (2)

AQS12, AQS20

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AQS12Bore: 12 mm | Acting: Double, single rod | Port size: M5x0.8 | Rod dia: 6 mm | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.07 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber, both ends | Theoretical output at 0.5 MPa: 57 N (OUT) / 42 N (IN) | Mass: 29 g (5 mm stroke, no magnet)
AQS20Bore: 20 mm | Acting: Double, single rod | Port size: M5x0.8 | Rod dia: 10 mm | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.05 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber, both ends | Theoretical output at 0.5 MPa: 157 N (OUT) / 118 N (IN) | Mass: 63 g (5 mm stroke, no magnet)
