TPC Mechatronics AQS Short Compact Cylinder Body, Bore 12-20 mm

TPC Mechatronics AQS Short Compact Cylinder Body, Bore 12-20 mm

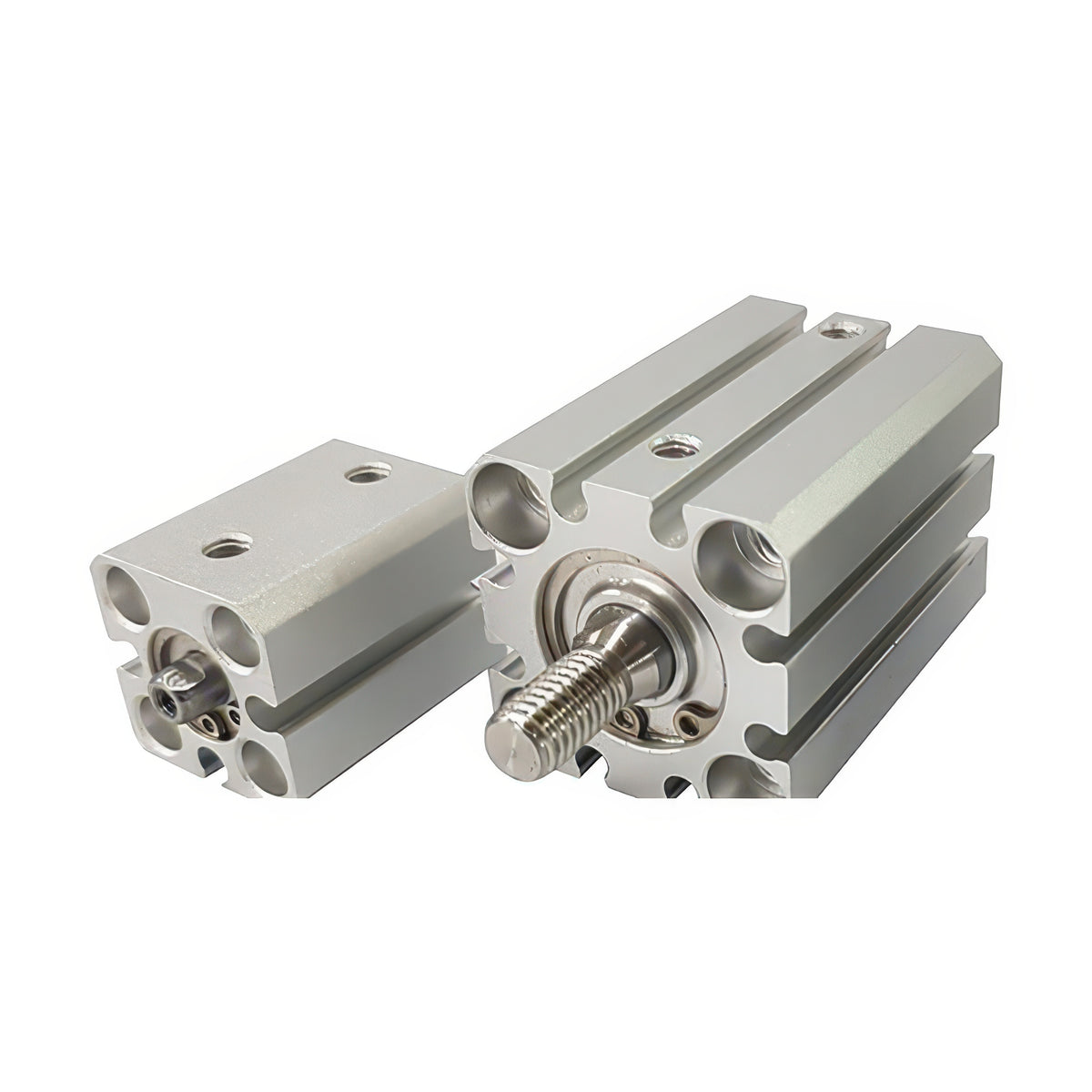

The AQS series is a thin square-tube compact cylinder with a shortened body.

Key features

  • Tube length is about 6 to 28 percent shorter than the AQ2 series, saving installation space
  • It is double acting with rubber cushions at both ends and needs no lubrication
  • The body is both-end tapped and can also be mounted through the holes
  • ADQSA models include a built-in magnet for auto switches

Specifications

Mounting A both-end tapped (also usable as through-hole)
Port M5x0.8
Acting Double, single rod
Max operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion Rubber both ends
AQSA16 Bore: 16 mm | Version: Without auto switch magnet (bore 16 only; 12 and 20 without magnet are ordered as AQ2) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA12 Bore: 12 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA16 Bore: 16 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA20 Bore: 20 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
Pneumatic CylindersTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AQS Short Compact Cylinder Body, Bore 12-20 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (4)

AQSA16, ADQSA12, ADQSA16, ADQSA20

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AQSA16Bore: 16 mm | Version: Without auto switch magnet (bore 16 only; 12 and 20 without magnet are ordered as AQ2) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA12Bore: 12 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA16Bore: 16 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.07 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
ADQSA20Bore: 20 mm | Version: With built-in magnet for auto switch (D) | Mounting: A both-end tapped (also usable as through-hole) | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 mm | Acting: Double, single rod | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends
