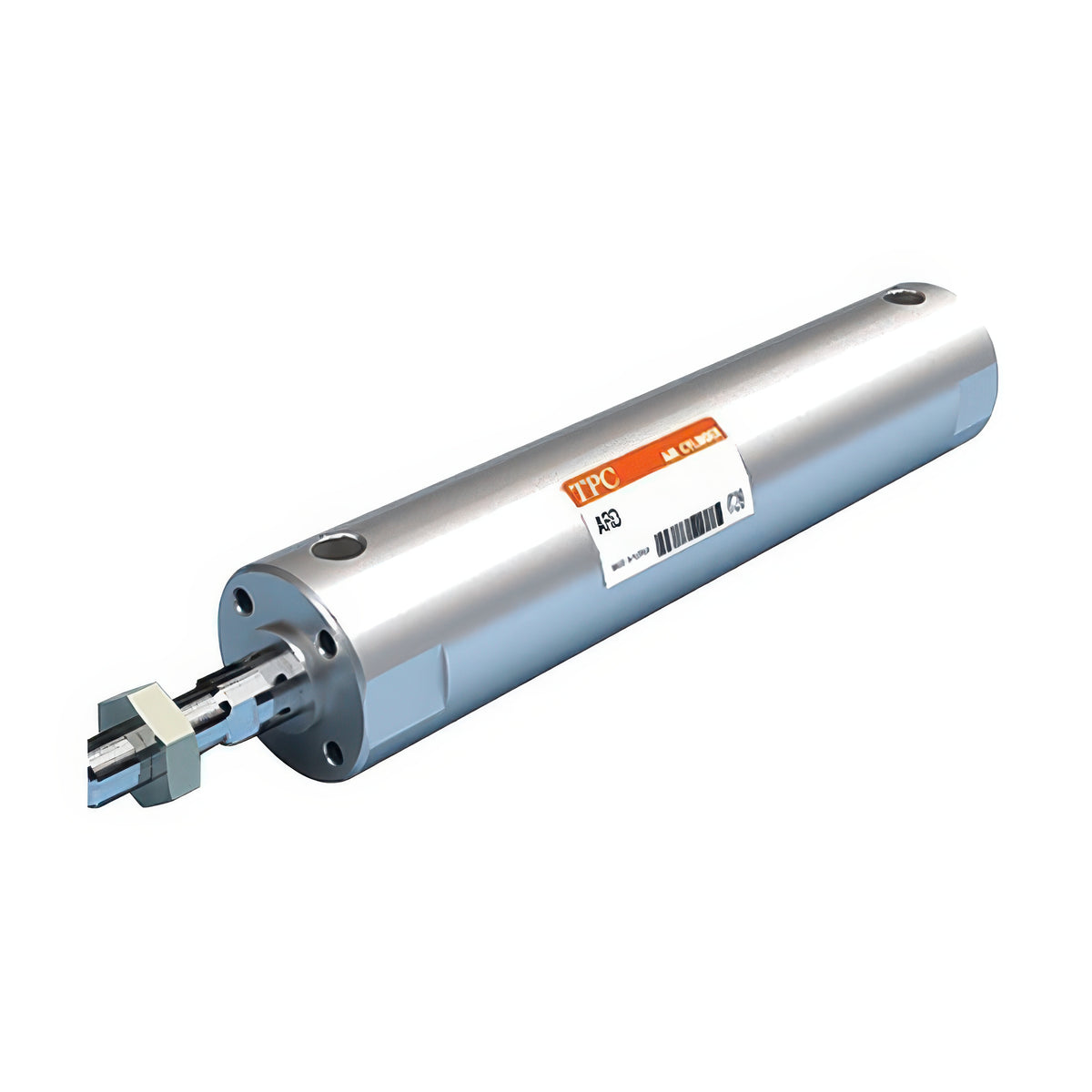

TPC Mechatronics ARD Round Cylinder, Bore 20-63 mm

TPC Mechatronics ARD Round Cylinder, Bore 20-63 mm

The ARD series is a compact round-body pneumatic cylinder with a shortened overall length.

Key features

  • It can run at speeds up to 1000 mm/s and is 10 to 50 percent lighter than comparable cylinders
  • Rubber cushions are standard and adjustable air cushions are available
  • Foot, flange and clevis mounting options and a female rod-end thread are offered
  • A magnet is built in for band-mounted auto switches

Specifications

Mounting B basic
Acting Double
Mounting options B basic, L axial foot, F rod flange, G head flange, D clevis
Max operating pressure 1.0 MPa
Min operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Piston speed 50-1000 mm/s
Cushion Rubber (standard) or air (A)
Lubrication Not required
ARDB20 Bore: 20 mm | Mounting: B basic | Rod diameter: 8 mm | Rod end thread: M8x1.25 (male, F = female option) | Port: Rc1/8 | Stroke range: 25-350 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
ARDB25 Bore: 25 mm | Mounting: B basic | Rod diameter: 10 mm | Rod end thread: M10x1.25 (male, F = female option) | Port: Rc1/8 | Stroke range: 25-400 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
ARDB32 Bore: 32 mm | Mounting: B basic | Rod diameter: 12 mm | Rod end thread: M10x1.25 (male, F = female option) | Port: Rc1/8 | Stroke range: 25-450 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
ARDB40 Bore: 40 mm | Mounting: B basic | Rod diameter: 16 mm | Rod end thread: M14x1.5 (male, F = female option) | Port: Rc1/8 | Stroke range: 25-800 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
ARDB50 Bore: 50 mm | Mounting: B basic | Rod diameter: 20 mm | Rod end thread: M18x1.5 (male, F = female option) | Port: Rc1/4 | Stroke range: 25-1200 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
ARDB63 Bore: 63 mm | Mounting: B basic | Rod diameter: 20 mm | Rod end thread: M18x1.5 (male, F = female option) | Port: Rc1/4 | Stroke range: 25-1200 mm | Acting: Double | Mounting options: B basic, L axial foot, F rod flange, G head flange, D clevis | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-1000 mm/s | Cushion: Rubber (standard) or air (A) | Lubrication: Not required | Magnet built in
