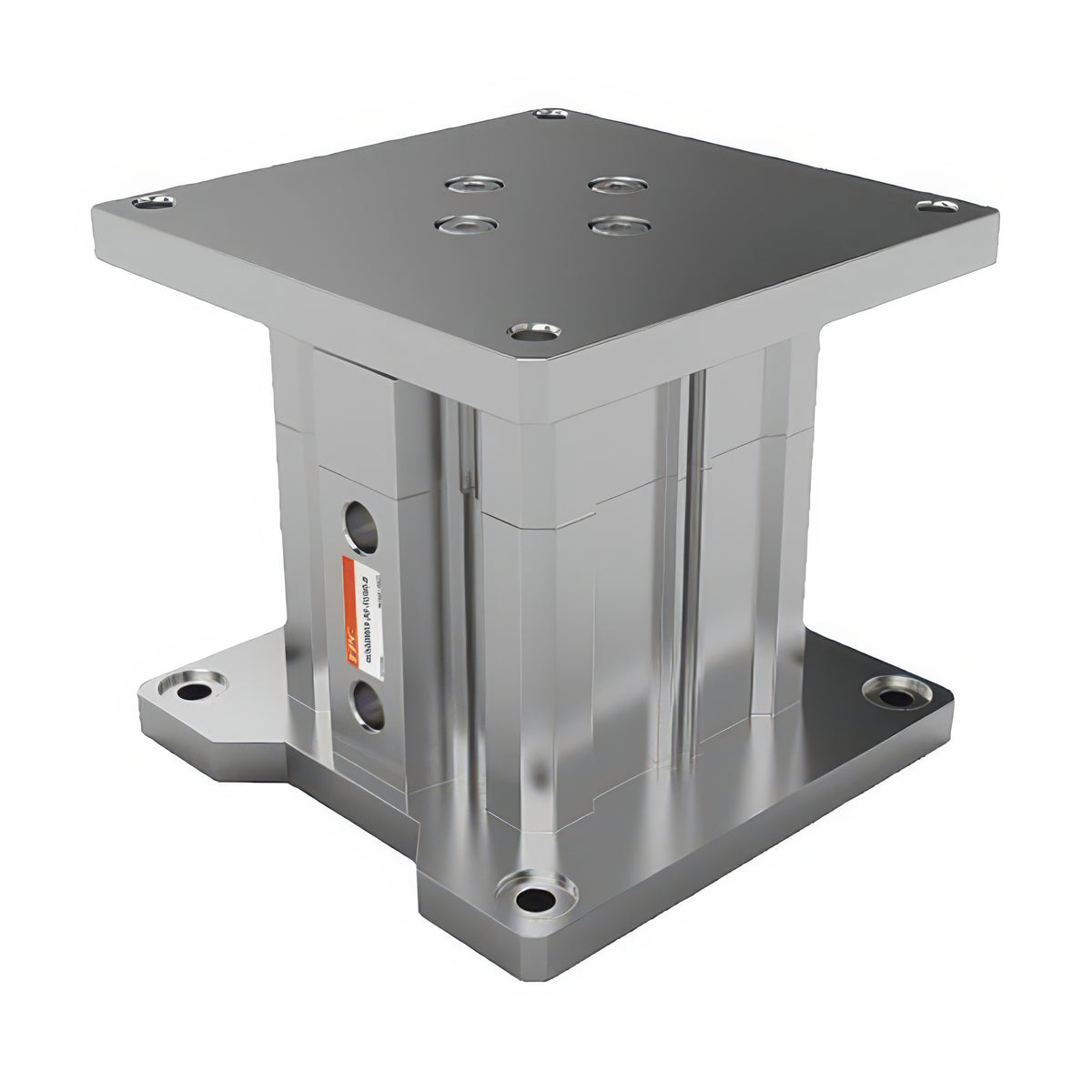

TPC Mechatronics ARM Ram Cylinder, Bore 63-125 mm

TPC Mechatronics ARM Ram Cylinder, Bore 63-125 mm

The ARM series is a ram-type pneumatic cylinder built mainly for lifting.

Key features

  • Its large-diameter piston rod and metal bush give high lateral load capacity, and it can extend without a piston packing in single-acting mode
  • The small retract-side volume reduces air consumption, and no external guide is needed, which lowers installation cost
  • Flanges at both ends allow simple mounting
  • Compact W8/W9, D-A73K and W2P auto switches can be fitted

Specifications

Standard strokes 30, 50, 75, 100 mm
Acting Double (standard) or single-acting extend (S)
Rod anti-rotation No (standard)
Max operating pressure 8.5 kgf/cm2
Min operating pressure 0.5 kgf/cm2
Proof pressure 12.8 kgf/cm2
Piston speed 20-200 mm/s
Cushion Rubber at both stroke ends
Mounting Rod and head flanges (through-bolt or tapped)
ARM63 Bore: 63 mm | Rod diameter: 50 mm | Port: Rc1/8 | Standard strokes: 30, 50, 75, 100 mm | Acting: Double (standard) or single-acting extend (S) | Rod anti-rotation: No (standard) | Max operating pressure: 8.5 kgf/cm2 | Min operating pressure: 0.5 kgf/cm2 | Proof pressure: 12.8 kgf/cm2 | Piston speed: 20-200 mm/s | Cushion: Rubber at both stroke ends | Mounting: Rod and head flanges (through-bolt or tapped) | Magnet built in
ARM80 Bore: 80 mm | Rod diameter: 60 mm | Port: Rc1/8 | Standard strokes: 30, 50, 75, 100 mm | Acting: Double (standard) or single-acting extend (S) | Rod anti-rotation: No (standard) | Max operating pressure: 8.5 kgf/cm2 | Min operating pressure: 0.5 kgf/cm2 | Proof pressure: 12.8 kgf/cm2 | Piston speed: 20-200 mm/s | Cushion: Rubber at both stroke ends | Mounting: Rod and head flanges (through-bolt or tapped) | Magnet built in
ARM100 Bore: 100 mm | Rod diameter: 80 mm | Port: Rc1/4 | Standard strokes: 30, 50, 75, 100 mm | Acting: Double (standard) or single-acting extend (S) | Rod anti-rotation: No (standard) | Max operating pressure: 8.5 kgf/cm2 | Min operating pressure: 0.5 kgf/cm2 | Proof pressure: 12.8 kgf/cm2 | Piston speed: 20-200 mm/s | Cushion: Rubber at both stroke ends | Mounting: Rod and head flanges (through-bolt or tapped) | Magnet built in
ARM125 Bore: 125 mm | Rod diameter: 100 mm | Port: Rc1/4 | Standard strokes: 30, 50, 75, 100 mm | Acting: Double (standard) or single-acting extend (S) | Rod anti-rotation: No (standard) | Max operating pressure: 8.5 kgf/cm2 | Min operating pressure: 0.5 kgf/cm2 | Proof pressure: 12.8 kgf/cm2 | Piston speed: 20-200 mm/s | Cushion: Rubber at both stroke ends | Mounting: Rod and head flanges (through-bolt or tapped) | Magnet built in
