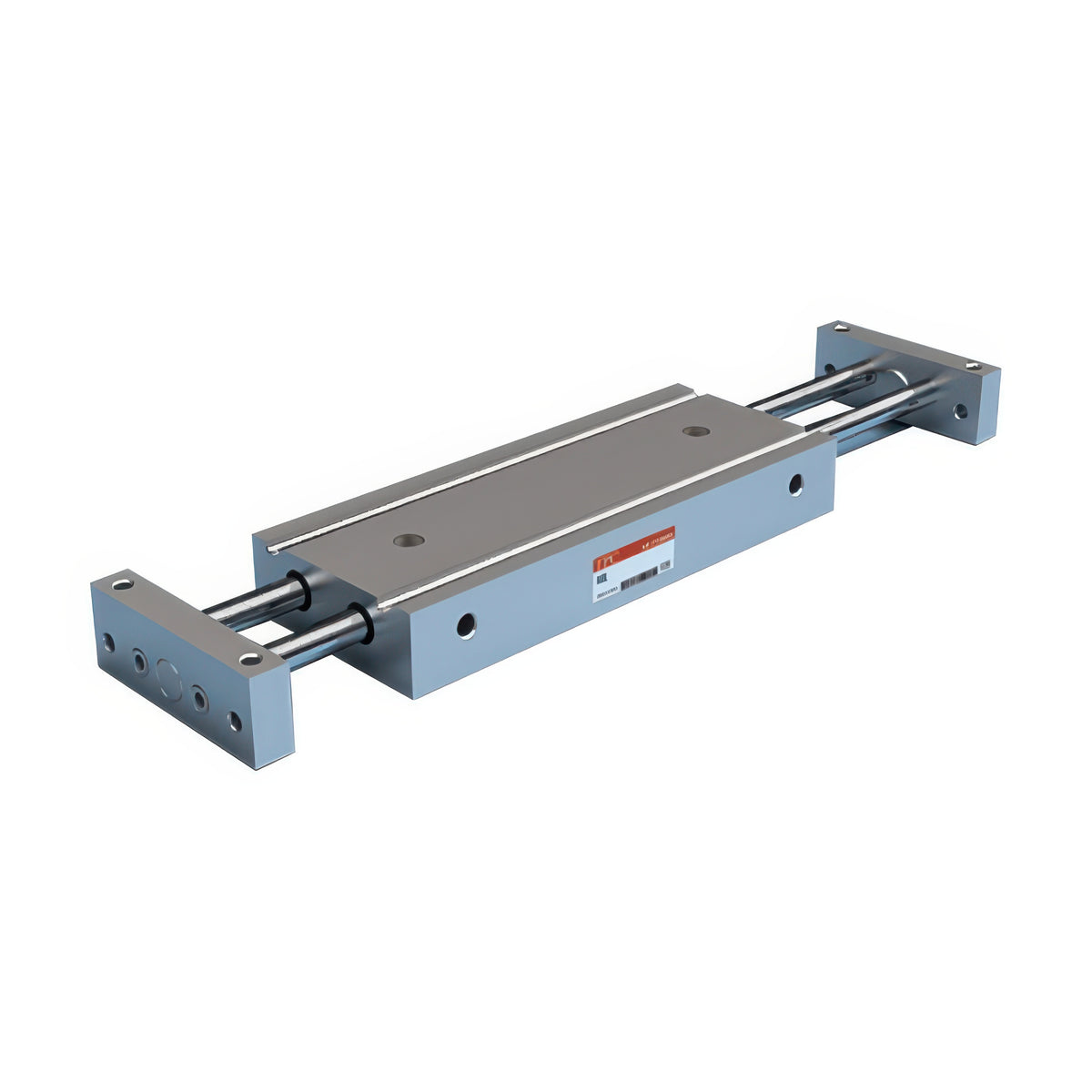

TPC Mechatronics ASL Series Slide Cylinder (Double Acting, Double Rod)

TPC Mechatronics ASL Series Slide Cylinder (Double Acting, Double Rod)

The ASL series is a thin double-acting, double-rod slide cylinder for precise positioning of moving parts, in bore sizes 12 to 32 mm.

Key features

  • It can be mounted either by the tube (ASLT) or by the end plates (ASLP), from the bottom or from the top
  • The twin-rod design gives smooth operation and about twice the output of a conventional cylinder of the same bore
  • A magnet and switch rail are built in for W8, W9 and W20 auto switches, and stroke-end stoppers with urethane bumpers allow fine stroke adjustment
  • Standard strokes range from 25 mm up to 150 mm depending on bore
ASLT12 Bore: 12 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.19-0.29 kg | Bottom mounting bolt: M4x0.7 (max torque 2.1 N·m) | Top mounting bolt: M3x0.5 (max torque 0.88 N·m)
ASLT16 Bore: 16 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.32-0.58 kg | Bottom mounting bolt: M5x0.8 (max torque 4.3 N·m) | Top mounting bolt: M4x0.7 (max torque 2.1 N·m)
ASLT20 Bore: 20 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.62-0.95 kg | Bottom mounting bolt: M6x1.0 (max torque 5.9 N·m) | Top mounting bolt: M5x0.8 (max torque 4.3 N·m)
ASLT25 Bore: 25 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.89-1.58 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLT32 Bore: 32 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 1.49-2.74 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLP12 Bore: 12 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.19-0.29 kg | Bottom mounting bolt: M4x0.7 (max torque 2.1 N·m) | Top mounting bolt: M3x0.5 (max torque 0.88 N·m)
ASLP16 Bore: 16 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.32-0.58 kg | Bottom mounting bolt: M5x0.8 (max torque 4.3 N·m) | Top mounting bolt: M4x0.7 (max torque 2.1 N·m)
ASLP20 Bore: 20 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.62-0.95 kg | Bottom mounting bolt: M6x1.0 (max torque 5.9 N·m) | Top mounting bolt: M5x0.8 (max torque 4.3 N·m)
ASLP25 Bore: 25 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.89-1.58 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLP32 Bore: 32 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 1.49-2.74 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASL12-SK For: ASLT12 / ASLP12 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL16-SK For: ASLT16 / ASLP16 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL20-SK For: ASLT20 / ASLP20 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL25-SK For: ASLT25 / ASLP25 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL32-SK For: ASLT32 / ASLP32 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL12-SA For: ASL12, ASL16 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M8x1.0 | Stroke adjustment range: 7.5 mm (Ø12), 5.5 mm (Ø16)
ASL20-SA For: ASL20, ASL25 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M10x1.0 | Stroke adjustment range: 7.5 mm (Ø20), 5.5 mm (Ø25)
ASL32-SA For: ASL32 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M14x1.5 | Stroke adjustment range: 5.5 mm
Pneumatic CylindersTPC Mechatronics
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ASL Series Slide Cylinder (Double Acting, Double Rod)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (18)

ASLT12, ASLT16, ASLT20, ASLT25, ASLT32, ASLP12, ASLP16, ASLP20, ASLP25, ASLP32 + 8 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASLT12Bore: 12 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.19-0.29 kg | Bottom mounting bolt: M4x0.7 (max torque 2.1 N·m) | Top mounting bolt: M3x0.5 (max torque 0.88 N·m)
ASLT16Bore: 16 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.32-0.58 kg | Bottom mounting bolt: M5x0.8 (max torque 4.3 N·m) | Top mounting bolt: M4x0.7 (max torque 2.1 N·m)
ASLT20Bore: 20 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.62-0.95 kg | Bottom mounting bolt: M6x1.0 (max torque 5.9 N·m) | Top mounting bolt: M5x0.8 (max torque 4.3 N·m)
ASLT25Bore: 25 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.89-1.58 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLT32Bore: 32 mm | Mounting: Tube fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 1.49-2.74 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLP12Bore: 12 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.19-0.29 kg | Bottom mounting bolt: M4x0.7 (max torque 2.1 N·m) | Top mounting bolt: M3x0.5 (max torque 0.88 N·m)
ASLP16Bore: 16 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.32-0.58 kg | Bottom mounting bolt: M5x0.8 (max torque 4.3 N·m) | Top mounting bolt: M4x0.7 (max torque 2.1 N·m)
ASLP20Bore: 20 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.62-0.95 kg | Bottom mounting bolt: M6x1.0 (max torque 5.9 N·m) | Top mounting bolt: M5x0.8 (max torque 4.3 N·m)
ASLP25Bore: 25 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 0.89-1.58 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASLP32Bore: 32 mm | Mounting: Plate fixed | Acting: Double, double rod | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Magnet: Built-in | Cushion: Stoppers with bumpers (2 pcs) | Mass (shortest to longest standard stroke): 1.49-2.74 kg | Bottom mounting bolt: M8x1.25 (max torque 18 N·m) | Top mounting bolt: M6x1.0 (max torque 5.9 N·m)
ASL12-SKFor: ASLT12 / ASLP12 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL16-SKFor: ASLT16 / ASLP16 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL20-SKFor: ASLT20 / ASLP20 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL25-SKFor: ASLT25 / ASLP25 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL32-SKFor: ASLT32 / ASLP32 | Item: Packing set (piston packing, rod packing, tube gasket)
ASL12-SAFor: ASL12, ASL16 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M8x1.0 | Stroke adjustment range: 7.5 mm (Ø12), 5.5 mm (Ø16)
ASL20-SAFor: ASL20, ASL25 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M10x1.0 | Stroke adjustment range: 7.5 mm (Ø20), 5.5 mm (Ø25)
ASL32-SAFor: ASL32 | Item: Bumper holder (stroke adjuster), 2 pcs per set | Thread: M14x1.5 | Stroke adjustment range: 5.5 mm
