TPC Mechatronics ASTH Horizontal Stopper Cylinder, 32 / 50 mm

TPC Mechatronics ASTH Horizontal Stopper Cylinder, 32 / 50 mm

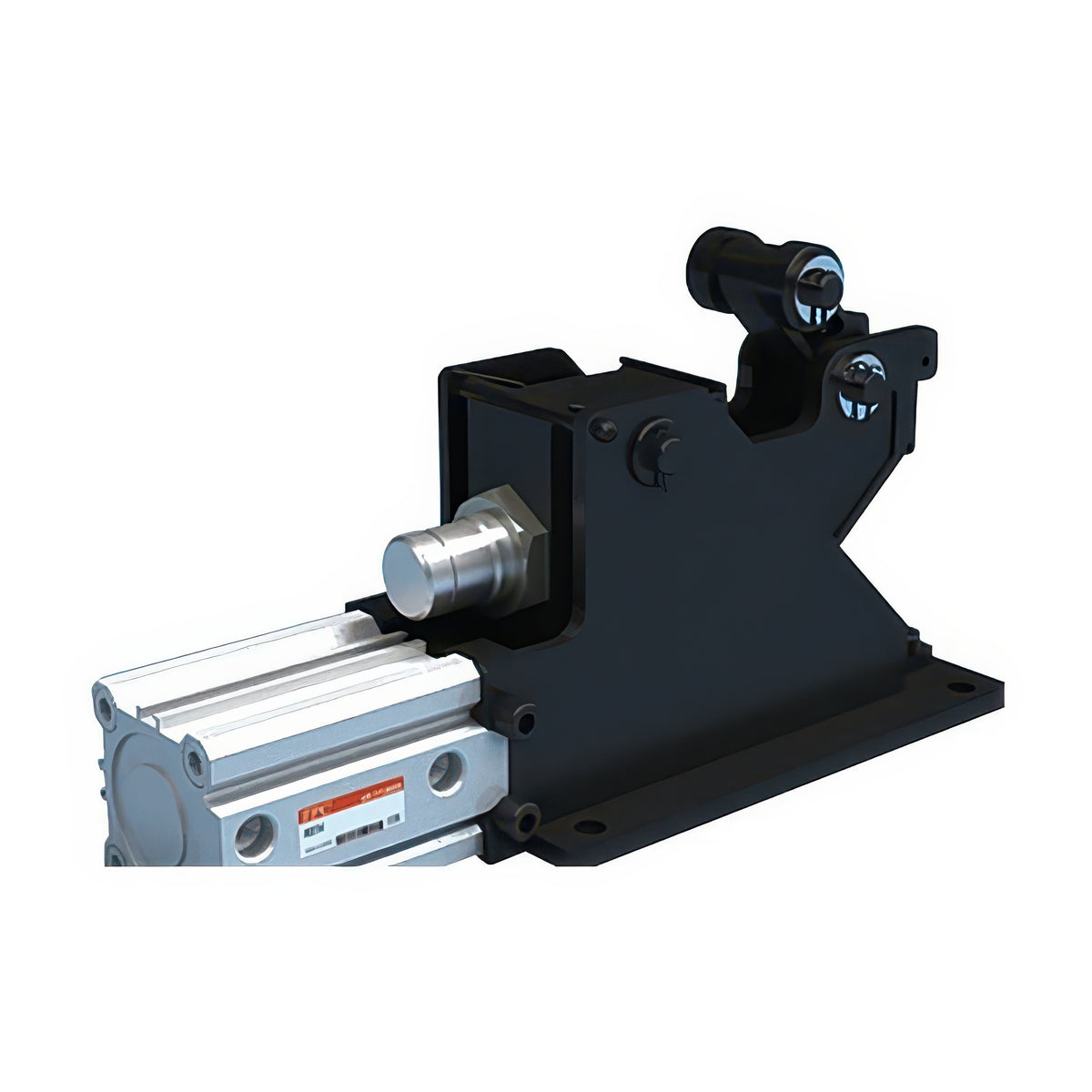

The ASTH series is a horizontally mounted stopper cylinder for stopping pallets on conveyor lines.

Key features

  • Lateral load from the pallet is not applied directly to the cylinder, giving high resistance to side loads
  • Because the cylinder lies horizontally it suits conveyors with little space underneath, and no tube hole is needed in the mounting plate
  • Stopping capacity is higher than vertical stoppers of the same size, and an integrated shock absorber cushions the pallet
  • ADSTH models accept auto switches to detect lever position

Specifications

Acting Double
Operating pressure 0.1-1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion Rubber
Mounting Horizontal (bottom frame)
ASTH32 Bore x stroke: 32 x 40 mm (stroke fixed) | Version: Standard | Pallet load: 5-600 kgf | Shock absorber: SB2015-B (M20x1.5) | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Resin standard, steel M option
ASTH50 Bore x stroke: 50 x 50 mm (stroke fixed) | Version: Standard | Pallet load: 10-1,400 kgf (M36) / 10-2,200 kgf (M42) | Shock absorber: SB3625-B (M36x1.5) standard, SB4225-BS (M42x1.5) option H | Weight: 9.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Steel (M) standard
ADSTH32 Bore x stroke: 32 x 40 mm (stroke fixed) | Version: Auto switch type (D) | Pallet load: 5-600 kgf | Shock absorber: SB2015-B (M20x1.5) | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Resin standard, steel M option
ADSTH50 Bore x stroke: 50 x 50 mm (stroke fixed) | Version: Auto switch type (D) | Pallet load: 10-1,400 kgf (M36) / 10-2,200 kgf (M42) | Shock absorber: SB3625-B (M36x1.5) standard, SB4225-BS (M42x1.5) option H | Weight: 9.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Steel (M) standard
Pneumatic CylindersTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ASTH Horizontal Stopper Cylinder, 32 / 50 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (4)

ASTH32, ASTH50, ADSTH32, ADSTH50

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASTH32Bore x stroke: 32 x 40 mm (stroke fixed) | Version: Standard | Pallet load: 5-600 kgf | Shock absorber: SB2015-B (M20x1.5) | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Resin standard, steel M option
ASTH50Bore x stroke: 50 x 50 mm (stroke fixed) | Version: Standard | Pallet load: 10-1,400 kgf (M36) / 10-2,200 kgf (M42) | Shock absorber: SB3625-B (M36x1.5) standard, SB4225-BS (M42x1.5) option H | Weight: 9.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Steel (M) standard
ADSTH32Bore x stroke: 32 x 40 mm (stroke fixed) | Version: Auto switch type (D) | Pallet load: 5-600 kgf | Shock absorber: SB2015-B (M20x1.5) | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Resin standard, steel M option
ADSTH50Bore x stroke: 50 x 50 mm (stroke fixed) | Version: Auto switch type (D) | Pallet load: 10-1,400 kgf (M36) / 10-2,200 kgf (M42) | Shock absorber: SB3625-B (M36x1.5) standard, SB4225-BS (M42x1.5) option H | Weight: 9.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mounting: Horizontal (bottom frame) | Stop roller: Steel (M) standard
