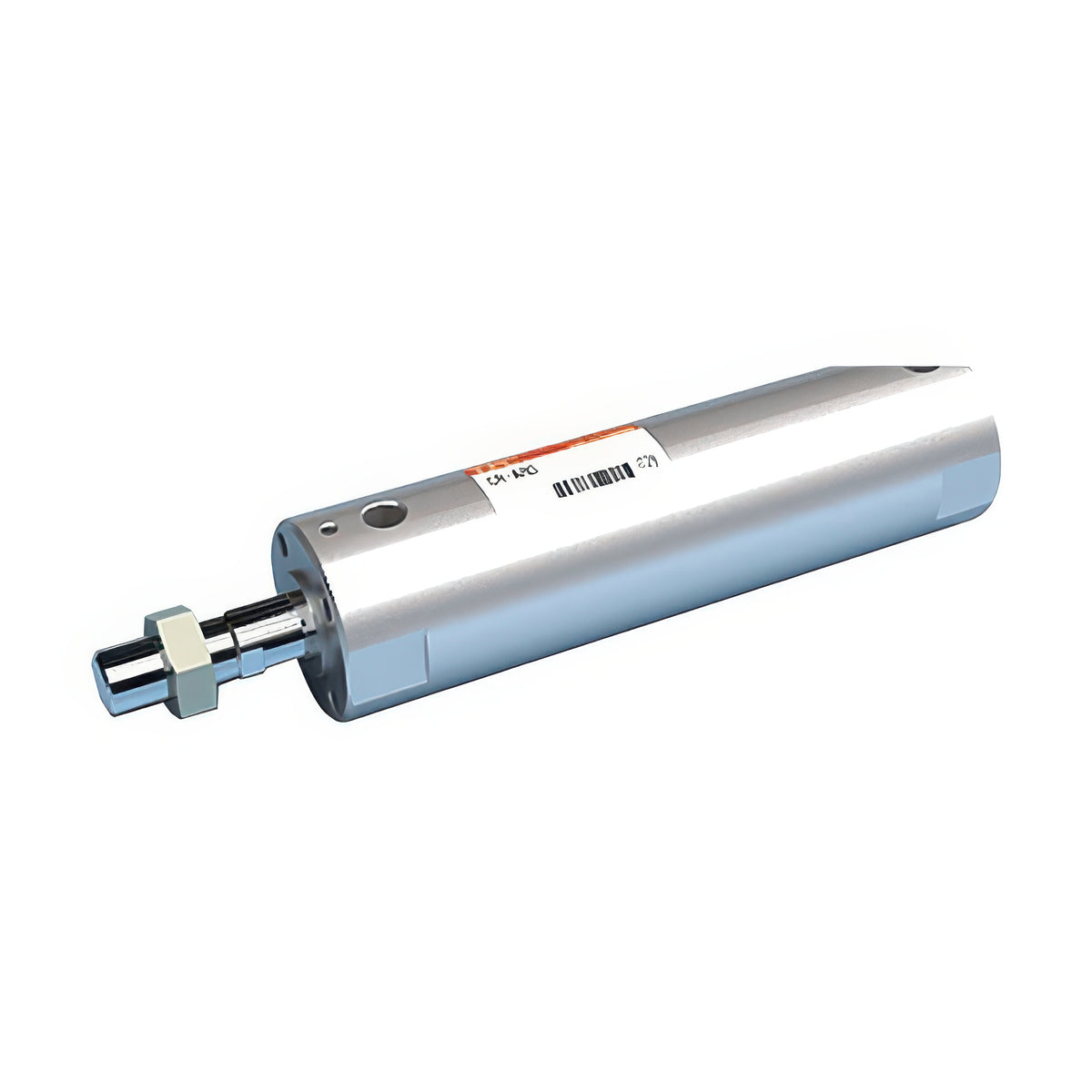

TPC Mechatronics CR / CV-ARD Clean Room Round Cylinder, Bore 50-63 mm

TPC Mechatronics CR / CV-ARD Clean Room Round Cylinder, Bore 50-63 mm

The CR(CV)-ARD series is a round-body pneumatic cylinder developed for clean-room use.

Key features

  • CR models have a relief port and CV models have a vacuum suction port to extract internal particles
  • A stainless steel piston rod improves resistance to moisture and chemicals
  • Dedicated low-dust grease minimizes particle generation during operation
  • Rubber or air cushions are available and a magnet is built in for D-C73K auto switches

Specifications

Mounting B basic
Port Rc1/4
Strokes 25-300 mm
Acting Double, single rod, non-lubricated
Max operating pressure 1.0 MPa
Min operating pressure 0.05 MPa
Proof pressure 1.5 MPa
Piston speed 50-400 mm/s
Cushion Rubber (standard) or air (A)
CR-ARDB50 Bore: 50 mm | Type: Relief port type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CR-ARDB63 Bore: 63 mm | Type: Relief port type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CV-ARDB50 Bore: 50 mm | Type: Vacuum suction type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CV-ARDB63 Bore: 63 mm | Type: Vacuum suction type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
Pneumatic CylindersTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics CR / CV-ARD Clean Room Round Cylinder, Bore 50-63 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (4)

CR-ARDB50, CR-ARDB63, CV-ARDB50, CV-ARDB63

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CR-ARDB50Bore: 50 mm | Type: Relief port type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CR-ARDB63Bore: 63 mm | Type: Relief port type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CV-ARDB50Bore: 50 mm | Type: Vacuum suction type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
CV-ARDB63Bore: 63 mm | Type: Vacuum suction type (clean room) | Mounting: B basic | Port: Rc1/4 | Strokes: 25-300 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.05 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber (standard) or air (A)
