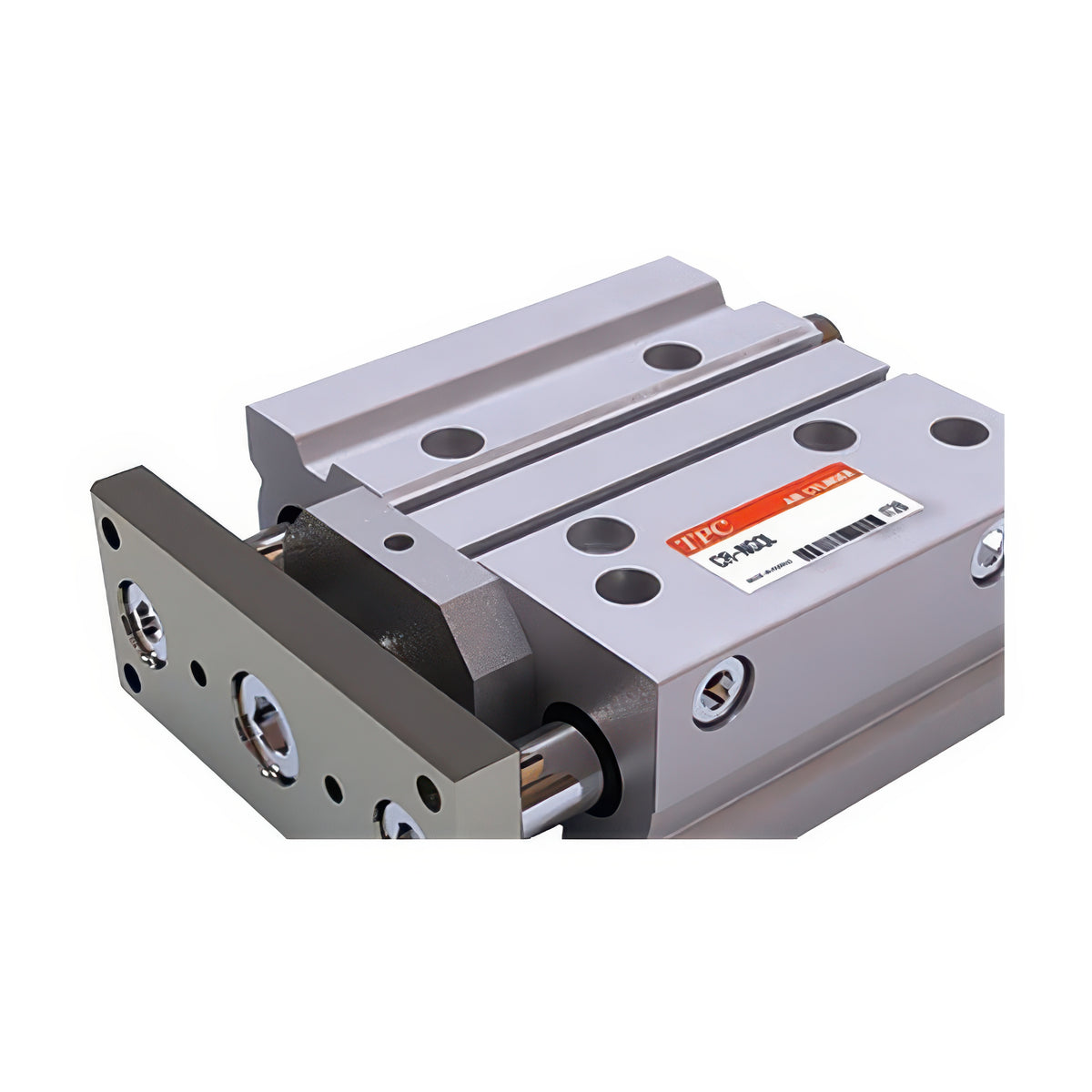

The CR(CV)-NGQL series is a ball-bearing guided compact cylinder developed for clean rooms.

Key features

  • CR models have a relief port and CV models have a vacuum suction port for particle extraction
  • A stainless steel piston rod improves corrosion resistance, and a dedicated grease reduces dust generation
  • The integrated guide gives high lateral load resistance and accurate non-rotation
  • It can be mounted from the rear, side or through the body, and accepts compact auto switches

Specifications

Guide bearing Ball bearing (L)
Relief/suction port M5x0.8
Acting Double
Max operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Cushion Rubber both ends
Piston rod Stainless steel
CR-NGQL12 Bore: 12 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL16 Bore: 16 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL20 Bore: 20 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL25 Bore: 25 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL32 Bore: 32 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL40 Bore: 40 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL50 Bore: 50 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL63 Bore: 63 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL12 Bore: 12 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL16 Bore: 16 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL20 Bore: 20 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL25 Bore: 25 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL32 Bore: 32 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL40 Bore: 40 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL50 Bore: 50 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL63 Bore: 63 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
Pneumatic CylindersTPC Mechatronics
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics CR / CV-NGQL Clean Room Guided Compact Cylinder, Bore 12-63 mm

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (16)

CR-NGQL12, CR-NGQL16, CR-NGQL20, CR-NGQL25, CR-NGQL32, CR-NGQL40, CR-NGQL50, CR-NGQL63, CV-NGQL12, CV-NGQL16 + 6 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CR-NGQL12Bore: 12 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL16Bore: 16 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL20Bore: 20 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL25Bore: 25 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL32Bore: 32 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL40Bore: 40 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL50Bore: 50 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CR-NGQL63Bore: 63 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL12Bore: 12 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL16Bore: 16 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Relief/suction port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL20Bore: 20 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL25Bore: 25 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL32Bore: 32 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL40Bore: 40 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL50Bore: 50 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
CV-NGQL63Bore: 63 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc | Relief/suction port: M5x0.8 | Standard strokes: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm | Acting: Double | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber both ends | Piston rod: Stainless steel
