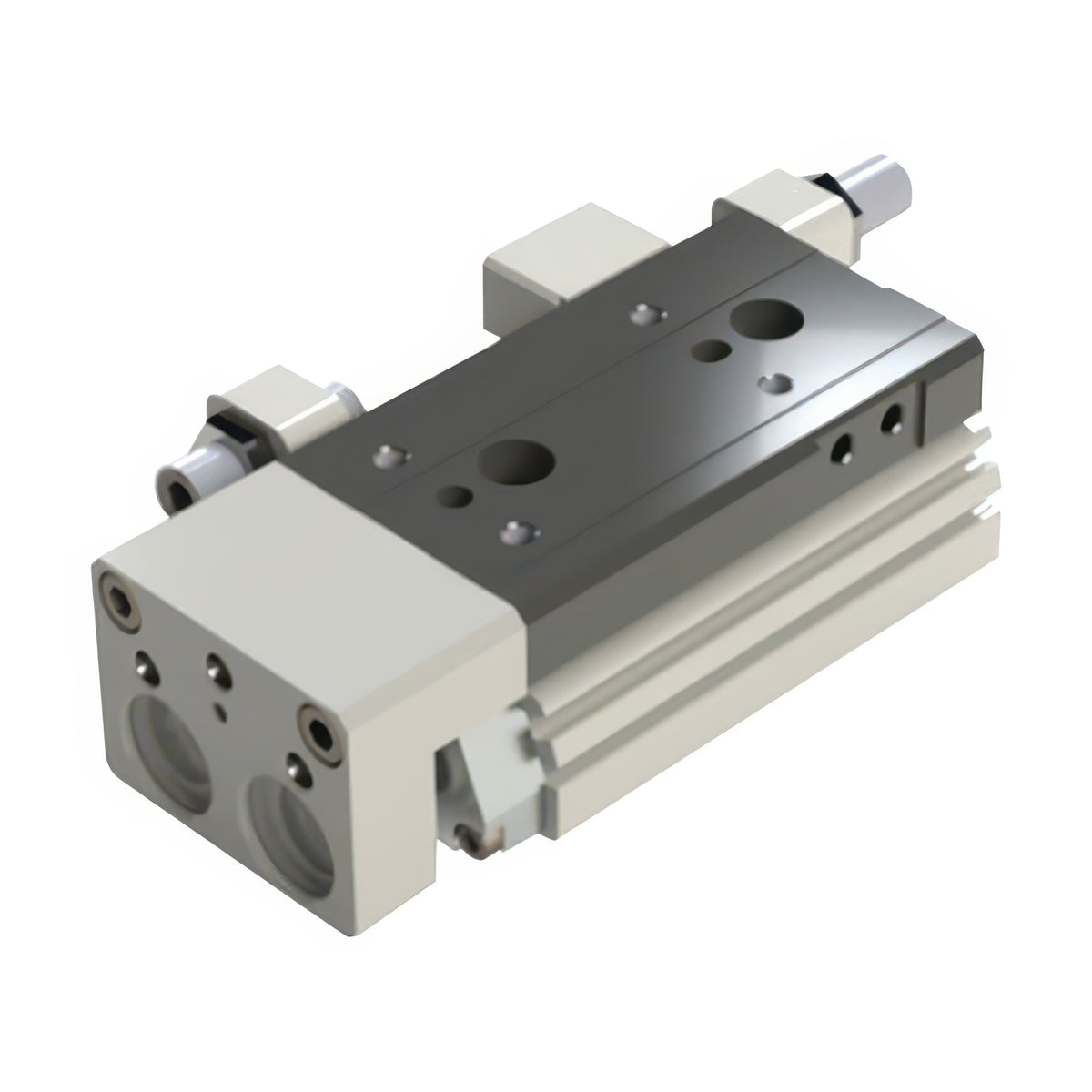

TPC Mechatronics CR/CV-NLGD Clean High-Precision Table Cylinder

TPC Mechatronics CR/CV-NLGD Clean High-Precision Table Cylinder

The CR/CV-NLGD is a low-particle clean-room version of the NLGD high-precision table cylinder in bores 6 to 25 mm.

Key features

  • CR models use a relief port and CV models a vacuum suction port to contain particles generated during operation
  • A dedicated clean-room grease minimizes dust generation
  • The table and LM block are electroless nickel plated for better corrosion resistance
  • A symmetric (L) version with mirrored port direction is available, and the series is dimensionally interchangeable with common competitor models

Specifications

Acting Double
Operating pressure 0.15-0.7 MPa
Proof pressure 1.05 MPa
Speed 50-500 mm/s (metal stopper 50-200 mm/s)
Grease PTFE-based clean grease
Options stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD06 Bore: 6 mm | Rod diameter: 3 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD06L Bore: 6 mm | Rod diameter: 3 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD08 Bore: 8 mm | Rod diameter: 4 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD08L Bore: 8 mm | Rod diameter: 4 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD12 Bore: 12 mm | Rod diameter: 6 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD12L Bore: 12 mm | Rod diameter: 6 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD16 Bore: 16 mm | Rod diameter: 8 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD16L Bore: 16 mm | Rod diameter: 8 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD20 Bore: 20 mm | Rod diameter: 10 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD20L Bore: 20 mm | Rod diameter: 10 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD25 Bore: 25 mm | Rod diameter: 12 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD25L Bore: 25 mm | Rod diameter: 12 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD06 Bore: 6 mm | Rod diameter: 3 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD06L Bore: 6 mm | Rod diameter: 3 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD08 Bore: 8 mm | Rod diameter: 4 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD08L Bore: 8 mm | Rod diameter: 4 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD12 Bore: 12 mm | Rod diameter: 6 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD12L Bore: 12 mm | Rod diameter: 6 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD16 Bore: 16 mm | Rod diameter: 8 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD16L Bore: 16 mm | Rod diameter: 8 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD20 Bore: 20 mm | Rod diameter: 10 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD20L Bore: 20 mm | Rod diameter: 10 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD25 Bore: 25 mm | Rod diameter: 12 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD25L Bore: 25 mm | Rod diameter: 12 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
Pneumatic CylindersTPC Mechatronics
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics CR/CV-NLGD Clean High-Precision Table Cylinder

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (24)

CR-NLGD06, CR-NLGD06L, CR-NLGD08, CR-NLGD08L, CR-NLGD12, CR-NLGD12L, CR-NLGD16, CR-NLGD16L, CR-NLGD20, CR-NLGD20L + 14 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CR-NLGD06Bore: 6 mm | Rod diameter: 3 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD06LBore: 6 mm | Rod diameter: 3 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD08Bore: 8 mm | Rod diameter: 4 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD08LBore: 8 mm | Rod diameter: 4 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD12Bore: 12 mm | Rod diameter: 6 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD12LBore: 12 mm | Rod diameter: 6 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD16Bore: 16 mm | Rod diameter: 8 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD16LBore: 16 mm | Rod diameter: 8 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD20Bore: 20 mm | Rod diameter: 10 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD20LBore: 20 mm | Rod diameter: 10 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD25Bore: 25 mm | Rod diameter: 12 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CR-NLGD25LBore: 25 mm | Rod diameter: 12 mm | Clean version: CR = relief port type, cleanliness ISO 14644-1 class 3.5 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD06Bore: 6 mm | Rod diameter: 3 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD06LBore: 6 mm | Rod diameter: 3 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 29/21 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD08Bore: 8 mm | Rod diameter: 4 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD08LBore: 8 mm | Rod diameter: 4 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 51/38 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD12Bore: 12 mm | Rod diameter: 6 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD12LBore: 12 mm | Rod diameter: 6 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 113/85 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD16Bore: 16 mm | Rod diameter: 8 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD16LBore: 16 mm | Rod diameter: 8 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 201/151 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD20Bore: 20 mm | Rod diameter: 10 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD20LBore: 20 mm | Rod diameter: 10 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD25Bore: 25 mm | Rod diameter: 12 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: standard port position | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
CV-NLGD25LBore: 25 mm | Rod diameter: 12 mm | Clean version: CV = vacuum suction type, cleanliness ISO 14644-1 class 3 | Variant: symmetric type (port direction mirrored) | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Grease: PTFE-based clean grease | Options: stroke adjusters RF/RB/R (damper) or MF/MB/M (metal stopper)
