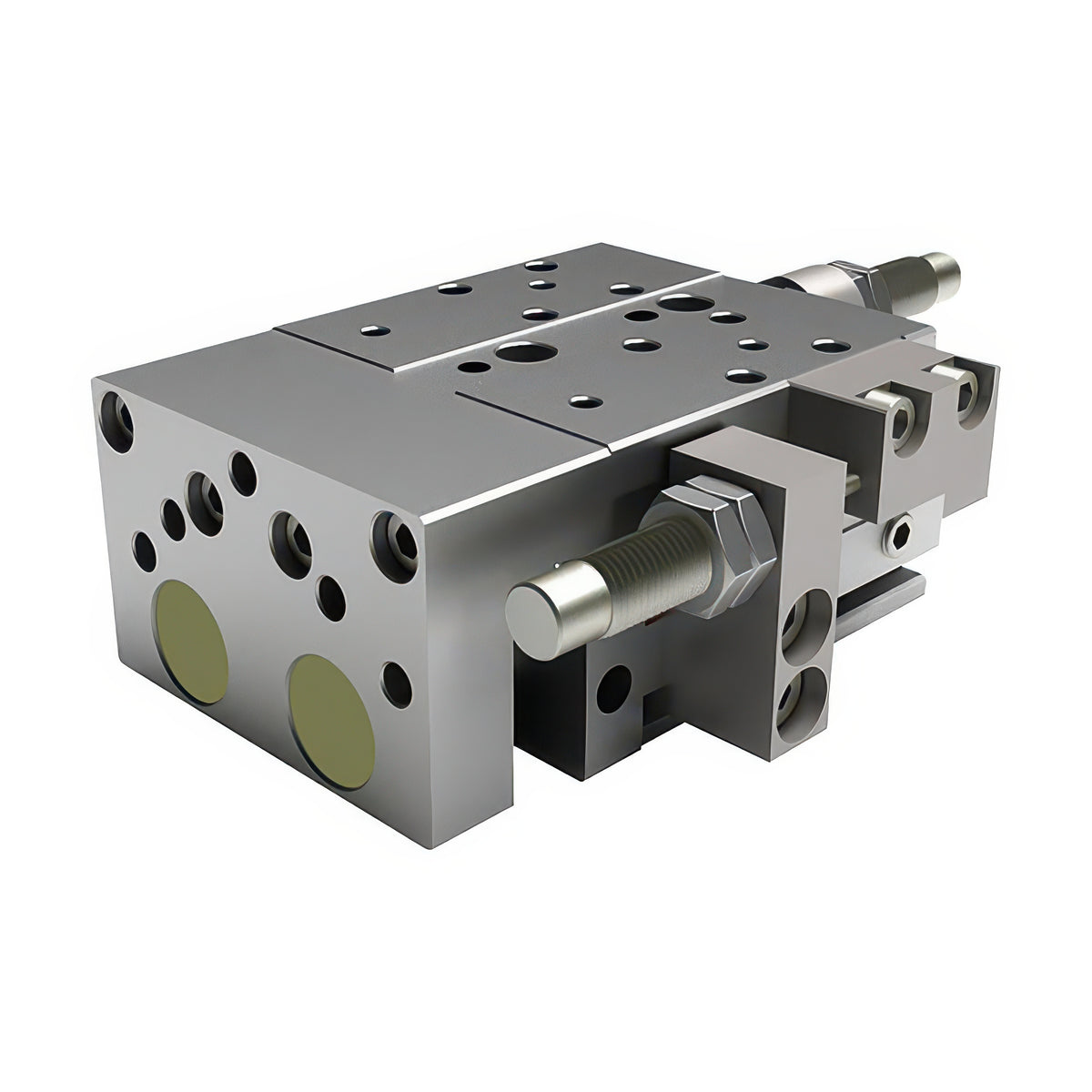

TPC Mechatronics CR/CV-NLPD Clean Precision Table Cylinder (Double Rod)

TPC Mechatronics CR/CV-NLPD Clean Precision Table Cylinder (Double Rod)

The CR/CV-NLPD is a clean-room version of the NLPD precision double-rod table cylinder for bores 20, 25 and 32 mm.

Key features

  • The CR prefix denotes a relief-port type and the CV prefix a vacuum-suction type for removing generated particles
  • A recirculating linear guide gives high rigidity and accuracy, and the dual-cylinder design increases output
  • The enlarged work mounting surface improves mounting stability
  • Optional front, rear or both-end stroke adjusters (urethane damper or metal stopper) and auto switches are available

Specifications

Acting Double (dual cylinder)
Operating pressure 0.15-0.7 MPa
Proof pressure 1.05 MPa
Speed 50-500 mm/s (metal stopper 50-200 mm/s)
Stroke tolerance 0 to +1 mm
Lubrication not required
Options stroke adjusters RF/RB/R (urethane damper or metal stopper)
CR-NLPD20 Bore: 20 mm | Clean version: CR = relief port type | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
CR-NLPD25 Bore: 25 mm | Clean version: CR = relief port type | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
CR-NLPD32 Bore: 32 mm | Clean version: CR = relief port type | Standard strokes: 30, 75, 100 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 804/603 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
CV-NLPD20 Bore: 20 mm | Clean version: CV = vacuum suction type | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 314/236 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
CV-NLPD25 Bore: 25 mm | Clean version: CV = vacuum suction type | Standard strokes: 10, 20, 30, 40, 50, 75, 100, 125, 150 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 491/378 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
CV-NLPD32 Bore: 32 mm | Clean version: CV = vacuum suction type | Standard strokes: 30, 75, 100 mm | Acting: Double (dual cylinder) | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s (metal stopper 50-200 mm/s) | Theoretical force at 0.5 MPa (extend/retract): 804/603 N | Stroke tolerance: 0 to +1 mm | Lubrication: not required | Options: stroke adjusters RF/RB/R (urethane damper or metal stopper)
