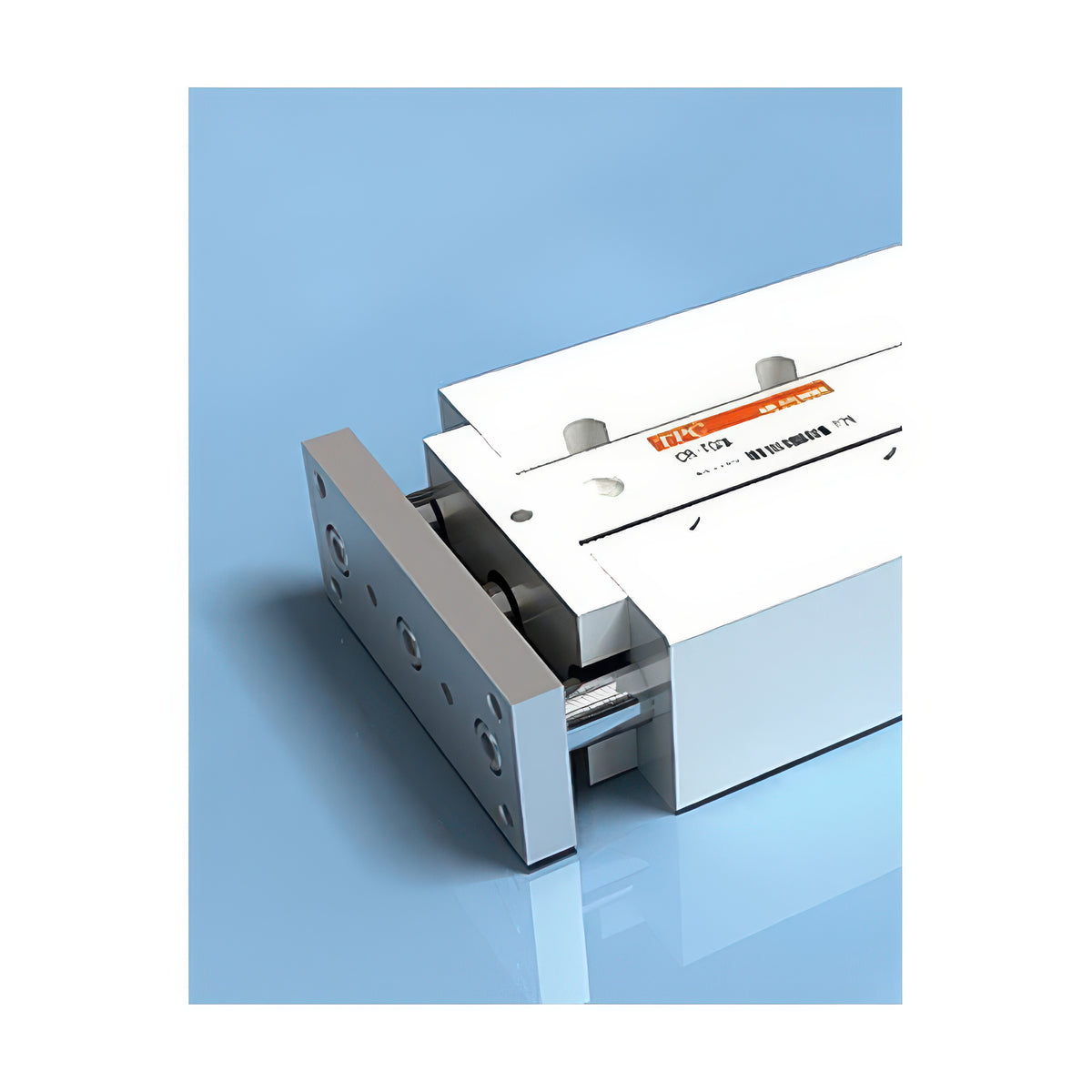

The CR(CV)-TGQL series is a guided compact cylinder developed for clean-room use.

Key features

  • CR models have a relief port, while CV models have a vacuum suction port to draw off particles generated inside the cylinder
  • A stainless steel piston rod improves resistance to moisture and chemicals, and a dedicated low-dust grease minimizes particle emission
  • The integrated ball-bearing guide gives high lateral load resistance and accurate non-rotation
  • A magnet is built in for auto switch detection

Specifications

Guide bearing Ball bearing (L)
Acting Double, single rod, non-lubricated
Max operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-400 mm/s
Cushion Rubber
Piston rod Stainless steel
CR-TGQL12 Bore: 12 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL16 Bore: 16 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL20 Bore: 20 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL25 Bore: 25 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL32 Bore: 32 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL40 Bore: 40 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL50 Bore: 50 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CR-TGQL63 Bore: 63 mm | Type: Relief port type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL12 Bore: 12 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL16 Bore: 16 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: M5x0.8 | Standard strokes: 10, 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.12 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL20 Bore: 20 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL25 Bore: 25 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 20, 30, 40, 50, 75, 100 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL32 Bore: 32 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL40 Bore: 40 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/8 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL50 Bore: 50 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
CV-TGQL63 Bore: 63 mm | Type: Vacuum suction type (clean room) | Guide bearing: Ball bearing (L) | Port: Rc1/4 | Standard strokes: 25, 50, 75, 100, 125, 150 mm | Acting: Double, single rod, non-lubricated | Max operating pressure: 1.0 MPa | Min operating pressure: 0.1 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-400 mm/s | Cushion: Rubber | Piston rod: Stainless steel | Auto switch magnet built in
