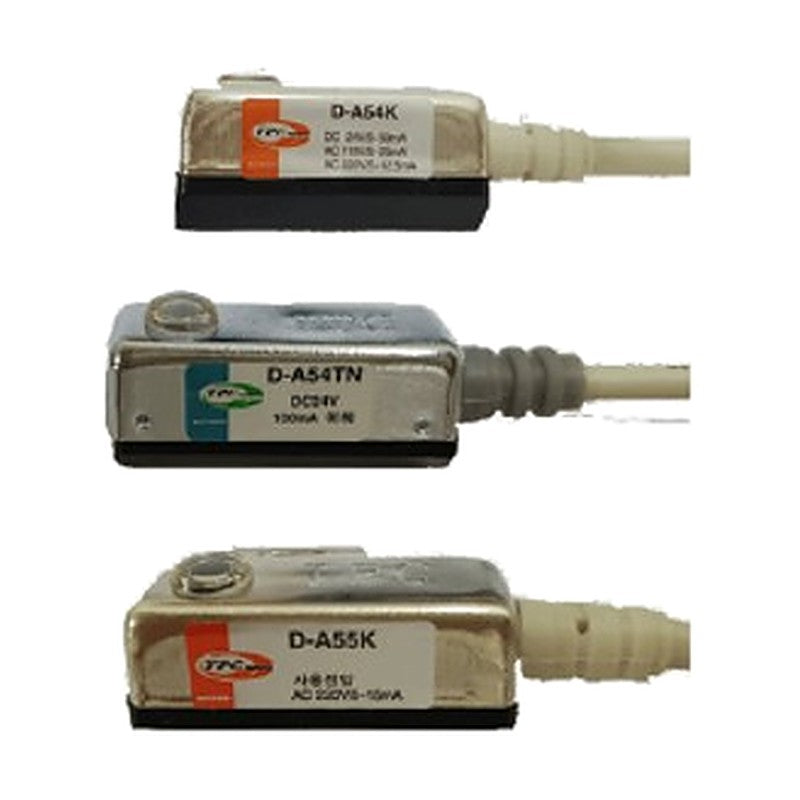

TPC Mechatronics D-A5 Series Auto Switch (Grommet, Reed 2-Wire)

TPC Mechatronics D-A5 Series Auto Switch (Grommet, Reed 2-Wire)

The D-A5 series is a grommet-type general-purpose auto switch for detecting the piston magnet position of pneumatic cylinders, used with relays and sequence controllers.

Key features

  • The reed (contact) 2-wire models have a built-in contact protection circuit and a red LED that lights when ON
  • Rated for IP67 (oil resistant), 30G shock resistance, ambient temperature -10 to 60 C, with oil-resistant vinyl cabtyre lead wire
  • Standard lead wire is 0.5 m; a 3 m lead wire is available with the L suffix at order
  • The D-A55K is a made-to-order option

Specifications

Contact Reed, 2-wire
Internal voltage drop 2.4 V max
Standard lead wire 0.5 m
D-A54K Contact: Reed, 2-wire | Load voltage: DC24V / AC100V / AC200V | Load current: 5-50 / 5-25 / 5-12.5 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: 8.5 mm | Operating range: 6-13 mm | Standard lead wire: 0.5 m
D-A55K Contact: Reed, 2-wire | Load voltage: DC24V/AC100V/AC200V/AC220V | Load current: 5-50/5-25/5-12.5/5-15 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: Not listed | Operating range: Not listed | Standard lead wire: 0.5 m
Auto SwitchesTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics D-A5 Series Auto Switch (Grommet, Reed 2-Wire)

Brand TPC Mechatronics·Auto Switches

Available part numbers (2)

D-A54K, D-A55K

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D-A54KContact: Reed, 2-wire | Load voltage: DC24V / AC100V / AC200V | Load current: 5-50 / 5-25 / 5-12.5 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: 8.5 mm | Operating range: 6-13 mm | Standard lead wire: 0.5 m
D-A55KContact: Reed, 2-wire | Load voltage: DC24V/AC100V/AC200V/AC220V | Load current: 5-50/5-25/5-12.5/5-15 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: Not listed | Operating range: Not listed | Standard lead wire: 0.5 m
