TPC Mechatronics D-C7 Series Auto Switch (Band Mount, Reed / Solid-State 2-Wire)

TPC Mechatronics D-C7 Series Auto Switch (Band Mount, Reed / Solid-State 2-Wire)

The D-C7 series is a band-mount auto switch for detecting piston position on pneumatic cylinders, used with relays and sequence controllers.

Key features

  • Reed 2-wire models (D-C73K, D-C75K) and a solid-state 2-wire model (D-C73D) are available, all with a red LED that lights when ON
  • Rated IP67 (oil resistant), 30G shock resistance, ambient temperature -10 to 60 C
  • Standard lead wire is 0.5 m for reed models and 1 m for the solid-state model; a 3 m lead wire is available with the L suffix at order

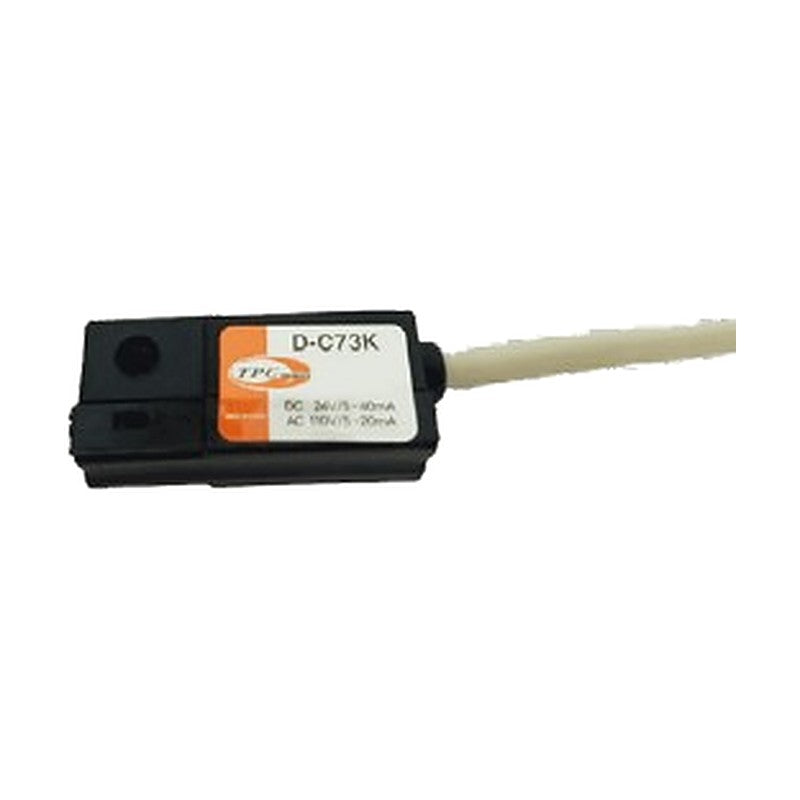

D-C73K Contact: Reed, 2-wire | Load voltage: DC24V / AC100V | Load current: 5-40 / 5-20 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: 9.5 mm | Operating range: 6-12 mm | Standard lead wire: 0.5 m
D-C75K Contact: Reed, 2-wire | Load voltage: DC24V / AC100V / AC220V | Load current: 5-40 / 5-20 / 5-15 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: Not listed | Operating range: Not listed | Standard lead wire: 0.5 m
D-C73D Contact: Solid-state, 2-wire | Load voltage: DC24V | Load current: 5-50 mA | Internal voltage drop: 5 V max | Max sensitivity position: 13 mm | Operating range: 4-7 mm | Standard lead wire: 1 m
Auto SwitchesTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics D-C7 Series Auto Switch (Band Mount, Reed / Solid-State 2-Wire)

Brand TPC Mechatronics·Auto Switches

Available part numbers (3)

D-C73K, D-C75K, D-C73D

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
D-C73KContact: Reed, 2-wire | Load voltage: DC24V / AC100V | Load current: 5-40 / 5-20 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: 9.5 mm | Operating range: 6-12 mm | Standard lead wire: 0.5 m
D-C75KContact: Reed, 2-wire | Load voltage: DC24V / AC100V / AC220V | Load current: 5-40 / 5-20 / 5-15 mA | Internal voltage drop: 2.4 V max | Max sensitivity position: Not listed | Operating range: Not listed | Standard lead wire: 0.5 m
D-C73DContact: Solid-state, 2-wire | Load voltage: DC24V | Load current: 5-50 mA | Internal voltage drop: 5 V max | Max sensitivity position: 13 mm | Operating range: 4-7 mm | Standard lead wire: 1 m
