TPC Mechatronics KHC Hydro Check Speed Controller (Additional Strokes)

TPC Mechatronics KHC Hydro Check Speed Controller (Additional Strokes)

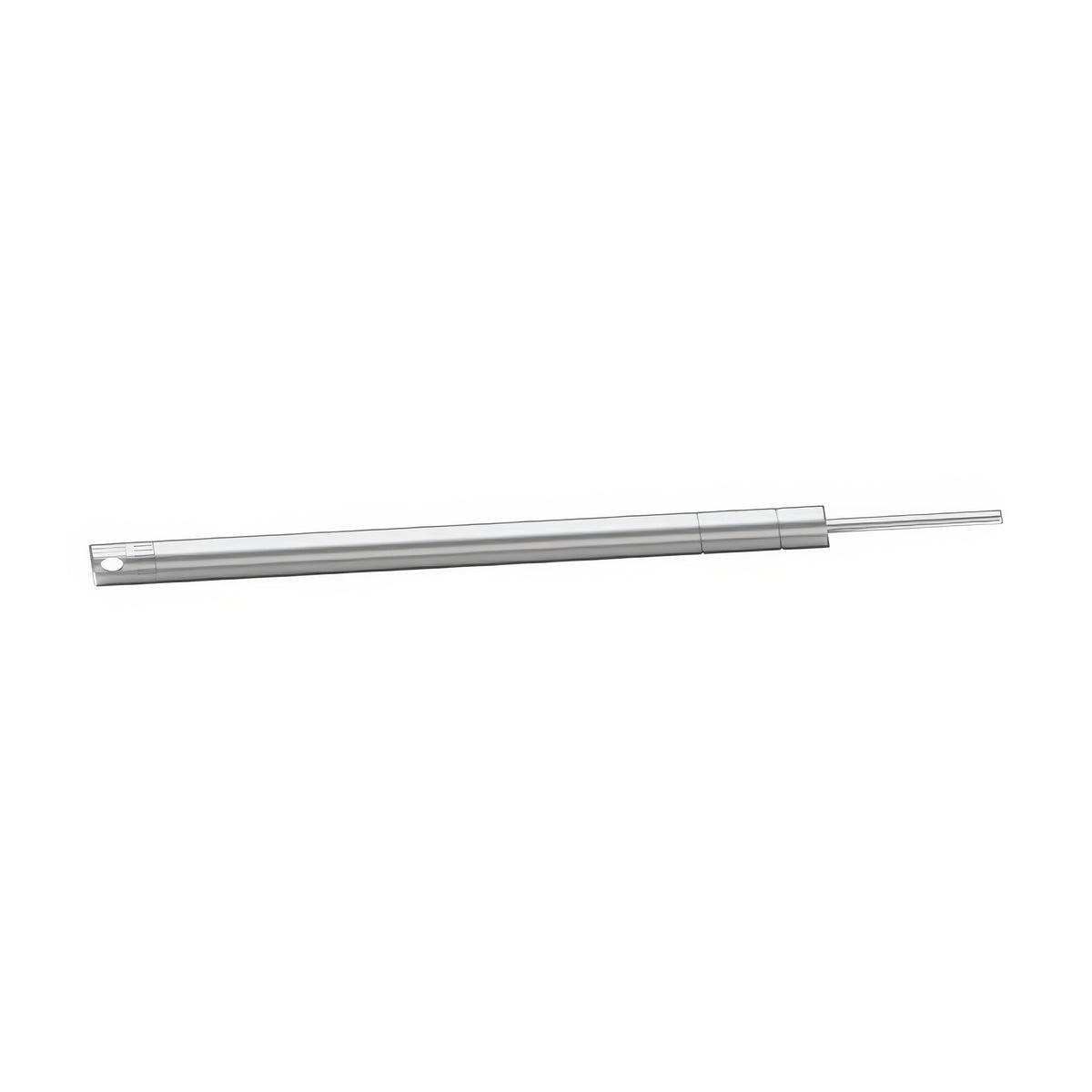

The KHC hydro check is a sealed hydraulic speed controller that gives accurate feed-rate and position control for moving equipment.

Key features

  • The adjustment knob can be finely set over a 300 degree range for precise feed, extending tool life
  • The piston rod is corrosion-resistant and the body is plated against damage from the work environment
  • Internal oil is self-filtering for consistent speed control, and snap rings and mount blocks simplify installation
  • Typical uses are auto-feed drilling, grinding, cutting and safety devices

Specifications

Fluid oil (self-filtering)
Temperature -10 to 80 C (special -30 to 100 C)
Adjustment knob 300 deg fine adjustment
KHC24-30 Body diameter: 24 mm | Stroke: 30 mm | Length A: 202.5 mm | Max load angle from axis: 1 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 450 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-60 Body diameter: 24 mm | Stroke: 60 mm | Length A: 312.5 mm | Max load angle from axis: 0.5 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 635 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-90 Body diameter: 24 mm | Stroke: 90 mm | Length A: 382.5 mm | Max load angle from axis: 0.3 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 745 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-120 Body diameter: 24 mm | Stroke: 120 mm | Length A: 472.5 mm | Max load angle from axis: 0.2 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 885 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC31-60 Body diameter: 31 mm | Stroke: 60 mm | Length A: 340 mm | Max load angle from axis: 0.5 deg | Load limits: 450-3500 N | Feed rate range: 0.2-30 mm/s | Weight: 1245 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC31-100 Body diameter: 31 mm | Stroke: 100 mm | Length A: 476 mm | Max load angle from axis: 0.3 deg | Load limits: 450-3500 N | Feed rate range: 0.2-30 mm/s | Weight: 1655 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC38-100 Body diameter: 38 mm | Stroke: 100 mm | Length A: 454 mm | Max load angle from axis: 0.3 deg | Load limits: 1500-5000 N | Feed rate range: 0.3-30 mm/s | Weight: 3310 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
Hydraulic Speed ControllersTPC Mechatronics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics KHC Hydro Check Speed Controller (Additional Strokes)

Brand TPC Mechatronics·Hydraulic Speed Controllers

Available part numbers (7)

KHC24-30, KHC24-60, KHC24-90, KHC24-120, KHC31-60, KHC31-100, KHC38-100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KHC24-30Body diameter: 24 mm | Stroke: 30 mm | Length A: 202.5 mm | Max load angle from axis: 1 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 450 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-60Body diameter: 24 mm | Stroke: 60 mm | Length A: 312.5 mm | Max load angle from axis: 0.5 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 635 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-90Body diameter: 24 mm | Stroke: 90 mm | Length A: 382.5 mm | Max load angle from axis: 0.3 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 745 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC24-120Body diameter: 24 mm | Stroke: 120 mm | Length A: 472.5 mm | Max load angle from axis: 0.2 deg | Load limits: 100-2500 N | Feed rate range: 0.2-30 mm/s | Weight: 885 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC31-60Body diameter: 31 mm | Stroke: 60 mm | Length A: 340 mm | Max load angle from axis: 0.5 deg | Load limits: 450-3500 N | Feed rate range: 0.2-30 mm/s | Weight: 1245 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC31-100Body diameter: 31 mm | Stroke: 100 mm | Length A: 476 mm | Max load angle from axis: 0.3 deg | Load limits: 450-3500 N | Feed rate range: 0.2-30 mm/s | Weight: 1655 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
KHC38-100Body diameter: 38 mm | Stroke: 100 mm | Length A: 454 mm | Max load angle from axis: 0.3 deg | Load limits: 1500-5000 N | Feed rate range: 0.3-30 mm/s | Weight: 3310 g | Fluid: oil (self-filtering) | Temperature: -10 to 80 C (special -30 to 100 C) | Adjustment knob: 300 deg fine adjustment
