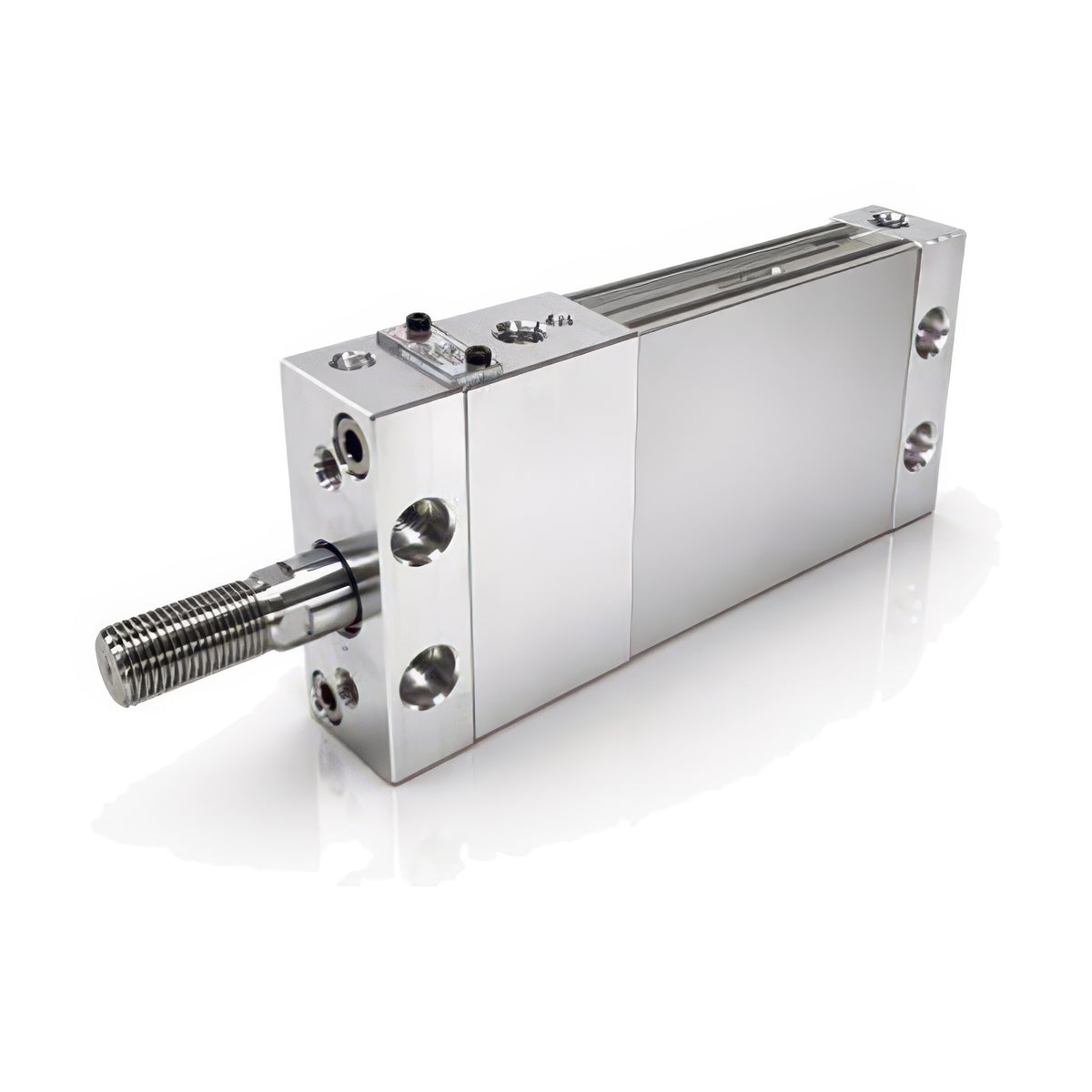

TPC Mechatronics NBP Series Plate Cylinder with Lock (Double Acting, Single Rod, Bore 50 mm)

TPC Mechatronics NBP Series Plate Cylinder with Lock (Double Acting, Single Rod, Bore 50 mm)

The NBP series is a flat plate-type double-acting single-rod pneumatic cylinder with a built-in spring lock unit, in 50 mm bore.

Key features

  • The lock holds the rod in one direction (retract-side or extend-side lock) to prevent dropping or position loss when air is cut off; it is intended as an emergency holding lock, not for intermediate stopping
  • A lock-release bolt allows easy setup during installation
  • The cylinder has a non-rotating rod, built-in speed controllers, felt and coil scraper, and rubber cushions
  • Magnet versions accept strong-magnetic-field and compact auto switches
  • Proof pressure is 1.5 MPa, maximum operating pressure 1.0 MPa, ambient and fluid temperature 5 to 60 C, non-lubricated operation

Specifications

Bore 50 mm
Rod dia 20 mm
Acting Double, single rod
Standard strokes 5-200 mm
Proof pressure 1.5 MPa
Max. pressure 1.0 MPa
Min. pressure 0.2 MPa
Speed 50-500 mm/s
Cushion Rubber
Lock Spring lock, one direction
Lock release pressure 0.2 MPa min.
Lock holding force 1283 N (max. static load)
NBP50 Bore: 50 mm | Rod dia: 20 mm | Acting: Double, single rod | Standard strokes: 5-200 mm | Proof pressure: 1.5 MPa | Max. pressure: 1.0 MPa | Min. pressure: 0.2 MPa | Speed: 50-500 mm/s | Cushion: Rubber | Lock: Spring lock, one direction | Lock release pressure: 0.2 MPa min. | Lock holding force: 1283 N (max. static load) | Allowable rod rotation torque: 1.25 N.m | Rod non-rotation accuracy: +/-0.5 deg | Mass: 1.785 kg (5 mm stroke) to 2.760 kg (200 mm stroke)
