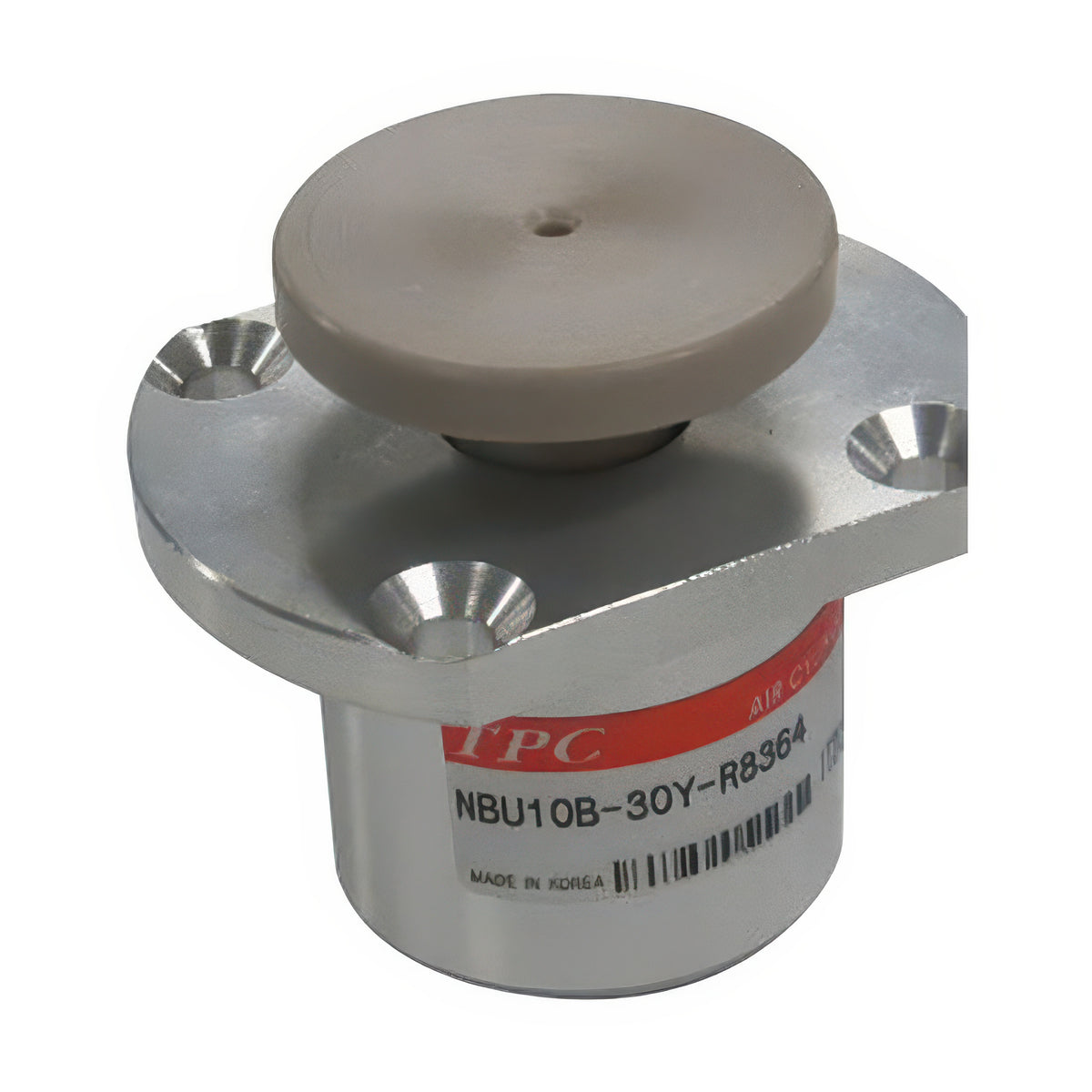

TPC Mechatronics NBU Series Air Blow Unit (Air Flotation Pad for Glass Handling)
TPC Mechatronics NBU Series Air Blow Unit (Air Flotation Pad for Glass Handling)
The NBU series is an air blow unit that floats glass panels and flat workpieces on a thin air film.
Key features
- Air jetting from the nozzle at high speed creates a pressure difference that produces a suction effect on the glass surface for stable flotation
- A flexible pad with 2 degree tilt adapts to the work surface for easy leveling and better lift
- The parallel-cut outer mounting flange allows dense arrangement for floating heavy workpieces
- Operating pressure is 0.1 to 0.5 MPa with flotation height 0.3 to 0.5 mm
Specifications
| Medium | Air |
|---|---|
| Flotation load | 0.3 kgf per unit |
| Operating pressure | 0.1-0.5 MPa |
| Flotation height | 0.3-0.5 mm |
| Pad | Flexible tilting pad (2 deg), dia 30 mm |
| Port | M5x0.8 |
| NBU10 | Nozzle dia: 1 mm | Air consumption: 45 L/min | Medium: Air | Flotation load: 0.3 kgf per unit | Operating pressure: 0.1-0.5 MPa | Flotation height: 0.3-0.5 mm | Pad: Flexible tilting pad (2 deg), dia 30 mm | Port: M5x0.8 | |
| NBU25 | Nozzle dia: 2.5 mm | Air consumption: 33 L/min | Medium: Air | Flotation load: 0.3 kgf per unit | Operating pressure: 0.1-0.5 MPa | Flotation height: 0.3-0.5 mm | Pad: Flexible tilting pad (2 deg), dia 30 mm | Port: M5x0.8 |
Air Flotation UnitsTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics NBU Series Air Blow Unit (Air Flotation Pad for Glass Handling)
Available part numbers (2)
NBU10, NBU25
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Air Flotation Units
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| NBU10 | Nozzle dia: 1 mm | Air consumption: 45 L/min | Medium: Air | Flotation load: 0.3 kgf per unit | Operating pressure: 0.1-0.5 MPa | Flotation height: 0.3-0.5 mm | Pad: Flexible tilting pad (2 deg), dia 30 mm | Port: M5x0.8 | ||
| NBU25 | Nozzle dia: 2.5 mm | Air consumption: 33 L/min | Medium: Air | Flotation load: 0.3 kgf per unit | Operating pressure: 0.1-0.5 MPa | Flotation height: 0.3-0.5 mm | Pad: Flexible tilting pad (2 deg), dia 30 mm | Port: M5x0.8 |
