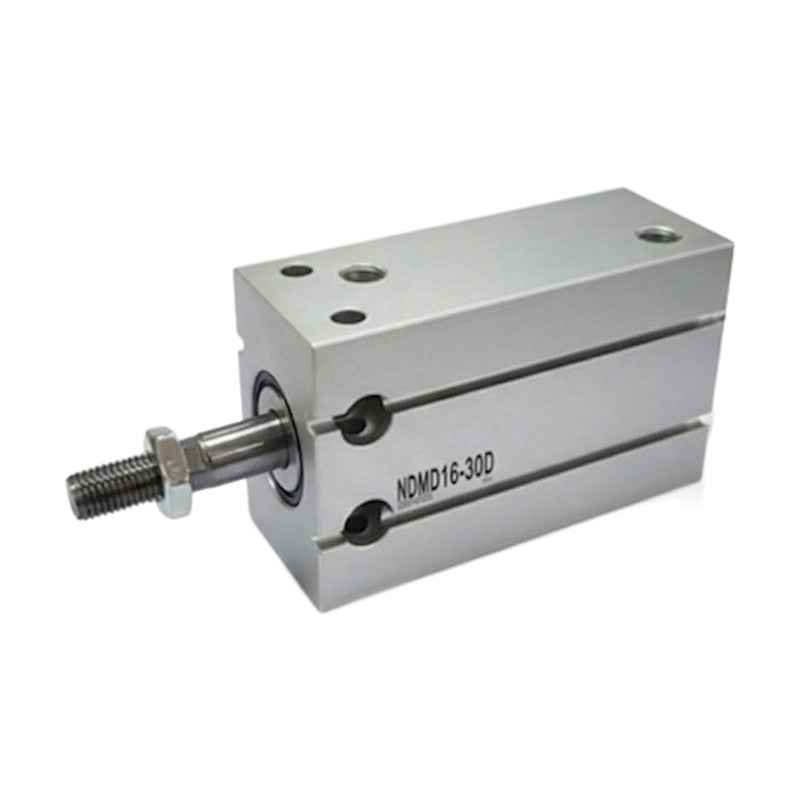

TPC Mechatronics NDM Series Direct Mount Cylinder (Double Acting, Single Rod)
TPC Mechatronics NDM Series Direct Mount Cylinder (Double Acting, Single Rod)
The NDM series is a compact double-acting, single-rod direct mount pneumatic cylinder in bore sizes 10, 16, 20, 25 and 32 mm.
Key features
- The square body can be mounted directly from several faces without separate brackets, giving a space-saving installation with improved mounting accuracy and rigidity
- An extended bush section strengthens resistance to side load
- Versions with a built-in magnet (NDMD) accept W8/W9/W20 auto switches in the body slots
- It operates on air from 0.08-0.10 MPa up to 0.7 MPa with rubber bumpers on both ends, needs no lubrication and is rated for 5 to 60 C
Specifications
| Acting | Double acting, single rod |
|---|---|
| Proof pressure | 1.05 MPa |
| Max. operating pressure | 0.7 MPa |
| Piston speed | 50-500 mm/s |
| Cushion | Rubber bumper both ends |
| Lubrication | Not required |
| Ambient/fluid temperature | 5-60 C |
| NDM10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 38 g | |
| NDM16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 52 g | |
| NDM20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 97 g | |
| NDM25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 178 g | |
| NDM32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 264 g | |
| NDMD10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 48 g | |
| NDMD16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 83 g | |
| NDMD20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 130 g | |
| NDMD25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 247 g | |
| NDMD32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 354 g |
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics NDM Series Direct Mount Cylinder (Double Acting, Single Rod)
Available part numbers (10)
NDM10, NDM16, NDM20, NDM25, NDM32, NDMD10, NDMD16, NDMD20, NDMD25, NDMD32
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Pneumatic Cylinders
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| NDM10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 38 g | ||
| NDM16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 52 g | ||
| NDM20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 97 g | ||
| NDM25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 178 g | ||
| NDM32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 264 g | ||
| NDMD10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 48 g | ||
| NDMD16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 83 g | ||
| NDMD20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 130 g | ||
| NDMD25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 247 g | ||
| NDMD32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 354 g |
