TPC Mechatronics NDMK Series Direct Mount Cylinder (Non-Rotating, Double Acting)

TPC Mechatronics NDMK Series Direct Mount Cylinder (Non-Rotating, Double Acting)

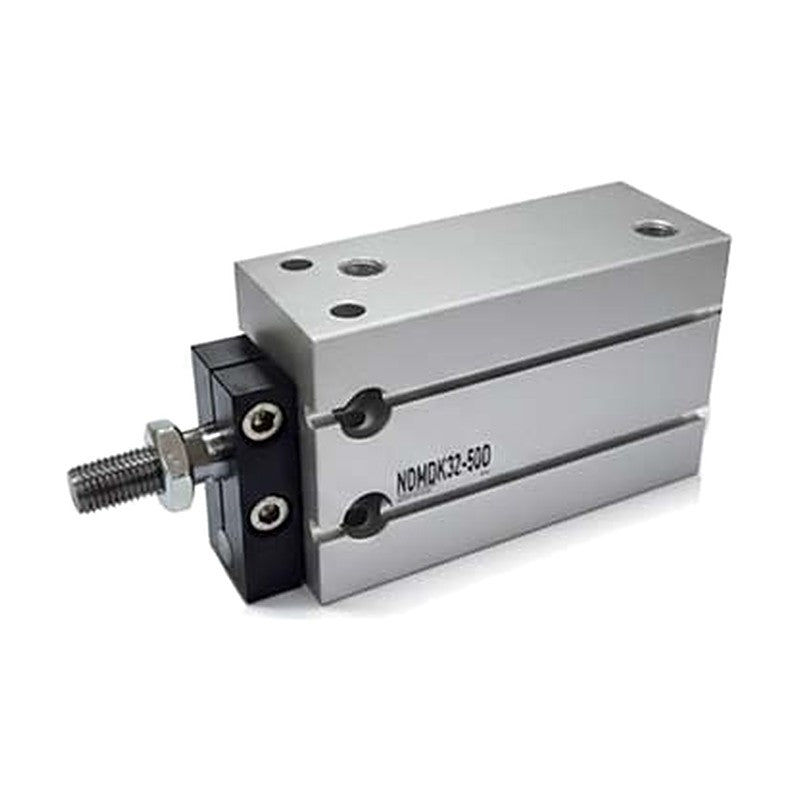

The NDMK series is a double-acting direct mount pneumatic cylinder with a rod non-rotating plate, offered in bore sizes 10, 16, 20, 25 and 32 mm.

Key features

  • A guide plate on the rod side keeps rotation accuracy within +/-0.8 deg (10 and 16 mm) or +/-0.5 deg (20 to 32 mm)
  • The square body mounts directly from several faces for space-saving installation
  • Magnet versions (NDMDK) accept W8/W9/W20 auto switches
  • It operates from 0.08-0.10 MPa up to 0.7 MPa with rubber bumpers on both ends and no lubrication required, at 5 to 60 C

Specifications

Acting Double acting, single rod, non-rotating
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Piston speed 50-500 mm/s
Cushion Rubber bumper both ends
Lubrication Not required
Ambient/fluid temperature 5-60 C
TPC Mechatronics NDMK Series Direct Mount Cylinder (Non-Rotating, Double Acting) reference 2
NDMK10 Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 47 g
NDMK16 Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 64 g
NDMK20 Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 117 g
NDMK25 Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 217 g
NDMK32 Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod, non-rotating | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 338 g
NDMDK10 Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 57 g
NDMDK16 Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 95 g
NDMDK20 Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 150 g
NDMDK25 Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 286 g
NDMDK32 Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod, non-rotating | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 428 g
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NDMK Series Direct Mount Cylinder (Non-Rotating, Double Acting)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (10)

NDMK10, NDMK16, NDMK20, NDMK25, NDMK32, NDMDK10, NDMDK16, NDMDK20, NDMDK25, NDMDK32

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics NDMK Series Direct Mount Cylinder (Non-Rotating, Double Acting) reference 2
0 selected
RFQ List (0)
Product codeSpec
NDMK10Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 47 g
NDMK16Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 64 g
NDMK20Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 117 g
NDMK25Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 217 g
NDMK32Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod, non-rotating | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 338 g
NDMDK10Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 39.3 N extend / 33 N retract | Mass (5 mm stroke): 57 g
NDMDK16Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-30 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.8 deg | Theoretical force at 0.5 MPa: 100.5 N extend / 86.7 N retract | Mass (5 mm stroke): 95 g
NDMDK20Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 157.1 N extend / 132 N retract | Mass (5 mm stroke): 150 g
NDMDK25Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, single rod, non-rotating | Port size: M5x0.8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 245.4 N extend / 206.2 N retract | Mass (5 mm stroke): 286 g
NDMDK32Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, single rod, non-rotating | Port size: 1/8 | Standard strokes: 5-50 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Non-rotating accuracy: +/-0.5 deg | Theoretical force at 0.5 MPa: 402.1 N extend / 345.7 N retract | Mass (5 mm stroke): 428 g

Need a different model, or a part not listed here? Send us your parts list →
