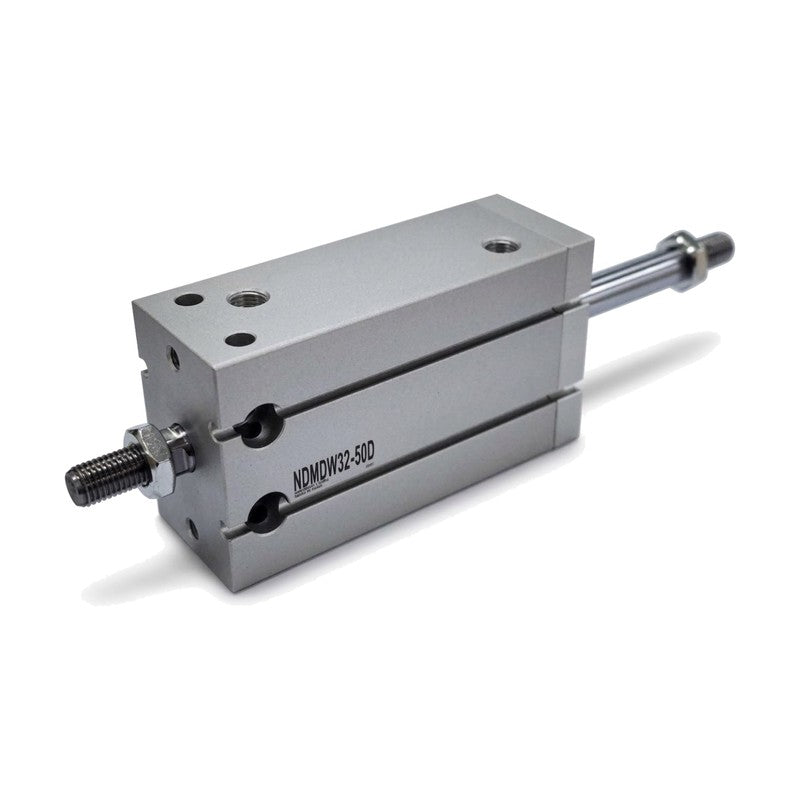

TPC Mechatronics NDMW Series Direct Mount Cylinder (Double Acting, Double Rod)
TPC Mechatronics NDMW Series Direct Mount Cylinder (Double Acting, Double Rod)
The NDMW series is a double-acting, double-rod (through-rod) direct mount pneumatic cylinder in bore sizes 10, 16, 20, 25 and 32 mm.
Key features
- The rod extends from both ends of the square body, giving equal force in both directions
- The body can be fixed by through-bolts from the top, by side-face through holes, or into tapped holes on the end faces
- Magnet versions (NDMDW) accept W8/W9/W20 auto switches
- It operates from 0.08-0.10 MPa up to 0.7 MPa with rubber bumpers on both ends and no lubrication required, at 5 to 60 C
Specifications
| Acting | Double acting, double rod |
|---|---|
| Proof pressure | 1.05 MPa |
| Max. operating pressure | 0.7 MPa |
| Piston speed | 50-500 mm/s |
| Cushion | Rubber bumper both ends |
| Lubrication | Not required |
| Ambient/fluid temperature | 5-60 C |
| NDMW10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 33 N | Mass (5 mm stroke): 47 g | |
| NDMW16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 86.7 N | Mass (5 mm stroke): 77 g | |
| NDMW20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 132 N | Mass (5 mm stroke): 135 g | |
| NDMW25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 206.2 N | Mass (5 mm stroke): 243 g | |
| NDMW32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, double rod | Port size: 1/8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 345.7 N | Mass (5 mm stroke): 368 g | |
| NDMDW10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 33 N | Mass (5 mm stroke): 57 g | |
| NDMDW16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 86.7 N | Mass (5 mm stroke): 108 g | |
| NDMDW20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 132 N | Mass (5 mm stroke): 168 g | |
| NDMDW25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 206.2 N | Mass (5 mm stroke): 312 g | |
| NDMDW32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, double rod | Port size: 1/8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 345.7 N | Mass (5 mm stroke): 458 g |
Pneumatic CylindersTPC Mechatronics
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics NDMW Series Direct Mount Cylinder (Double Acting, Double Rod)
Available part numbers (10)
NDMW10, NDMW16, NDMW20, NDMW25, NDMW32, NDMDW10, NDMDW16, NDMDW20, NDMDW25, NDMDW32
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Pneumatic Cylinders
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| NDMW10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 33 N | Mass (5 mm stroke): 47 g | ||
| NDMW16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: None | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 86.7 N | Mass (5 mm stroke): 77 g | ||
| NDMW20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 132 N | Mass (5 mm stroke): 135 g | ||
| NDMW25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 206.2 N | Mass (5 mm stroke): 243 g | ||
| NDMW32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, double rod | Port size: 1/8 | Standard strokes: 5-100 mm | Magnet: None | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 345.7 N | Mass (5 mm stroke): 368 g | ||
| NDMDW10 | Bore: 10 mm | Rod dia.: 4 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 33 N | Mass (5 mm stroke): 57 g | ||
| NDMDW16 | Bore: 16 mm | Rod dia.: 6 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-60 mm | Magnet: Built-in | Min. operating pressure: 0.10 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 86.7 N | Mass (5 mm stroke): 108 g | ||
| NDMDW20 | Bore: 20 mm | Rod dia.: 8 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 132 N | Mass (5 mm stroke): 168 g | ||
| NDMDW25 | Bore: 25 mm | Rod dia.: 10 mm | Acting: Double acting, double rod | Port size: M5x0.8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 206.2 N | Mass (5 mm stroke): 312 g | ||
| NDMDW32 | Bore: 32 mm | Rod dia.: 12 mm | Acting: Double acting, double rod | Port size: 1/8 | Standard strokes: 5-100 mm | Magnet: Built-in | Min. operating pressure: 0.08 MPa | Proof pressure: 1.05 MPa | Max. operating pressure: 0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber bumper both ends | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Theoretical force at 0.5 MPa: 345.7 N | Mass (5 mm stroke): 458 g |
