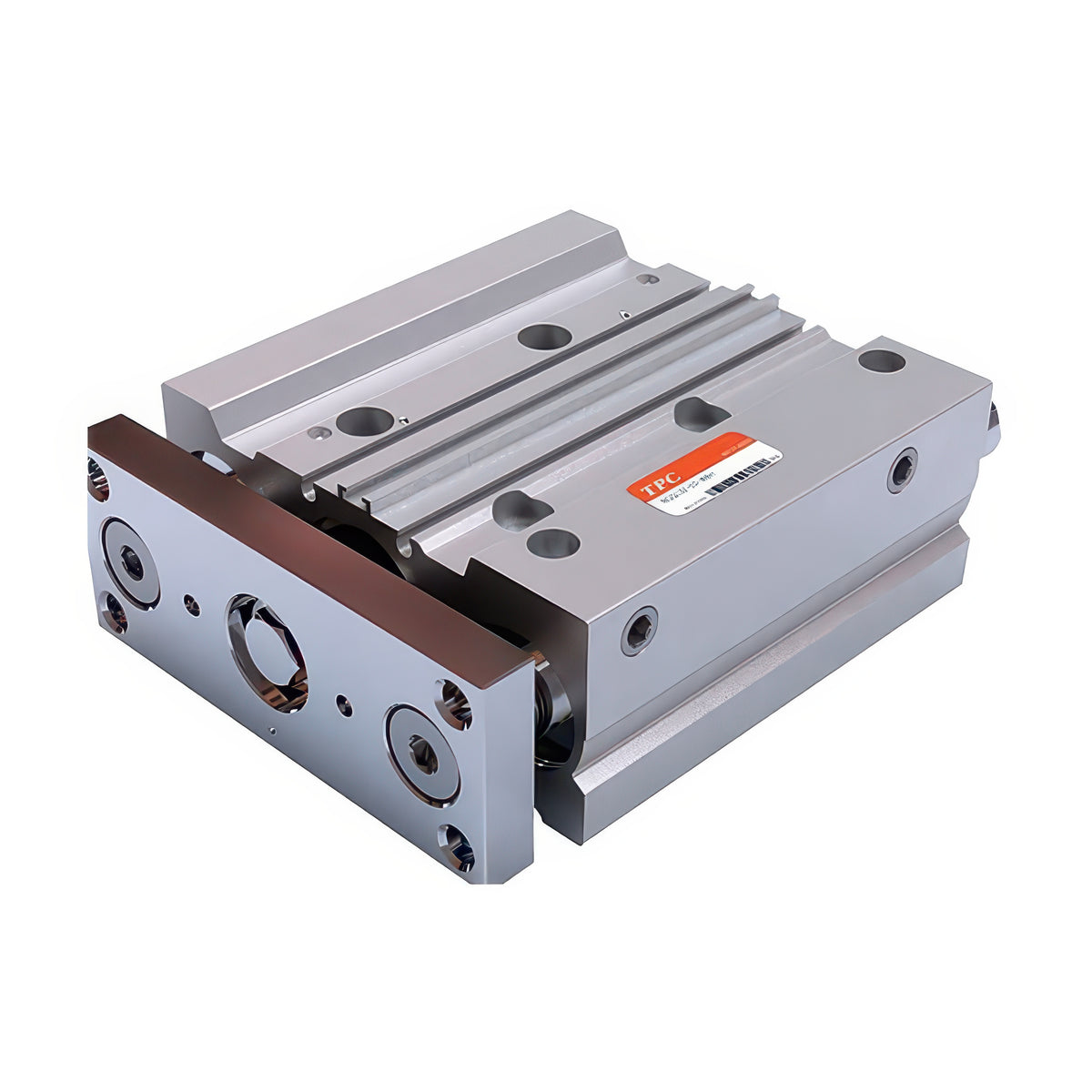

TPC Mechatronics NGQ Air Cushion Guided Compact Cylinder (NGQM / NGQL ...A), Bore 20-63 mm

TPC Mechatronics NGQ Air Cushion Guided Compact Cylinder (NGQM / NGQL ...A), Bore 20-63 mm

The NGQ Air Cushion series is a guided compact cylinder with adjustable air cushions at both stroke ends.

Key features

  • Fine-pitch threads on the cushion valves widen the cushion adjustment range, and an optimized flow path minimizes bouncing at the stroke ends
  • A retention device prevents the cushion valve from falling out
  • Two guide bearing types are available: NGQM slide bearing and NGQL ball bearing
  • Side ports are standard and the cylinder accepts compact W8/W9, D-A73K, W20H and W2P auto switches

Specifications

Cushion Air cushion both ends (A)
Acting Double
Operating pressure 0.1-1.0 MPa
Proof pressure 1.5 MPa
Piston speed 50-500 mm/s
Piping Top and side
Lubrication Not required
NGQM20-25A Bore: 20 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 0.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-50A Bore: 20 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-75A Bore: 20 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-100A Bore: 20 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-125A Bore: 20 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-150A Bore: 20 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.0 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-175A Bore: 20 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-200A Bore: 20 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM20-250A Bore: 20 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-25A Bore: 25 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 1.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-50A Bore: 25 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 1.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-75A Bore: 25 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.0 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-100A Bore: 25 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-125A Bore: 25 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-150A Bore: 25 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-175A Bore: 25 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 3.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-200A Bore: 25 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 3.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM25-250A Bore: 25 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 3.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-25A Bore: 32 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-50A Bore: 32 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-75A Bore: 32 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-100A Bore: 32 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-125A Bore: 32 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-150A Bore: 32 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-175A Bore: 32 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-200A Bore: 32 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM32-250A Bore: 32 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 5.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-25A Bore: 40 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-50A Bore: 40 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-75A Bore: 40 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-100A Bore: 40 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-125A Bore: 40 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-150A Bore: 40 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-175A Bore: 40 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 5.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-200A Bore: 40 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 5.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM40-250A Bore: 40 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 6.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-25A Bore: 50 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 3.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-50A Bore: 50 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 4.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-75A Bore: 50 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-100A Bore: 50 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-125A Bore: 50 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 6.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-150A Bore: 50 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-175A Bore: 50 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-200A Bore: 50 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 8.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM50-250A Bore: 50 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 9.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-25A Bore: 63 mm | Stroke: 25 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 4.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-50A Bore: 63 mm | Stroke: 50 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-75A Bore: 63 mm | Stroke: 75 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 6.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-100A Bore: 63 mm | Stroke: 100 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 6.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-125A Bore: 63 mm | Stroke: 125 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-150A Bore: 63 mm | Stroke: 150 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 8.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-175A Bore: 63 mm | Stroke: 175 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 9.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-200A Bore: 63 mm | Stroke: 200 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 9.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQM63-250A Bore: 63 mm | Stroke: 250 mm | Guide bearing: Slide bearing (M) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 10.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-25A Bore: 20 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 0.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-50A Bore: 20 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-75A Bore: 20 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-100A Bore: 20 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-125A Bore: 20 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-150A Bore: 20 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 1.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-175A Bore: 20 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-200A Bore: 20 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL20-250A Bore: 20 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 10 mm | Weight: 2.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-25A Bore: 25 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 1.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-50A Bore: 25 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 1.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-75A Bore: 25 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 1.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-100A Bore: 25 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-125A Bore: 25 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-150A Bore: 25 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-175A Bore: 25 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 2.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-200A Bore: 25 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 3.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL25-250A Bore: 25 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 12 mm | Weight: 3.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-25A Bore: 32 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 1.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-50A Bore: 32 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-75A Bore: 32 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-100A Bore: 32 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-125A Bore: 32 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-150A Bore: 32 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-175A Bore: 32 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-200A Bore: 32 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL32-250A Bore: 32 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-25A Bore: 40 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-50A Bore: 40 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 2.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-75A Bore: 40 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.0 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-100A Bore: 40 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-125A Bore: 40 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 3.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-150A Bore: 40 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.3 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-175A Bore: 40 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 4.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-200A Bore: 40 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 5.0 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL40-250A Bore: 40 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 16 mm | Weight: 5.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-25A Bore: 50 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 3.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-50A Bore: 50 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 4.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-75A Bore: 50 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 4.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-100A Bore: 50 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.4 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-125A Bore: 50 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.9 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-150A Bore: 50 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 6.6 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-175A Bore: 50 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-200A Bore: 50 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL50-250A Bore: 50 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 8.7 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-25A Bore: 63 mm | Stroke: 25 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 4.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-50A Bore: 63 mm | Stroke: 50 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-75A Bore: 63 mm | Stroke: 75 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 5.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-100A Bore: 63 mm | Stroke: 100 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 6.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-125A Bore: 63 mm | Stroke: 125 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-150A Bore: 63 mm | Stroke: 150 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 7.8 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-175A Bore: 63 mm | Stroke: 175 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 8.5 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-200A Bore: 63 mm | Stroke: 200 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 9.1 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
NGQL63-250A Bore: 63 mm | Stroke: 250 mm | Guide bearing: Ball bearing (L) | Cushion: Air cushion both ends (A) | Rod diameter: 20 mm | Weight: 10.2 kg | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Piston speed: 50-500 mm/s | Piping: Top and side | Lubrication: Not required
