TPC Mechatronics NGQ Mini Series Miniature Guided Compact Cylinder (Bore 6, 10 mm)

TPC Mechatronics NGQ Mini Series Miniature Guided Compact Cylinder (Bore 6, 10 mm)

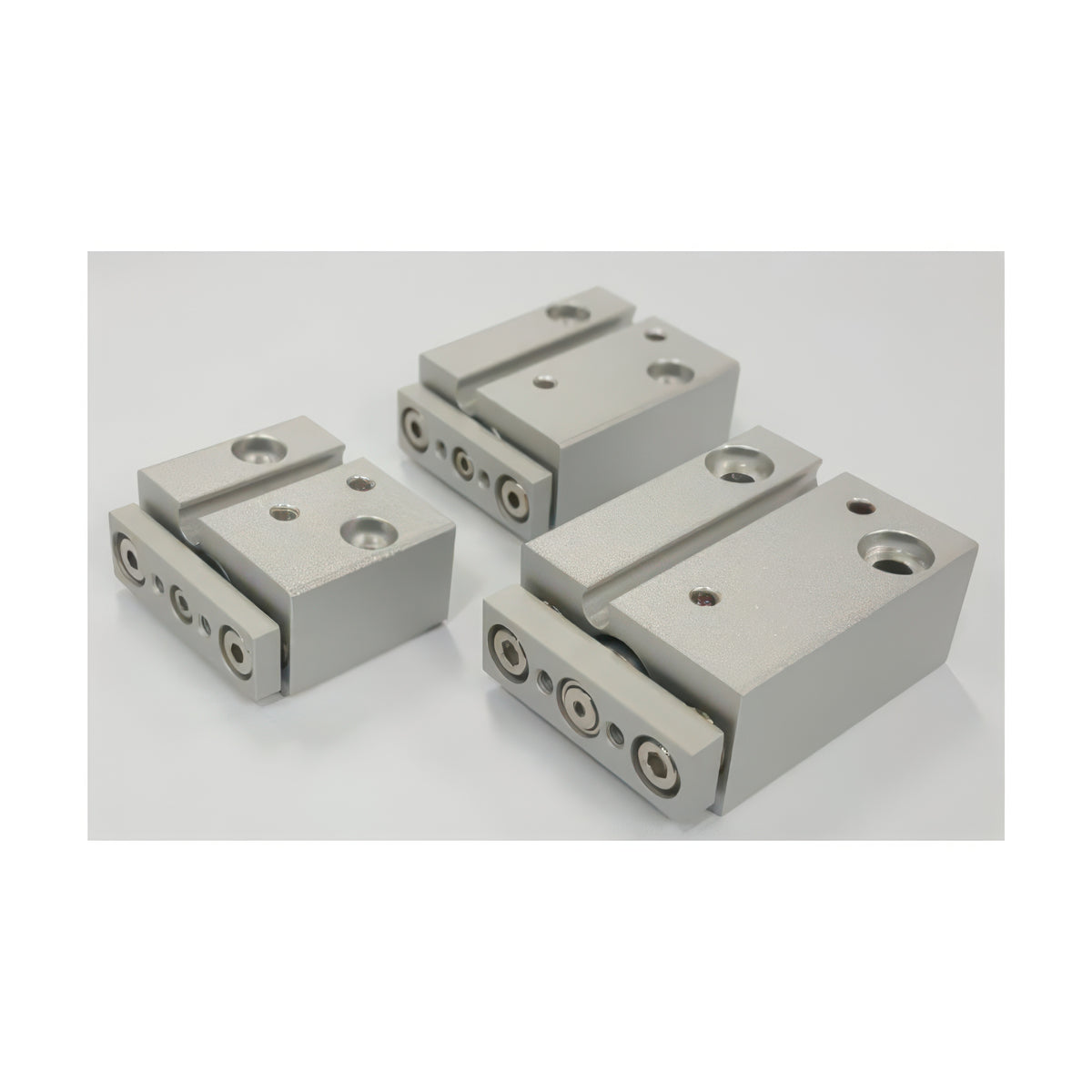

The NGQ Mini series is a miniature double-acting guide rod cylinder in 6 and 10 mm bores with slide bearing guide rods.

Key features

  • It resists lateral loads and prevents rotation with high accuracy in a compact, simple body without unnecessary features
  • The cylinder can be installed horizontally or vertically, and two W10V solid-state auto switches can be mounted even on 5 mm stroke units
  • Operating pressure is 0.15 to 0.7 MPa, ambient and fluid temperature 5 to 60 C, piston speed 50 to 500 mm/s, with rubber cushions and non-lube operation
  • Ports are M3x0.5

Specifications

Guide bearing Slide bearing
Port size M3x0.5
Acting Double
Operating pressure 0.15-0.7 MPa
Proof pressure 1.05 MPa
Piston speed 50-500 mm/s
Cushion Rubber
NGQM6 Bore: 6 mm | Rod diameter: 3 mm | Guide bearing: Slide bearing | Port size: M3x0.5 | Standard stroke: 5, 10, 15 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mass: 28/35/42 g (5/10/15 mm stroke)
NGQM10 Bore: 10 mm | Rod diameter: 5 mm | Guide bearing: Slide bearing | Port size: M3x0.5 | Standard stroke: 5, 10, 15, 20 mm | Acting: Double | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Mass: 42/50/58/66 g (5/10/15/20 mm stroke)
