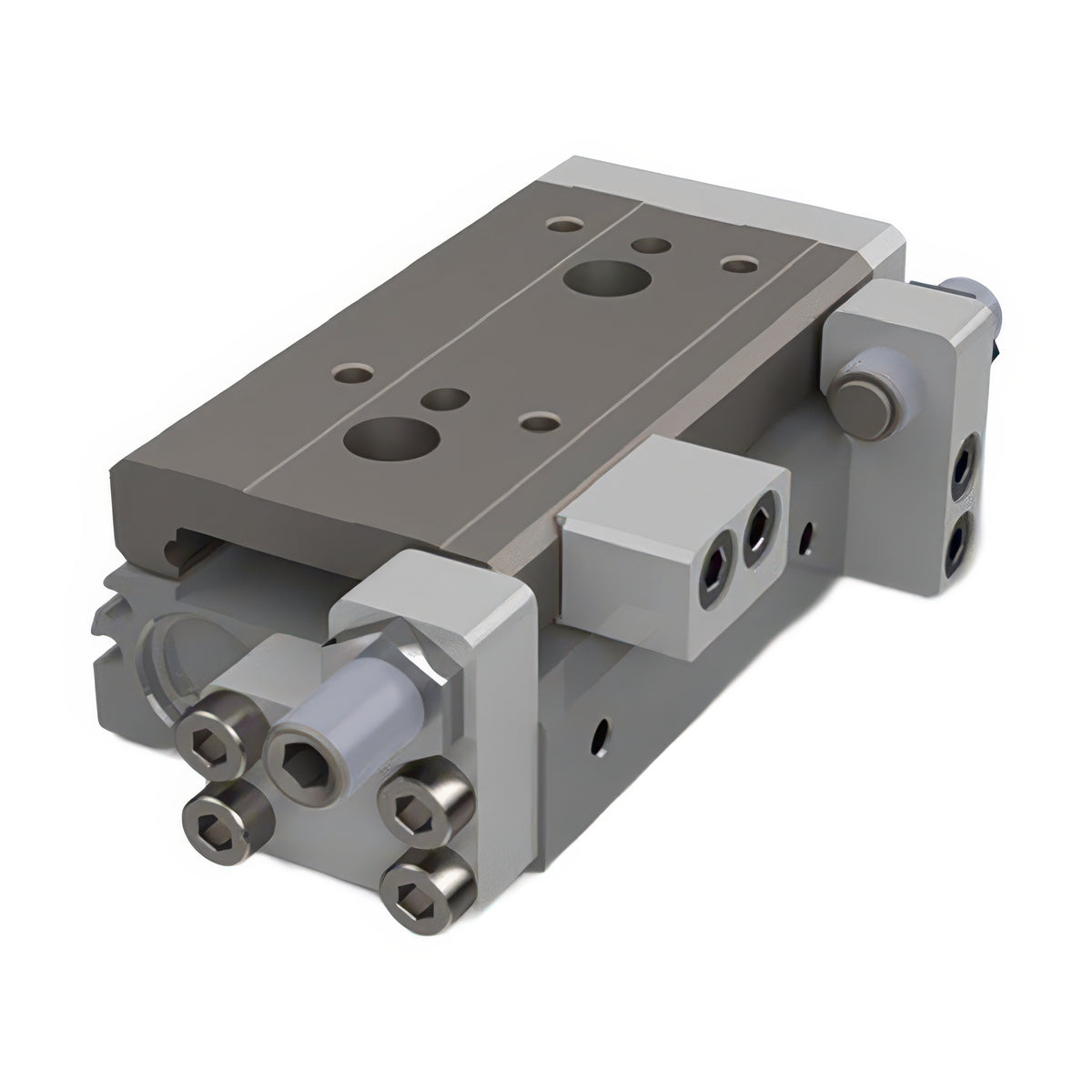

TPC Mechatronics NLGD Series Table Cylinder Stroke Adjuster Units

Stroke adjuster units for NLGD series high-precision table cylinders, available for bore sizes 6 to 25 mm.

Key features

Damper stopper units (RF extend end, RB retract end) are the standard adjustment unit, while metal stopper units (MF, MB) improve stopping accuracy for low-speed operation without cushioning
Adjustment range is 5 mm standard, or 15 or 25 mm (6 mm bore: 5 or 15 mm)
Shock absorber units (SF, SB) give smooth deceleration and are available for bore sizes 8 to 25 mm
The same units are used on the CR/CV clean-room NLGD versions

NLGD06-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD06 \| Adjustment range: 5 mm
NLGD06-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD06 \| Adjustment range: 15 mm
NLGD08-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 5 mm
NLGD08-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 15 mm
NLGD08-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 25 mm
NLGD12-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 5 mm
NLGD12-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 15 mm
NLGD12-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 25 mm
NLGD16-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 5 mm
NLGD16-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 15 mm
NLGD16-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 25 mm
NLGD20-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 5 mm
NLGD20-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 15 mm
NLGD20-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 25 mm
NLGD25-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 5 mm
NLGD25-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 15 mm
NLGD25-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 25 mm
NLGD06-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD06 \| Adjustment range: 5 mm
NLGD06-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD06 \| Adjustment range: 15 mm
NLGD08-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 5 mm
NLGD08-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 15 mm
NLGD08-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD08 \| Adjustment range: 25 mm
NLGD12-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 5 mm
NLGD12-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 15 mm
NLGD12-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD12 \| Adjustment range: 25 mm
NLGD16-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 5 mm
NLGD16-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 15 mm
NLGD16-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD16 \| Adjustment range: 25 mm
NLGD20-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 5 mm
NLGD20-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 15 mm
NLGD20-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD20 \| Adjustment range: 25 mm
NLGD25-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 5 mm
NLGD25-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 15 mm
NLGD25-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLGD25 \| Adjustment range: 25 mm
NLGD06-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD06 \| Adjustment range: 5 mm
NLGD06-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD06 \| Adjustment range: 15 mm
NLGD08-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 5 mm
NLGD08-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 15 mm
NLGD08-MF25		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 25 mm
NLGD12-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 5 mm
NLGD12-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 15 mm
NLGD12-MF25		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 25 mm
NLGD16-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 5 mm
NLGD16-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 15 mm
NLGD16-MF25		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 25 mm
NLGD20-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 5 mm
NLGD20-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 15 mm
NLGD20-MF25		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 25 mm
NLGD25-MF		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 5 mm
NLGD25-MF15		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 15 mm
NLGD25-MF25		Type: Extend-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 25 mm
NLGD06-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD06 \| Adjustment range: 5 mm
NLGD06-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD06 \| Adjustment range: 15 mm
NLGD08-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 5 mm
NLGD08-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 15 mm
NLGD08-MB25		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD08 \| Adjustment range: 25 mm
NLGD12-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 5 mm
NLGD12-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 15 mm
NLGD12-MB25		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD12 \| Adjustment range: 25 mm
NLGD16-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 5 mm
NLGD16-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 15 mm
NLGD16-MB25		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD16 \| Adjustment range: 25 mm
NLGD20-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 5 mm
NLGD20-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 15 mm
NLGD20-MB25		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD20 \| Adjustment range: 25 mm
NLGD25-MB		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 5 mm
NLGD25-MB15		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 15 mm
NLGD25-MB25		Type: Retract-end stroke adjuster, metal stopper \| Applicable cylinder: NLGD25 \| Adjustment range: 25 mm
NLGD08-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLGD08
NLGD12-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLGD12
NLGD16-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLGD16
NLGD20-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLGD20
NLGD25-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLGD25
NLGD08-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLGD08
NLGD12-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLGD12
NLGD16-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLGD16
NLGD20-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLGD20
NLGD25-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLGD25

Cylinder AccessoriesTPC Mechatronics

78 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NLGD Series Table Cylinder Stroke Adjuster Units

Brand TPC Mechatronics·Cylinder Accessories

Available part numbers (78)

NLGD06-RF, NLGD06-RF15, NLGD08-RF, NLGD08-RF15, NLGD08-RF25, NLGD12-RF, NLGD12-RF15, NLGD12-RF25, NLGD16-RF, NLGD16-RF15 + 68 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
