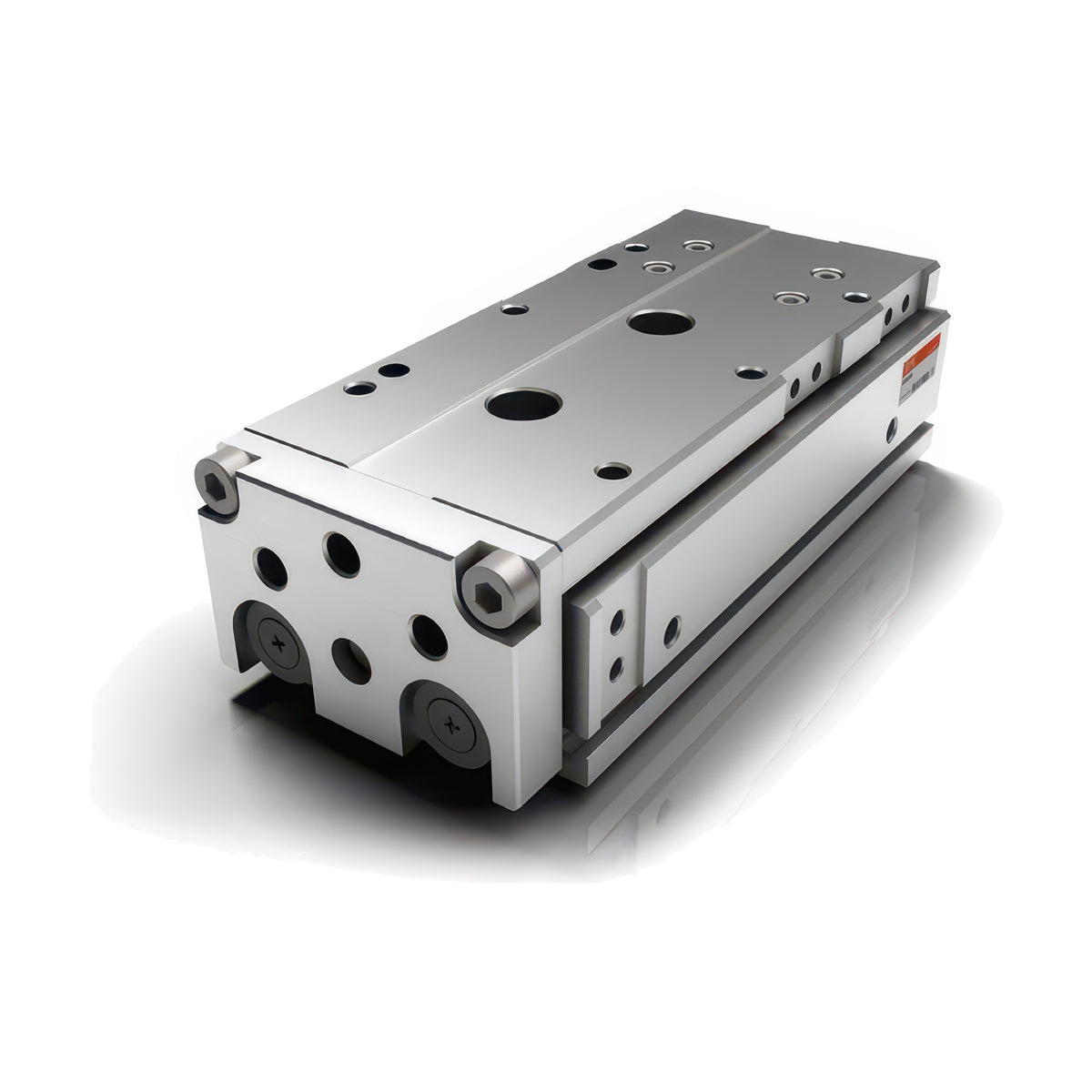

TPC Mechatronics NLPD Series Precision Table Cylinder (Dual Rod, LM Guide)

TPC Mechatronics NLPD Series Precision Table Cylinder (Dual Rod, LM Guide)

The NLPD series is a precision double-acting dual-rod table cylinder with an LM guide, offered in bore sizes 6, 8, 12, 16, 20, 25 and 32 mm.

Key features

  • The dual-rod design delivers about twice the output of a single-rod cylinder, and heli-coil inserts reinforce the work mounting threads
  • The cylinder can be mounted horizontally using body taps or through holes, or vertically, and auto switch grooves and option mounting positions are selectable left or right
  • Operating pressure is 0.15 to 0.7 MPa (proof 1.05 MPa), temperature -10 to 60 C and speed 50 to 500 mm/s (50 to 200 mm/s with metal stopper), without lubrication
  • Options include rubber damper, shock absorber and metal stopper stroke adjusters and a secondary-battery compatible version

Specifications

Acting Double
Pressure range 0.15-0.7 MPa
Speed 50-500 mm/s
NLPD06 Bore: 6 mm | Rod diameter: 3 mm | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Max load: 0.6 kg | Mass: 82-156 g
NLPD08 Bore: 8 mm | Rod diameter: 4 mm | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Max load: 1 kg | Mass: 145-410 g
NLPD12 Bore: 12 mm | Rod diameter: 6 mm | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Max load: 2 kg | Mass: 320-820 g
NLPD16 Bore: 16 mm | Rod diameter: 8 mm | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Max load: 4 kg | Mass: 650-1580 g
NLPD20 Bore: 20 mm | Rod diameter: 10 mm | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Max load: 6 kg | Mass: 885-2460 g
NLPD25 Bore: 25 mm | Rod diameter: 12 mm | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Max load: 9 kg | Mass: 1480-3785 g
NLPD32 Bore: 32 mm | Rod diameter: 16 mm | Stroke range: 30, 75, 100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 804 N | Max load: 11 kg | Mass: 2500-4340 g
Pneumatic CylindersTPC Mechatronics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NLPD Series Precision Table Cylinder (Dual Rod, LM Guide)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (7)

NLPD06, NLPD08, NLPD12, NLPD16, NLPD20, NLPD25, NLPD32

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NLPD06Bore: 6 mm | Rod diameter: 3 mm | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Max load: 0.6 kg | Mass: 82-156 g
NLPD08Bore: 8 mm | Rod diameter: 4 mm | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Max load: 1 kg | Mass: 145-410 g
NLPD12Bore: 12 mm | Rod diameter: 6 mm | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Max load: 2 kg | Mass: 320-820 g
NLPD16Bore: 16 mm | Rod diameter: 8 mm | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Max load: 4 kg | Mass: 650-1580 g
NLPD20Bore: 20 mm | Rod diameter: 10 mm | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Max load: 6 kg | Mass: 885-2460 g
NLPD25Bore: 25 mm | Rod diameter: 12 mm | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Max load: 9 kg | Mass: 1480-3785 g
NLPD32Bore: 32 mm | Rod diameter: 16 mm | Stroke range: 30, 75, 100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 804 N | Max load: 11 kg | Mass: 2500-4340 g
