TPC Mechatronics NPC Pin Clamp Cylinder

TPC Mechatronics NPC Pin Clamp Cylinder

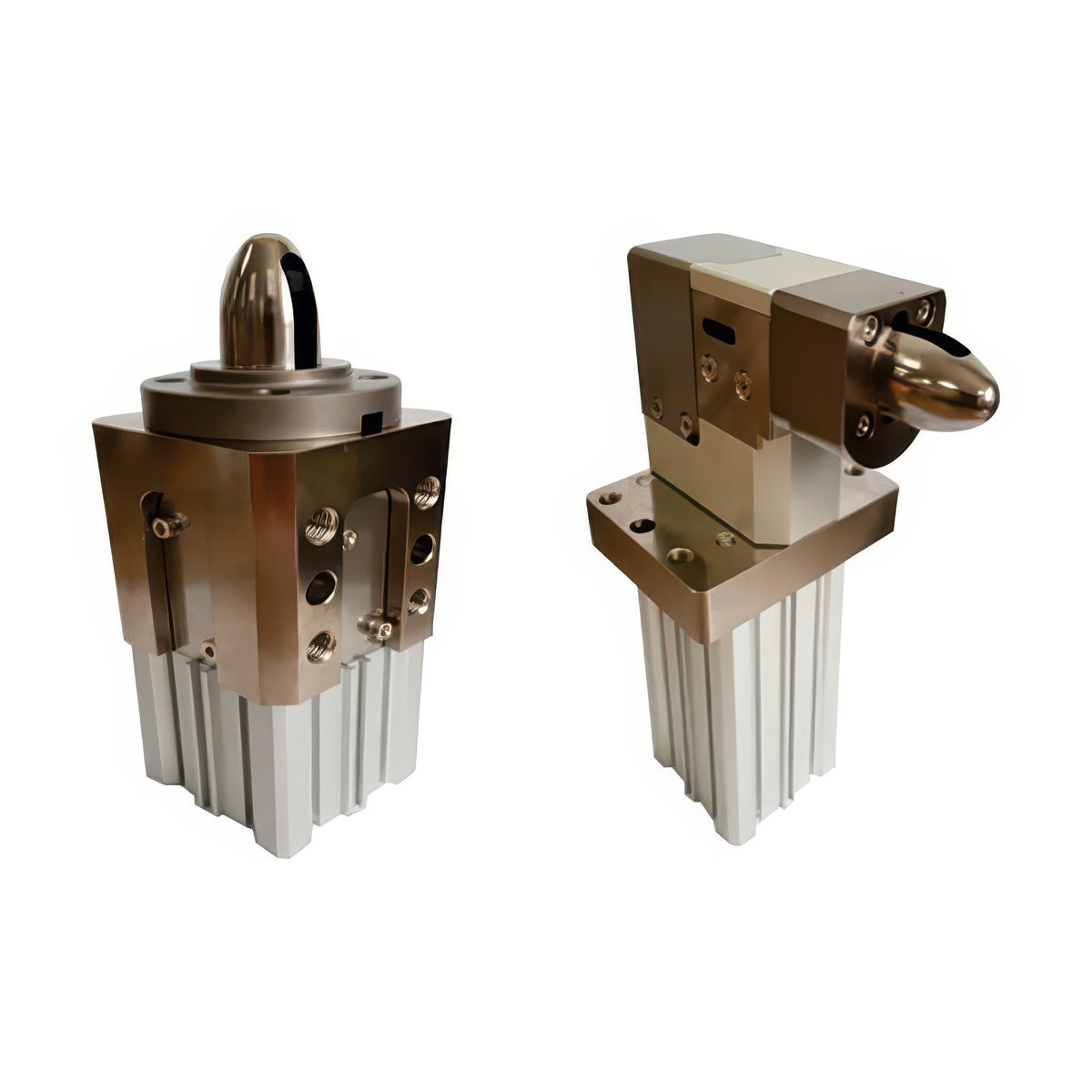

The NPC pin clamp cylinder locates a workpiece with a guide pin and clamps it in the same motion, in bores 50 and 63 mm.

Key features

  • Vertical (V) and horizontal (H) pin directions are offered, with double-acting and single-acting versions
  • The clamp position height can be selected from standard reference heights
  • An anti-spatter scraper option protects against foreign matter
  • Auto switches, including strong-field types, can be fitted

Specifications

Max pressure 1.0 MPa
Proof pressure 1.5 MPa
Mounting 4 x M10x1.5 taps
Cushion none
Options C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCV50 Pin direction: V vertical | Bore: 50 mm | Acting: D double (cylinder stroke 18 mm, clamp stroke 11 mm) | Reference heights: 60, 80, 85 mm | Guide pin: 229 (22.9 mm) or 249 (24.9 mm) | Clamp force: 825 N at 0.5 MPa | Min pressure: 0.10 MPa | Speed: 50-500 mm/s | Magnet: standard magnet for auto switches | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCV63 Pin direction: V vertical | Bore: 63 mm | Acting: D double (cylinder stroke 18 mm, clamp stroke 11 mm, heights 60, 75, 85 mm, clamp force 1400 N at 0.5 MPa) or S single (cylinder stroke 11 mm, clamp stroke 7 mm, heights 25, 35, 60, 75, 85 mm, clamp force 910 N) | Guide pin: 229 or 249 | Speed: 50-500 mm/s (double) / 50-300 mm/s (single) | Magnet: standard magnet for auto switches | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCH63 Pin direction: H horizontal | Bore: 63 mm | Acting: S single (cylinder stroke 11 mm, clamp stroke 7 mm) | Reference heights: 60, 75, 85 mm | Guide pin: 229 (22.9 mm) | Clamp force: 910 N | Min pressure: 0.45 MPa | Speed: 50-300 mm/s | Magnet: standard magnet for auto switches | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCPV50 Pin direction: V vertical | Bore: 50 mm | Acting: D double (cylinder stroke 18 mm, clamp stroke 11 mm) | Reference heights: 60, 80, 85 mm | Guide pin: 229 (22.9 mm) or 249 (24.9 mm) | Clamp force: 825 N at 0.5 MPa | Min pressure: 0.10 MPa | Speed: 50-500 mm/s | Magnet: strong magnet | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCPV63 Pin direction: V vertical | Bore: 63 mm | Acting: D double (cylinder stroke 18 mm, clamp stroke 11 mm, heights 60, 75, 85 mm, clamp force 1400 N at 0.5 MPa) or S single (cylinder stroke 11 mm, clamp stroke 7 mm, heights 25, 35, 60, 75, 85 mm, clamp force 910 N) | Guide pin: 229 or 249 | Speed: 50-500 mm/s (double) / 50-300 mm/s (single) | Magnet: strong magnet | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
NPCPH63 Pin direction: H horizontal | Bore: 63 mm | Acting: S single (cylinder stroke 11 mm, clamp stroke 7 mm) | Reference heights: 60, 75, 85 mm | Guide pin: 229 (22.9 mm) | Clamp force: 910 N | Min pressure: 0.45 MPa | Speed: 50-300 mm/s | Magnet: strong magnet | Max pressure: 1.0 MPa | Proof pressure: 1.5 MPa | Mounting: 4 x M10x1.5 taps | Cushion: none | Options: C anti-spatter scraper (vertical only), auto switches W2P/P74RL
