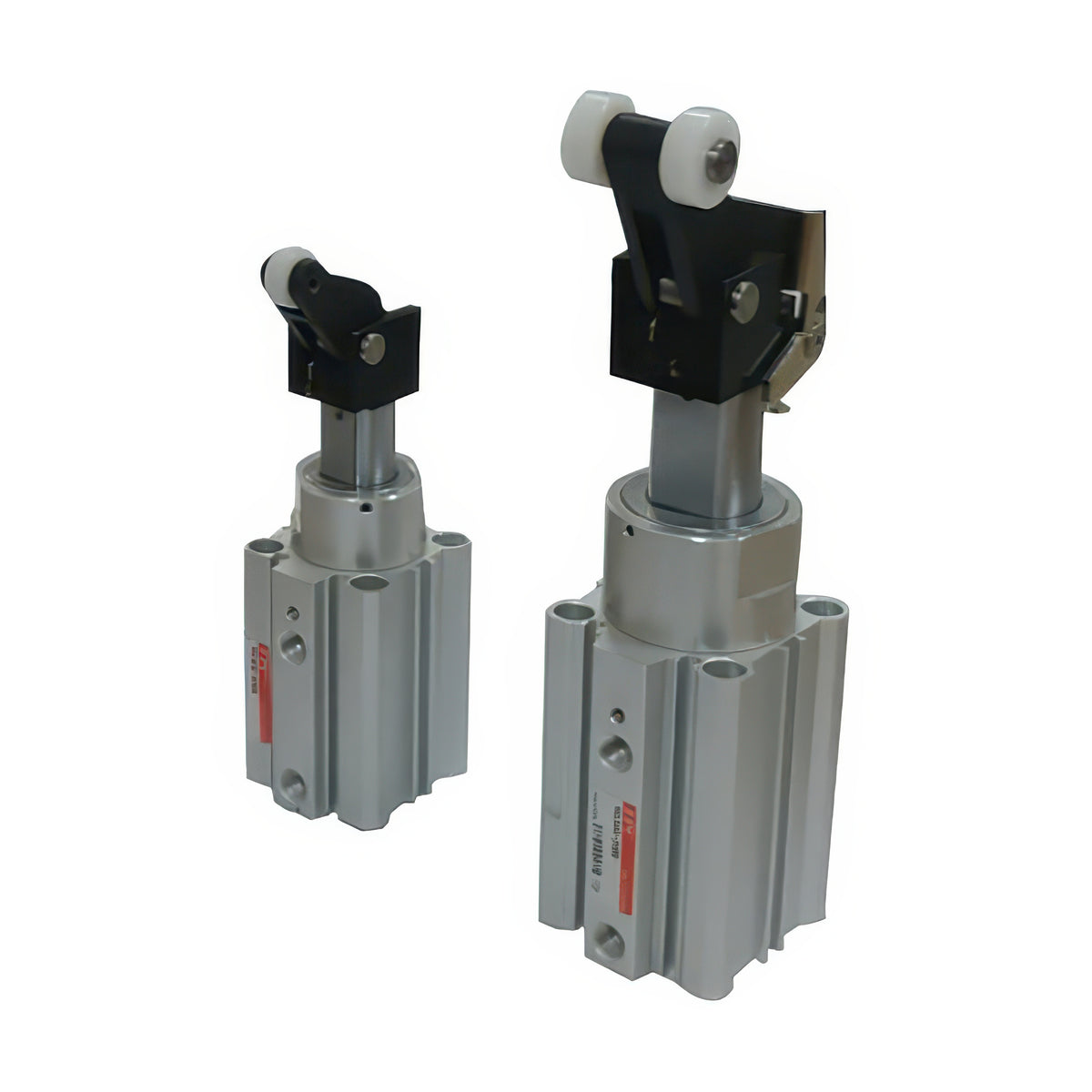

TPC Mechatronics NSL Series Light Stopper Cylinder (Bore 32/40 mm)

The NSL series is a lightweight stopper cylinder for conveyor pallet stopping in 32 and 40 mm bores.

Key features

Rod-end styles include round bar, roller, fixed lever and energy-absorption adjustable lever, with an optional lever lock mechanism
A replaceable built-in shock absorber eases maintenance, and wear rings improve reliability
It is available as single acting, double acting or double acting with spring return, and compact auto switches can be mounted
Maximum operating pressure is 1.0 MPa with rubber cushion and through-hole or double-end tapped mounting

NSLB32-10		Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 10 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x60L
NSLB32-15		Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 15 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x65L
NSLB32-20		Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 20 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x70L
NSLB40-20		Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 20 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x75L
NSLB40-25		Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 25 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x80L
NSLB40-30		Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 30 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x85L
CQ-M5x60L		Type: Through-hole mounting bolt \| For: NSLB32-10
CQ-M5x65L		Type: Through-hole mounting bolt \| For: NSLB32-15
CQ-M5x70L		Type: Through-hole mounting bolt \| For: NSLB32-20
CQ-M5x75L		Type: Through-hole mounting bolt \| For: NSLB40-20
CQ-M5x80L		Type: Through-hole mounting bolt \| For: NSLB40-25
CQ-M5x85L		Type: Through-hole mounting bolt \| For: NSLB40-30
SC1008		Type: Shock absorber (spare part) \| For: NSL 32 mm bore lever types
SC1407		Type: Shock absorber (spare part) \| For: NSL 40 mm bore lever types
NSL32D-PS		Type: Packing set (piston packing, O-ring, rod packing) \| For: NSL 32 mm bore
NSL40D-PS		Type: Packing set (piston packing, O-ring, rod packing) \| For: NSL 40 mm bore

Pneumatic CylindersTPC Mechatronics

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NSL Series Light Stopper Cylinder (Bore 32/40 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (16)

NSLB32-10, NSLB32-15, NSLB32-20, NSLB40-20, NSLB40-25, NSLB40-30, CQ-M5x60L, CQ-M5x65L, CQ-M5x70L, CQ-M5x75L + 6 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

	Product code	Spec
	NSLB32-10	Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 10 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x60L
	NSLB32-15	Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 15 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x65L
	NSLB32-20	Bore: 32 mm \| Rod dia: 20 mm \| Stroke: 20 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x70L
	NSLB40-20	Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 20 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x75L
	NSLB40-25	Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 25 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x80L
	NSLB40-30	Bore: 40 mm \| Rod dia: 25 mm \| Stroke: 30 mm \| Acting: Single acting retract, double acting, double acting with spring return \| Proof pressure: 1.5 MPa \| Max. pressure: 1.0 MPa \| Cushion: Rubber \| Mounting: Through hole \| Mounting bolt: CQ-M5x85L
	CQ-M5x60L	Type: Through-hole mounting bolt \| For: NSLB32-10
	CQ-M5x65L	Type: Through-hole mounting bolt \| For: NSLB32-15
	CQ-M5x70L	Type: Through-hole mounting bolt \| For: NSLB32-20
	CQ-M5x75L	Type: Through-hole mounting bolt \| For: NSLB40-20
	CQ-M5x80L	Type: Through-hole mounting bolt \| For: NSLB40-25
	CQ-M5x85L	Type: Through-hole mounting bolt \| For: NSLB40-30
	SC1008	Type: Shock absorber (spare part) \| For: NSL 32 mm bore lever types
	SC1407	Type: Shock absorber (spare part) \| For: NSL 40 mm bore lever types
	NSL32D-PS	Type: Packing set (piston packing, O-ring, rod packing) \| For: NSL 32 mm bore
	NSL40D-PS	Type: Packing set (piston packing, O-ring, rod packing) \| For: NSL 40 mm bore
